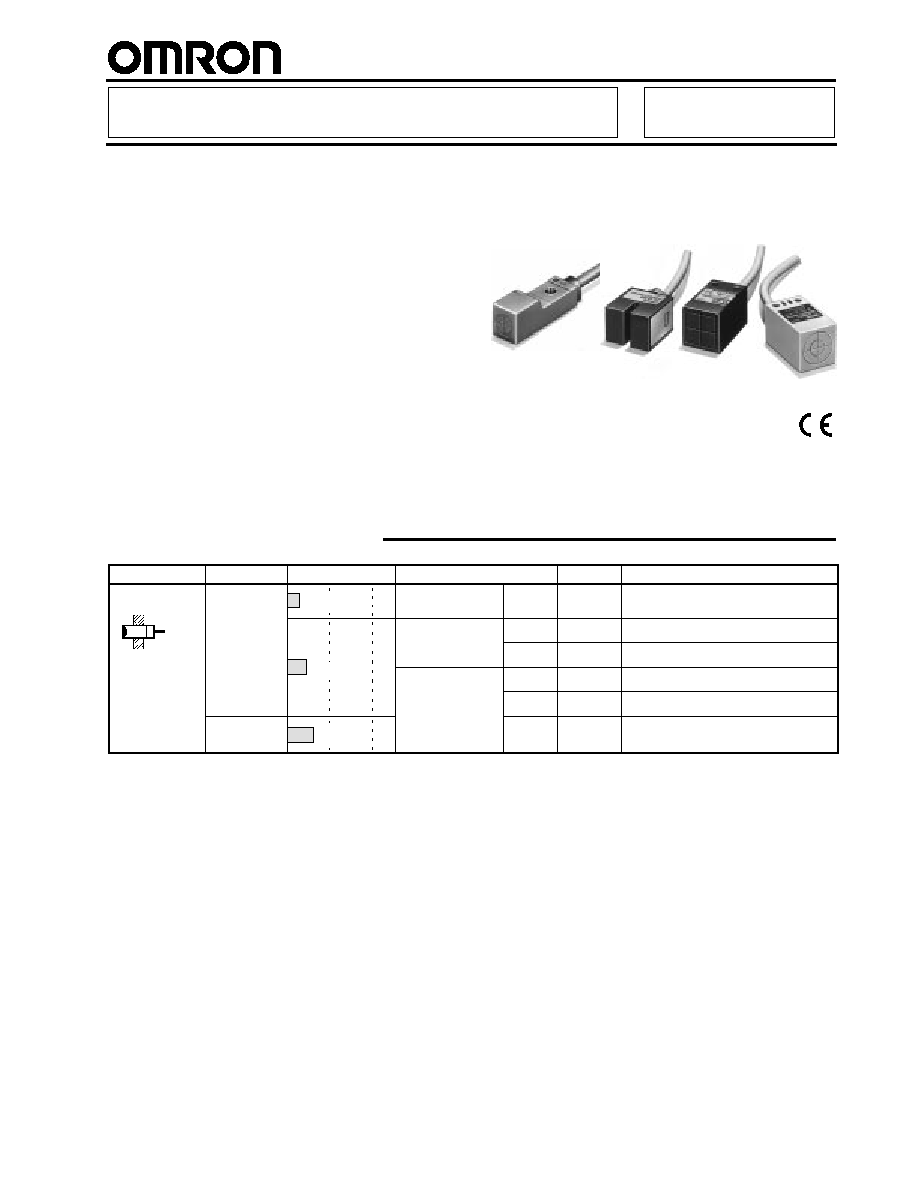

R

Compact Rectangular Inductive Prox

TL-Q/TL-G

Miniature DC Proximity Sensor

Mounts in Small Spaces

miniature control installations

high-speed pulse generation for

revolution counting

control devices

Ordering Information

Type

Shape

Sensing distance

Output

Approval

Part Number

Unshielded

Rectangular

2 mm

DC 3-wire

NO

CE

TL-Q2MC1 (See Note 1.)

DC 2-wire

NO

CE

TL-Q5MD1 (See Note 1.)

5mm

NC

CE

TL-Q5MD2 (See Note 1.)

5 mm

DC 3-wire

NO

CE

TL-Q5MC1 (See Note 2.)

NC

CE

TL-Q5MC2 (See Note 2.)

Grooved

7.5 mm

NO

---

TL-G3D-3

Note: 1. To avoid mutual interference, this sensor can be ordered with a different oscillating frequency. Add a “5” to the end of the part

number (e.g., TL-Q5MD15).

2. For applications on flexing and reciprocating equipment, this sensor can be ordered with robotic cable. Add an “R” to the end of

the part number (e.g., TL-Q5MC1-R).
