Data Sheet

ADM7151

Rev. B | Page 13 of 24

CH1 500mA Ω BW CH2 10mV BW M4µs

A CH1

200mA

T 11.0%

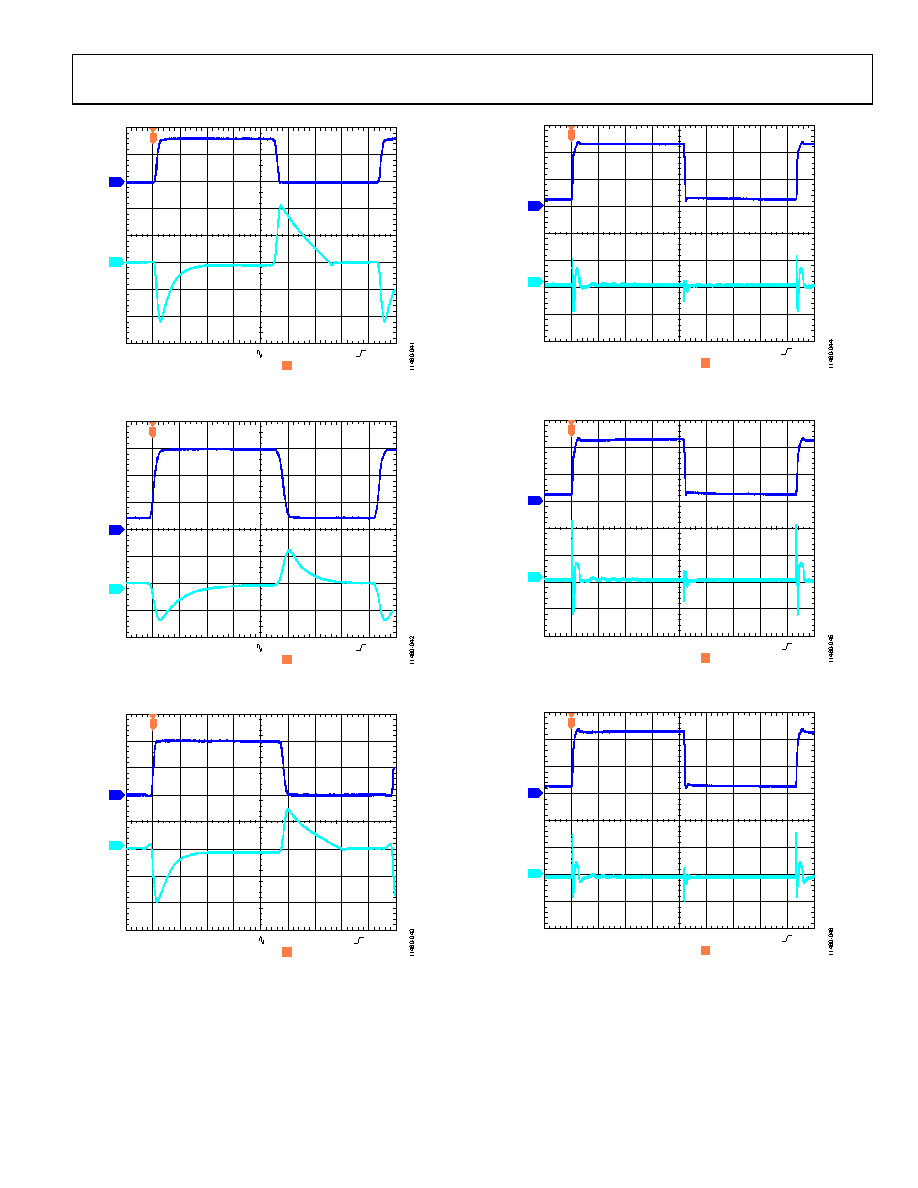

Figure 41. Load Transient Response, ILOAD = 10 mA to 800 mA,

VOUT = 5 V, VIN = 6.2 V, CH1 = IOUT, CH2 = VOUT

CH1 200mA Ω BW CH2 10mV BW M2µs

A CH1

460mA

T 11.0%

Figure 42. Load Transient Response, ILOAD = 100 mA to 600 mA,

VOUT = 5 V, VIN = 6.2 V, CH1 = IOUT, CH2 = VOUT

CH1 50.0mA Ω BW CH2 2.0mV BW M4µs

A CH1

50.0mA

T 10.0%

Figure 43. Load Transient Response, ILOAD = 1 mA to 100 mA,

VOUT = 5 V, VIN = 6.2 V, CH1 = IOUT, CH2 = VOUT

CH1 1.0V BW

CH2 2.0mV Ω BW

M10µs

A CH1

1.14V

T 10.0%

Figure 44. Line Transient Response, 2 V Input Step, ILOAD = 800 mA,

VOUT = 1.8 V, VIN = 4.5 V, CH1 = VIN, CH2 = VOUT

CH1 1.0V BW

CH2 2.0mV Ω BW

M10µs

A CH3

1.14V

T 10.0%

Figure 45. Line Transient Response, 2 V Input Step, ILOAD = 800 mA,

VOUT = 3.3 V, VIN = 4.5 V, CH1 = VIN, CH2 = VOUT

CH1 1.0V BW

CH2 2.0mV Ω BW

M10µs

A CH3

1.14V

T 10.0%

Figure 46. Line Transient Response, 2 V Input Step, ILOAD = 800 mA,

VOUT = 5 V, VIN = 6.2 V, CH1 = VIN, CH2 = VOUT
