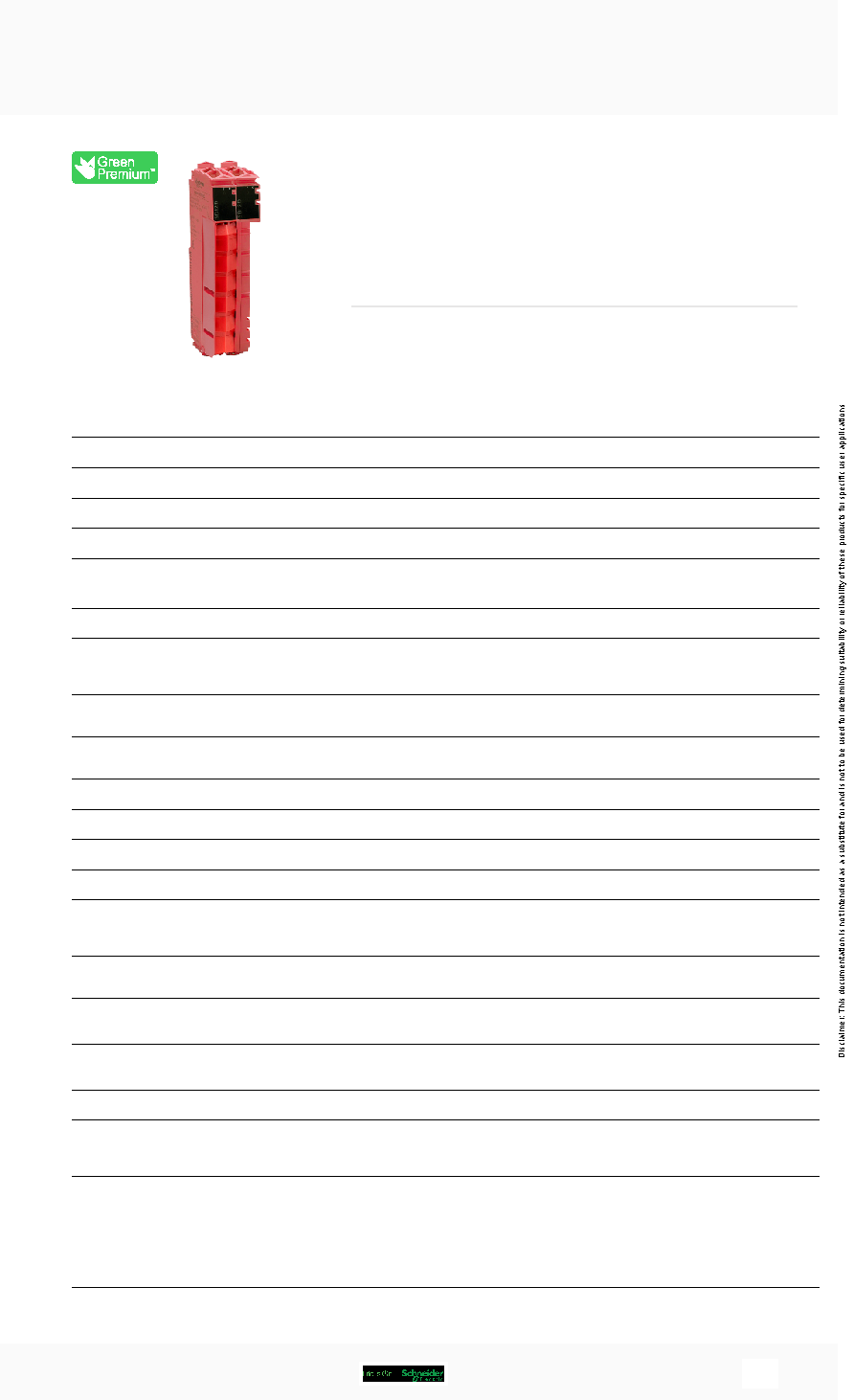

Product data sheet

Specifications

Discrete output module, Modicon

TM5, relay 2O, 24V DC/230 V AC, 6

A, relay, 2 NO

TM5SDO2DTRFS

Main

Range of product

Modicon TM5

Product or component type

Discrete output module

Discrete output number

2

Discrete output type

Relay

Complementary

Range compatibility

PacDrive LMC motion controller

Product compatibility

PacDrive LMC Pro 2

PacDrive LMC Pro

PacDrive LMC Eco

Output voltage

24 V DC

230 V AC

Output voltage limits

5...230 V AC

5...24 V DC

Discrete output function

2 NO

Current per channel

6 A

Colour

Red

Response time

<= 50 ms

Protection type

Reverse polarity protection

Without short-circuit protection

Without overload protection

Isolation

No insulation between channels

500 Vrms AC insulation between channel and bus

Maximum power consumption in

W

1.15 W for internal

0.26 W for bus

Maximum power dissipation in

W

2.3 W

Marking

CE

Safety level

SIL 3 conforming to IEC 61508

SIL 3 conforming to IEC 62061

PL = e conforming to EN 13849-1

Safety reliability data

MTTFd > 100 years

PFD < 1E-5

PFH < 1E-9

B10d = 780000 utilisation category DC-1, 24 V, <6 A

B10d = 780000 utilisation category AC-1, 230 V, <6 A

B10d = 1960000 utilisation category AC-15, 230 V, <3 A

B10d = 780000 utilisation category DC-15, 24 V, <5 A

Apr 8, 2022

1
