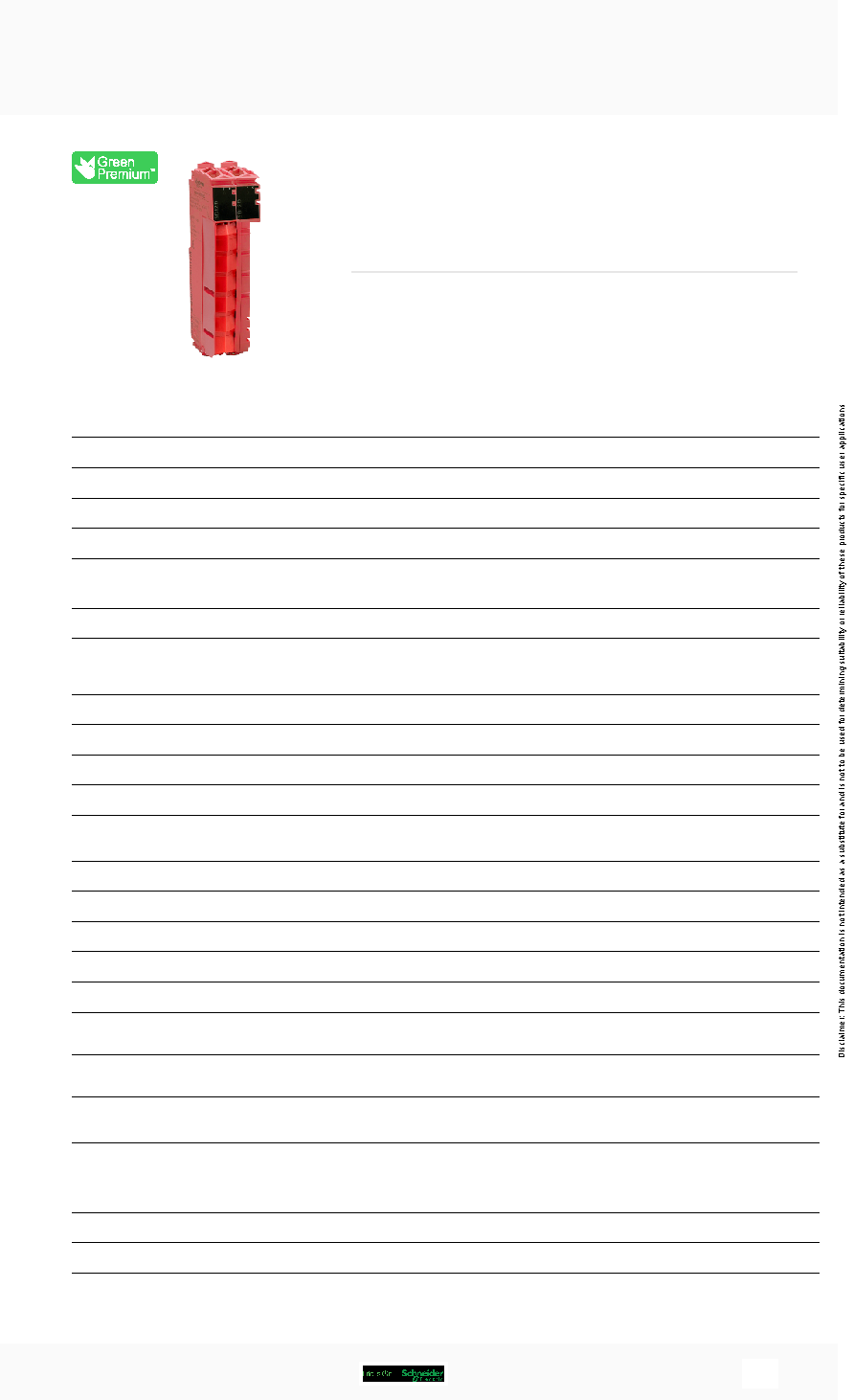

Product data sheet
Specifications
Safety dc discrete output module,
Modicon TM5, digital 2O, 24V 0,5 A
TM5SDO2TFS
Main
Range of product
Modicon TM5
Product or component type
Safety dc discrete output module
Discrete output number
2
Discrete output type
Solid state
Complementary
Range compatibility
PacDrive LMC motion controller
Product compatibility
PacDrive LMC Pro 2
PacDrive LMC Pro
PacDrive LMC Eco
Output voltage
24 V DC
Output voltage limits
20.4...28.8 V
Discrete output logic
Source
Current per channel
0.5 A
Maximum current per output
common
1 A
Colour
Red
Peak output current
12 A
Switching frequency
<= 500 Hz resistive load
[Ures] residual voltage
120 mV without OSSD
Maximum leakage current
10 µA when switched off
Protection type
Short-circuit protection
Overload protection
Isolation
500 Vrms AC insulation between channel and bus
No insulation between channels
Maximum power consumption in
W
0.25 W for bus
0.98 W for internal
Local signalling
1 LED green for power supply
1 LED red for power supply
2 LEDs red for safety status
2 LEDs red/orange for output status
Electrical connection
2 wires
Marking
CE
Safety level
SIL 3 conforming to IEC 61508
SIL 3 conforming to IEC 62061

Apr 8, 2022
1
