ADP172ACBZ-2.2-R7 Datasheet(PDF) 9 Page - Analog Devices

Part # ADP172ACBZ-2.2-R7
Description  300 mA, Low Quiescent Current, CMOS Linear Regulator
PDF  17 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADP172ACBZ-2.2-R7 Datasheet(HTML) 9 Page - Analog Devices

Back Button ADP172ACBZ-2.2-R7 Datasheet HTML 5Page - Analog Devices ADP172ACBZ-2.2-R7 Datasheet HTML 6Page - Analog Devices ADP172ACBZ-2.2-R7 Datasheet HTML 7Page - Analog Devices ADP172ACBZ-2.2-R7 Datasheet HTML 8Page - Analog Devices ADP172ACBZ-2.2-R7 Datasheet HTML 9Page - Analog Devices ADP172ACBZ-2.2-R7 Datasheet HTML 10Page - Analog Devices ADP172ACBZ-2.2-R7 Datasheet HTML 11Page - Analog Devices ADP172ACBZ-2.2-R7 Datasheet HTML 12Page - Analog Devices ADP172ACBZ-2.2-R7 Datasheet HTML 13Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 9 / 17 page
background image
Data Sheet
ADP172
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. F | 9 of 17

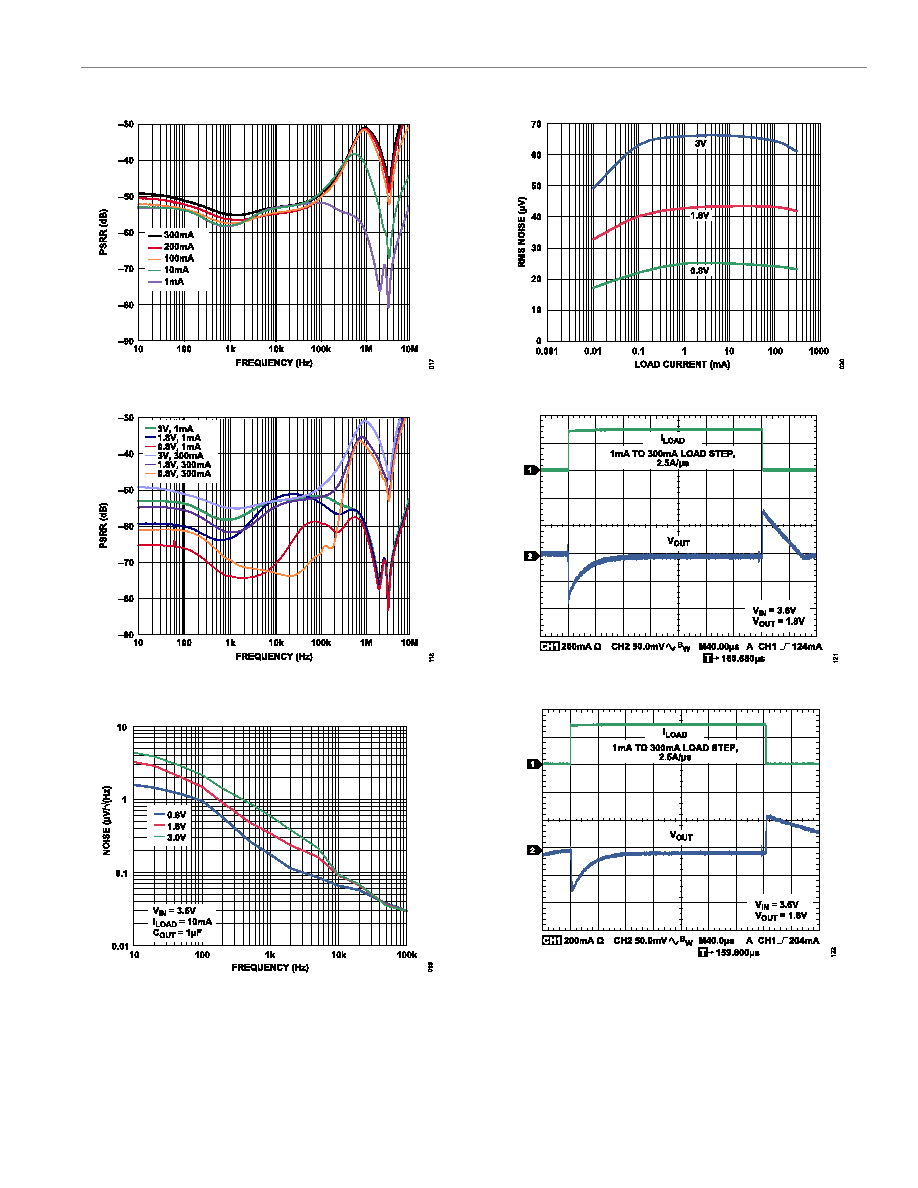

Figure 15. Power Supply Rejection Ratio vs. Frequency, VOUT = 3.0 V
Figure 16. Power Supply Rejection Ratio vs. Frequency, at Various Output
Voltages and Load Currents
Figure 17. Output Noise Spectrum
Figure 18. RMS Noise vs. Load Current and Output Voltage
Figure 19. Load Transient Response, CIN and COUT = 1 μF
Figure 20. Load Transient Response, CIN and COUT = 4.7 μF
