Data Sheet
AD8555
Rev. B | Page 13 of 29
FREQUENCY (kHz)
500
250
0
30
25
20
15
10
5
VS = ±2.5V
GAIN = 70
35

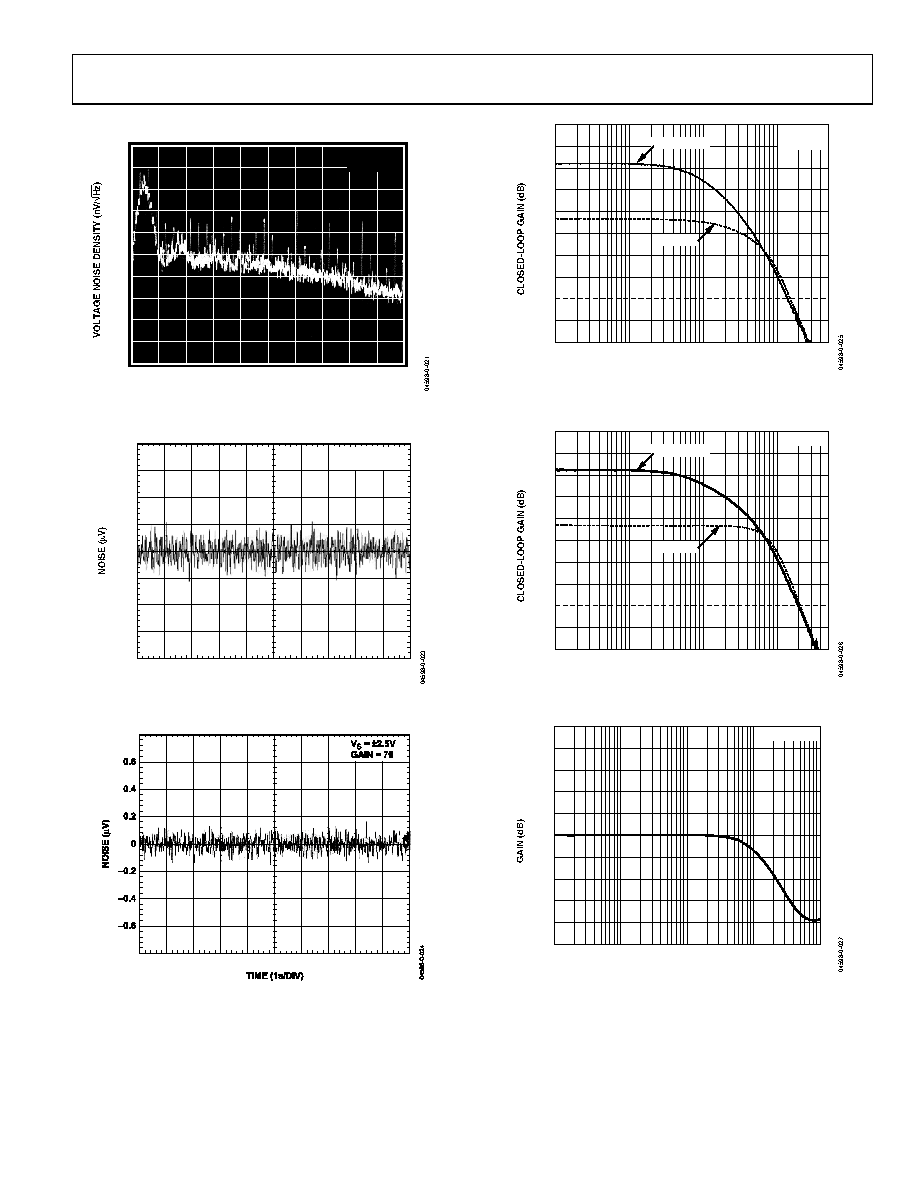

Figure 22. Input Voltage Noise Density vs. Frequency (0 Hz to 500 kHz)
TIME (1s/DIV)
0.6
0.4
0.2
0
–0.2
–0.4
–0.6
VS = ±2.5V
GAIN = 1000
Figure 23. Low Frequency Input Voltage Noise (0.1 Hz to 10 Hz)
Figure 24. Low Frequency Input Voltage Noise (0.1 Hz to 10 Hz)
FREQUENCY (Hz)
1k
100k
10k
1M
GAIN = 1280
GAIN = 70
VS = ±2.5V
CL = 40PF
60
40
20
0
Figure 25. Closed-Loop Gain vs. Frequency Measured at Filter Pin
FREQUENCY (Hz)
1k
100k
10k
1M
GAIN = 70
GAIN = 1280
VS = ±2.5V
60
40
20
0
Figure 26. Closed-Loop Gain vs. Frequency Measured at Output Pin
FREQUENCY (Hz)
1k
100k
10k
1M
10M
VS = ±2.5V
4
8
0
–4
–8
Figure 27. Output Buffer Gain vs. Frequency
