RSF / RSMF Series

General Purpose Metal Oxide Resistor

Stackpole Electronics, Inc.

Resistive Product Solutions

Waveform Transformation to Square Wave

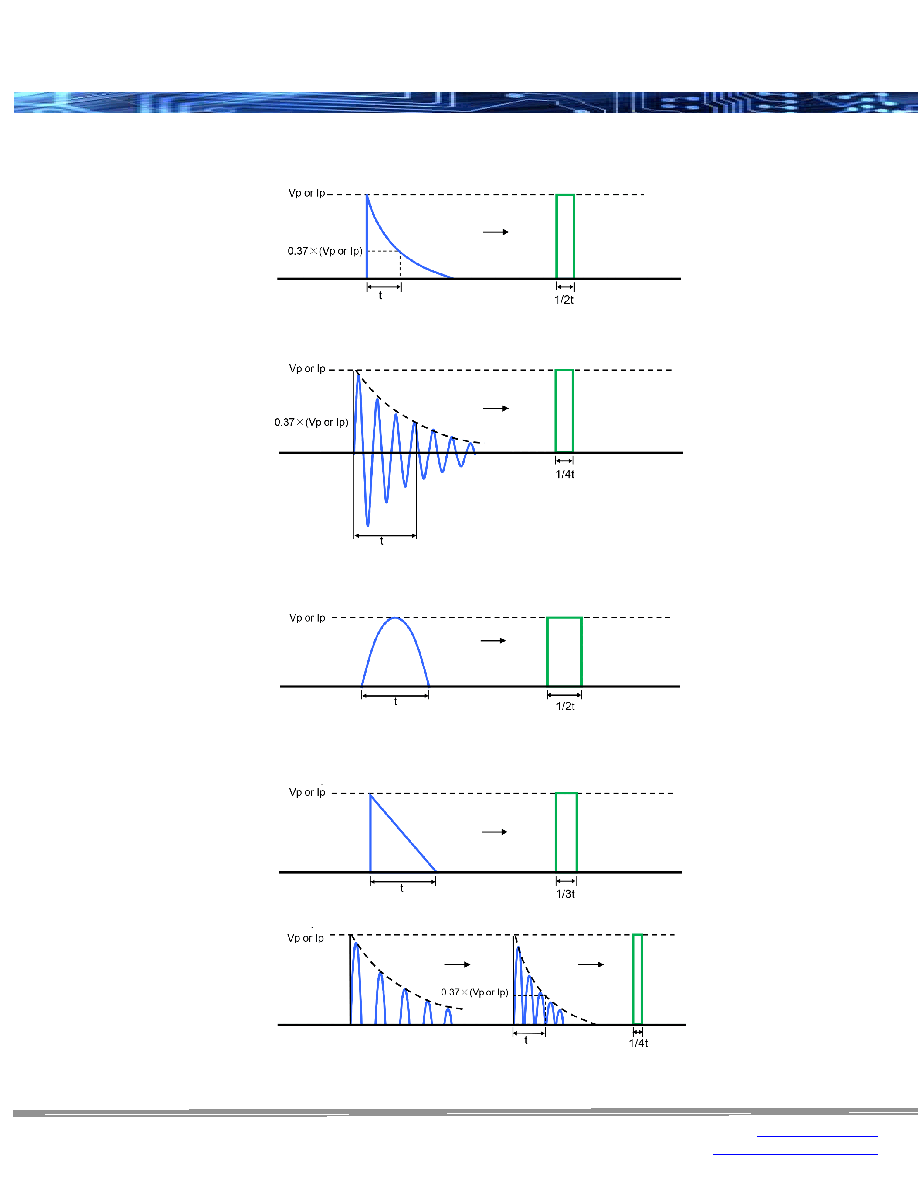

1.

Discharge curve wave with time constant “t” → Square wave

2.

Damping oscillation wave with time constant of envelope “t” → Square wave

3.

Half-wave rectification wave → Square wave

4.

Triangular wave

→ Square wave

5.

Special wave → Square wave
