325-059-520-101 datasheet(1/2 Pages) EDAC

Part #	325-059-520-101

Description	325 Series Card Edge Connector \| Green \| 0.100" (2.54mm) Pitch \| 0.300" (7.62mm) Row Spacing \| 0.600" (15.24mm) Insulator Height

PDF	2 Pages

Scroll/Zoom	100%

Manufacturer	EDAC [EDAC, All Rights Reserved.]

Direct Link	https://edac.net/

Logo

1 / 2 page

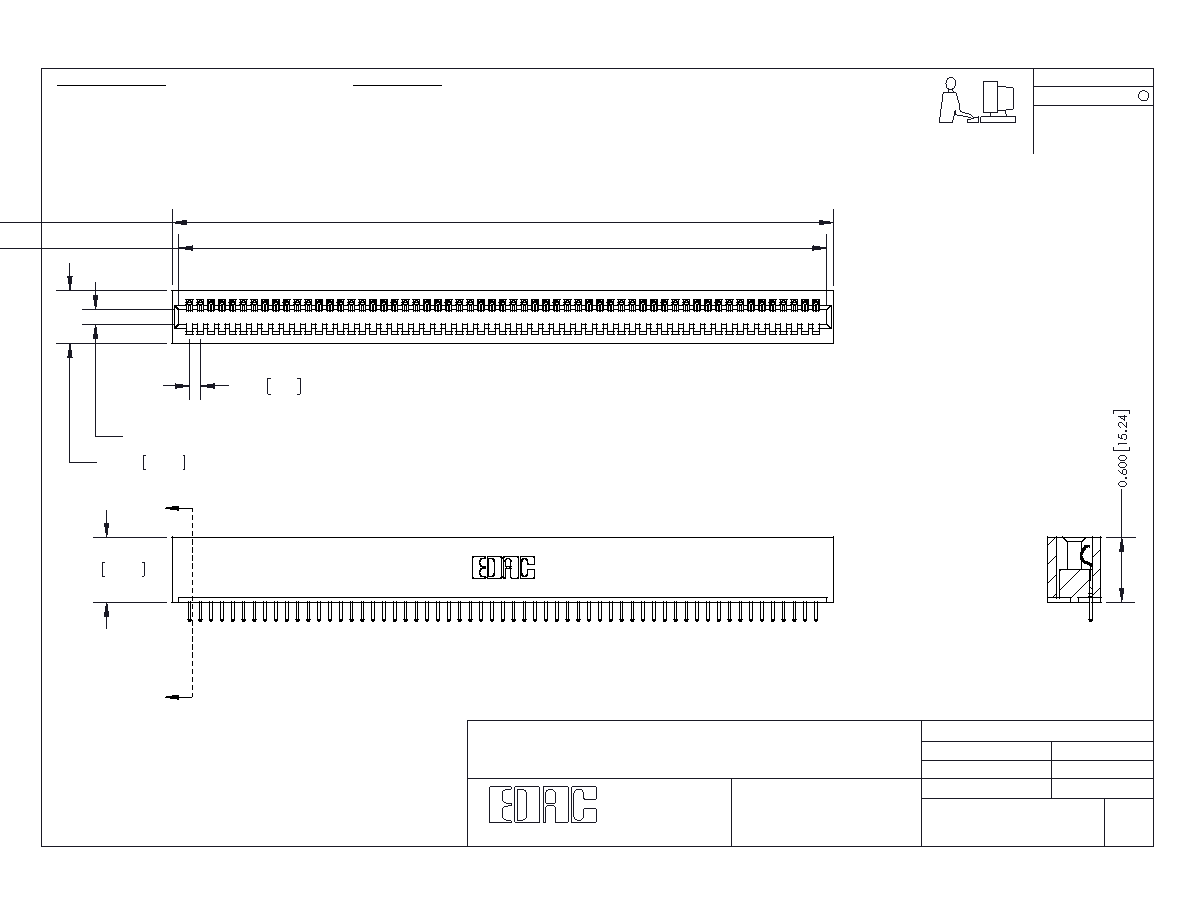

0.600 15.24

A

6.122 155.50

6.000 152.40

0.490 12.45

.054 [1.37] to .070 [1.78] Thick P.C. Board

Card Slot Accepts

0.100 2.54

SECTION A-A

ACAD REFERENCE NO.

TORONTO, ONTARIO

YOUR CONNECTION TO QUALITY & SERVICE

EDAC INC

CANADA

CHECKED:

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF EDAC INC.,AND

SHALL NOT BE REPRODUCED,OR COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

SCALE:

DRAWING NUMBER

DRAWN:

DATE:

ISSUE

SHEET

DATE:

ISSUE NUMBER

ORIGINAL

1

THIS IS A C.A.D. GENERATED DRAWING

DO NOT MAKE MANUAL REVISIONS TO MASTER.

325 Card Edge Connector

Part Number: 325-059-520-101

325 ENG MASTER

325 Assembly

1 OF 2

1

J.LEE

OCT. 06/09

NTS

Contact Detail

520-P.C. Tail .025 Sq.(0.64 Sq.) - Tail LG=.175(4.45)

Mounting Option

01-No Mounting Lugs

See Accompanying Page for:

Mounting Options

.100 [2.54] Contact Spacing x .300 [7.62] Row Spacing

Similar Part No. - 325-059-520-101
