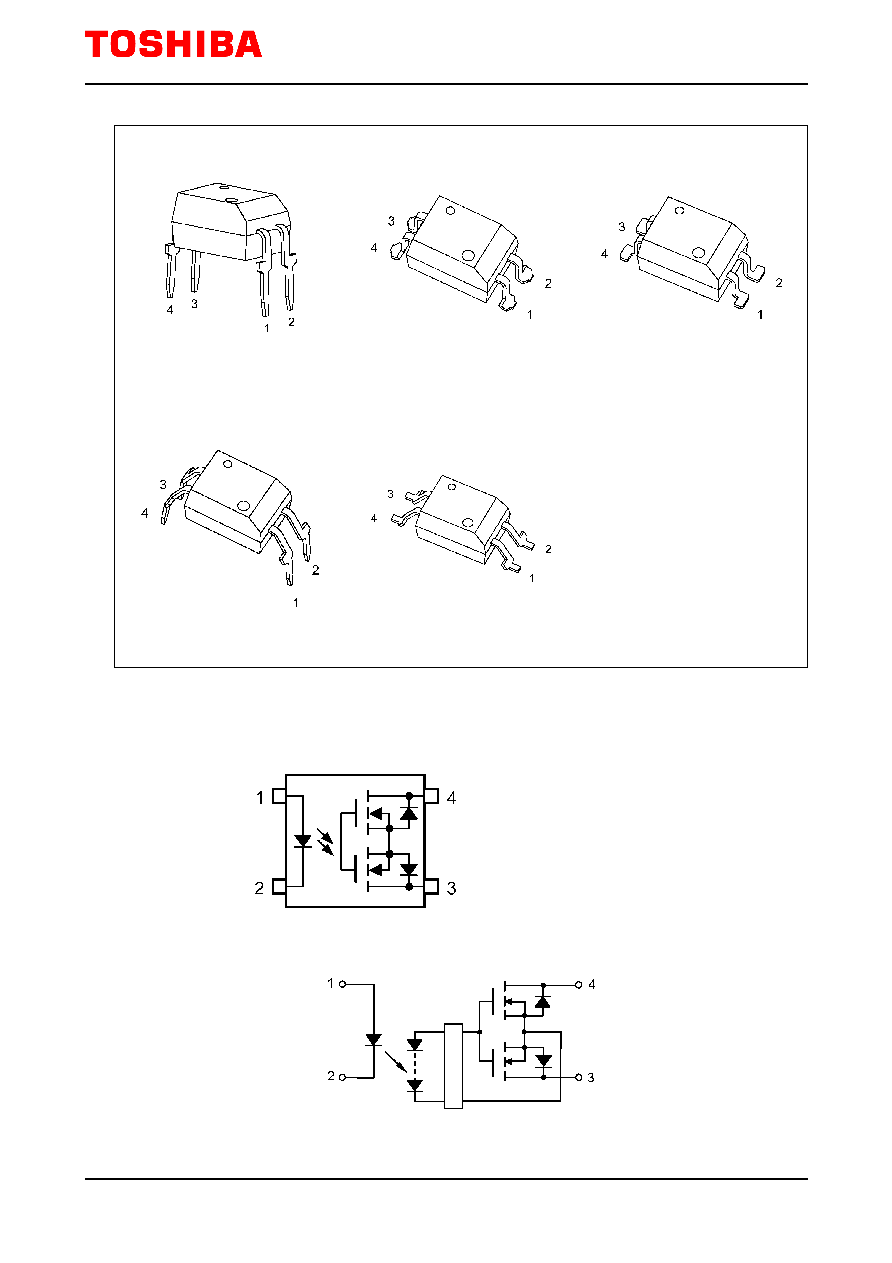

background image
TLP3553A,TLP3553AF
2
5.
5.
5.
5. Packaging (Note)
Packaging (Note)
Packaging (Note)
Packaging (Note)
TLP3553A
11-5B2S
TLP3553A(LF1,TP1)
11-5B201S
TLP3553A(LF5,TP5)
11-5B205S
TLP3553AF
11-5B202S
TLP3553AF(LF4,TP4)
11-5B204S
Note:
Through-hole type: TLP3553A, TLP3553AF
Lead forming option: (LF1), (LF4), (LF5)
Taping option: (TP1), (TP4), (TP5)
6.
6.
6.
6. Pin Assignment
Pin Assignment
Pin Assignment
Pin Assignment
1: Anode
2: Cathode
3: Drain
4: Drain
7.
7.
7.
7. Internal Circuit
Internal Circuit
Internal Circuit
Internal Circuit
Fig.
Fig.
Fig.
Fig. 7.1
7.1
7.1
7.1 Internal Circuit
Internal Circuit
Internal Circuit
Internal Circuit
2020-03-25
Rev.5.0
©2017-2020
Toshiba Electronic Devices & Storage Corporation
