500mV to 5.5V Input, Ultrasonic

Boost Converter with Short-Circuit

Protection and True Shutdown

MAX18002

www.analog.com

Analog Devices | 7

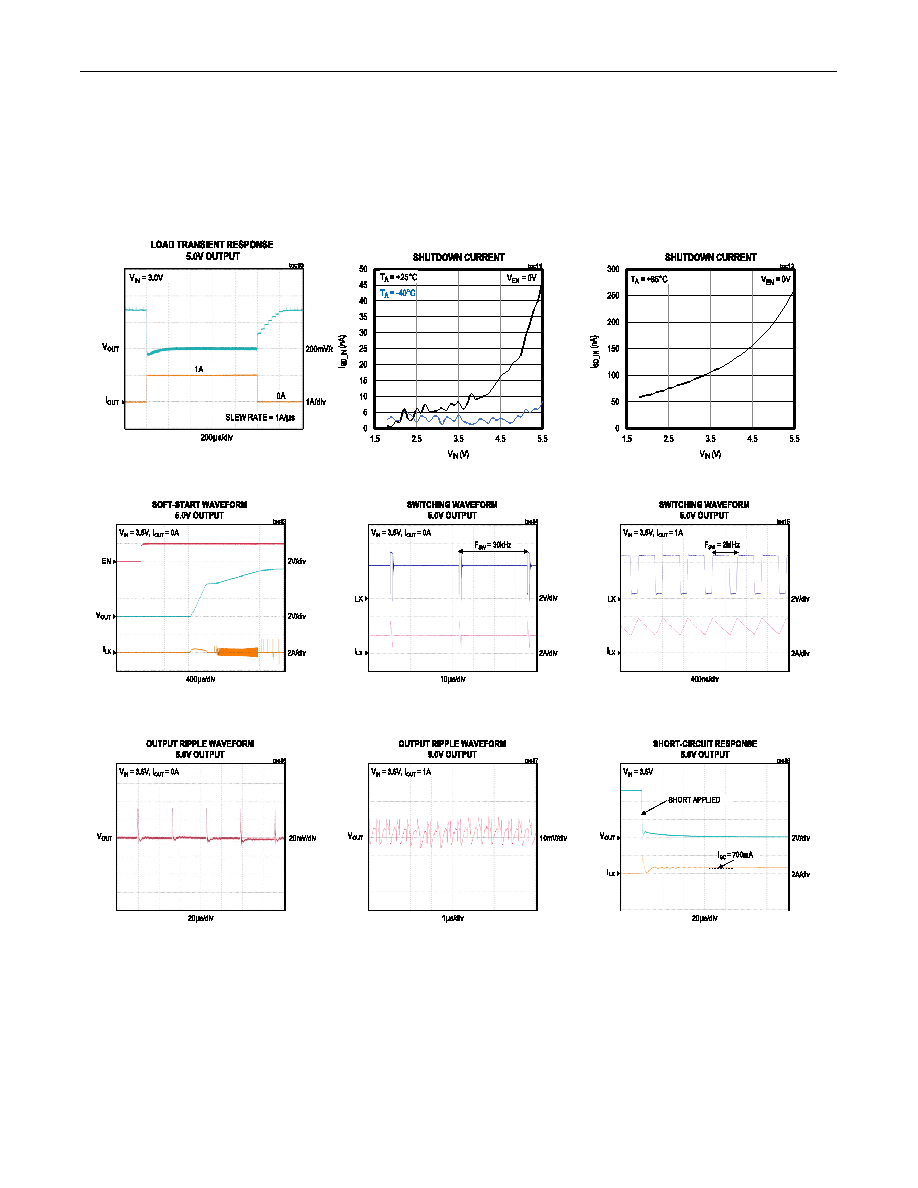

(VIN = 3.6V, VOUT = 5V, L = 470nH (DFE201612E-R47M for VOUT = 5V) and 330nH (DFE201612E-R33M for VOUT = 3.3V), COUT =

2 x 22µF (C1608X5R1A226M080AC), TA = +25̊C unless otherwise noted. Measurement limited by switching the current limit. Actual

maximum output current depends on system thermal performance.)
