STV5723/P Datasheet(PDF) 2 Page - STMicroelectronics

Part # STV5723/P
Description  3-HEAD PLAYBACK AND RECORD AMPLIFIER FOR VCR
PDF  6 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STV5723/P Datasheet(HTML) 2 Page - STMicroelectronics

  STV5723/P Datasheet HTML 1Page - STMicroelectronics STV5723/P Datasheet HTML 2Page - STMicroelectronics STV5723/P Datasheet HTML 3Page - STMicroelectronics STV5723/P Datasheet HTML 4Page - STMicroelectronics STV5723/P Datasheet HTML 5Page - STMicroelectronics STV5723/P Datasheet HTML 6Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 2 / 6 page
background image
AGC
12
3
4
56789
10
11
12
13
14
15
16
17
18
19
20
CSYNC
VCC
60dB
60dB
60dB
CSYNC

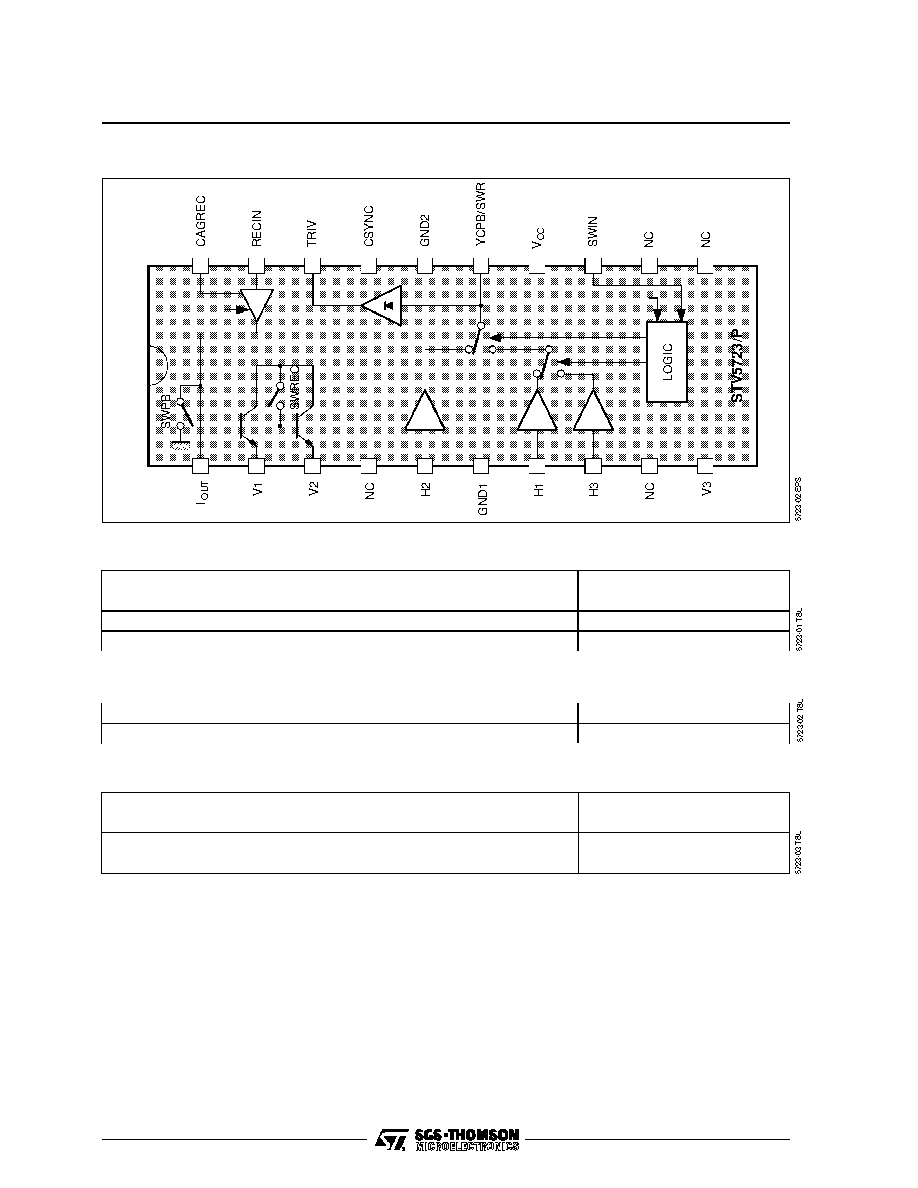

BLOCK DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Value
Unit
VCC
Power Supply Voltage
6
V
Tj
Junction Temperature
150
oC
Toper
Operating Temperature
0, +70
oC
THERMAL DATA
Symbol
Parameter
Value
Unit
Rth (j-a)
Junction-ambient Thermal Resistance
Max.
75
oC/W
RECOMMENDED OPERATING CHARACTERISTICS
Symbol
Parameter
Min.
Typ.
Max.
Unit
VCC
Power Supply
4.75
5
5.25
V
CAGC
Capacitance on Pin CAGCREC
4.7
nF
RECADJ
Record Biasing Resistor
10
33
k
Ω
STV5723/P
2/6



Html Pages

1 2 3 4 5 6


Datasheet Download

Go To PDF Page


Link URL
