Data Sheet

4

V2.1, 2006-10-17

BGF200

Microphone Filter and ESD Protection

Microphone Filter and ESD Protection

Feature

•

Microphone filter

•

Integrated ESD protection up to 15 kV

•

Low input impedance

•

More than 30 dB stopband attenuation

•

Ideal for GSM/UMTS

•

Wafer Level Package with SnAgCu-Bumps

WLP-8-1,- 2, -4

BGF200_Blockdiagram.vsd

B2 B3 C2

B1

C3

A3

C1

A2

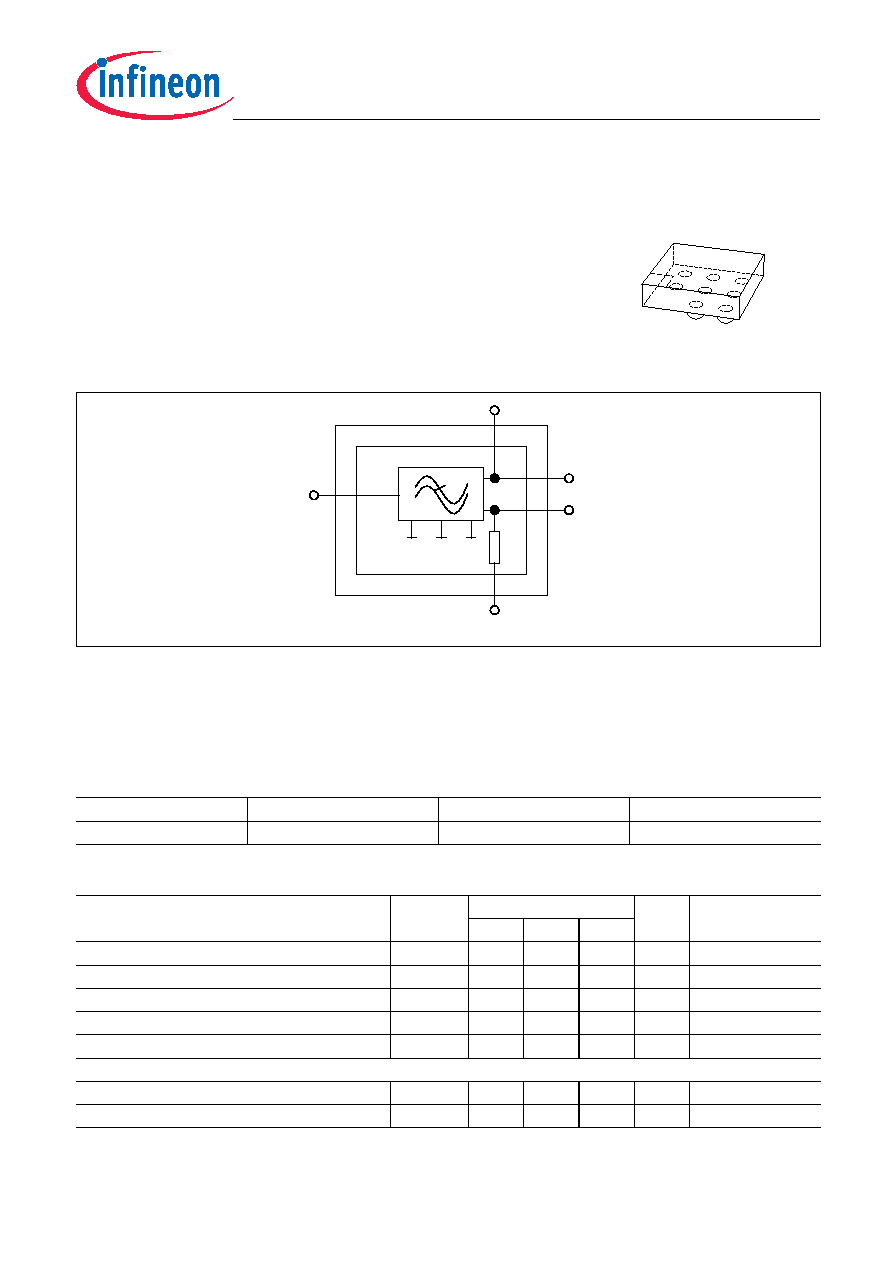

Figure 1

Blockdiagram

Description

The BGF200 is a microphone filter with low pass characteristic offering a very high stop band attenuation up to 6

GHz. All pins are protected against ESD. The wafer level package is a green package with a size of only 1.6 mm

x 1.6 mm and a total height of 0.65 mm.

Type

Package

Marking

Chip

BGF200

WLP-8-4

GF200

N0703

Table 1

Maximum Ratings

Parameter

Symbol

Values

Unit

Note /

Test Condition

Min.

Typ.

Max.

Voltage at pin A2 to GND

V

A2

0

4.0

V

Voltage at all other pins to GND

V

P

-14

14

V

Operating temperature range

T

OP

-40

+85

°C

Storage temperature range

T

STG

-65

+150

°C

Summed up input power for all pins

P

IN

25

mW

T

Between pins C3 and B3

V

E

-15

15

kV

Between all other pins

V

I

-2

2

kV

1) Contact discharge
