AD8336
Rev. 0 | Page 19 of 28
100Ω
301Ω
DMM
(+I)
DMM
(–I)
AD8336
4
5
11
8
1
12
PrA
+
–
10
13
9

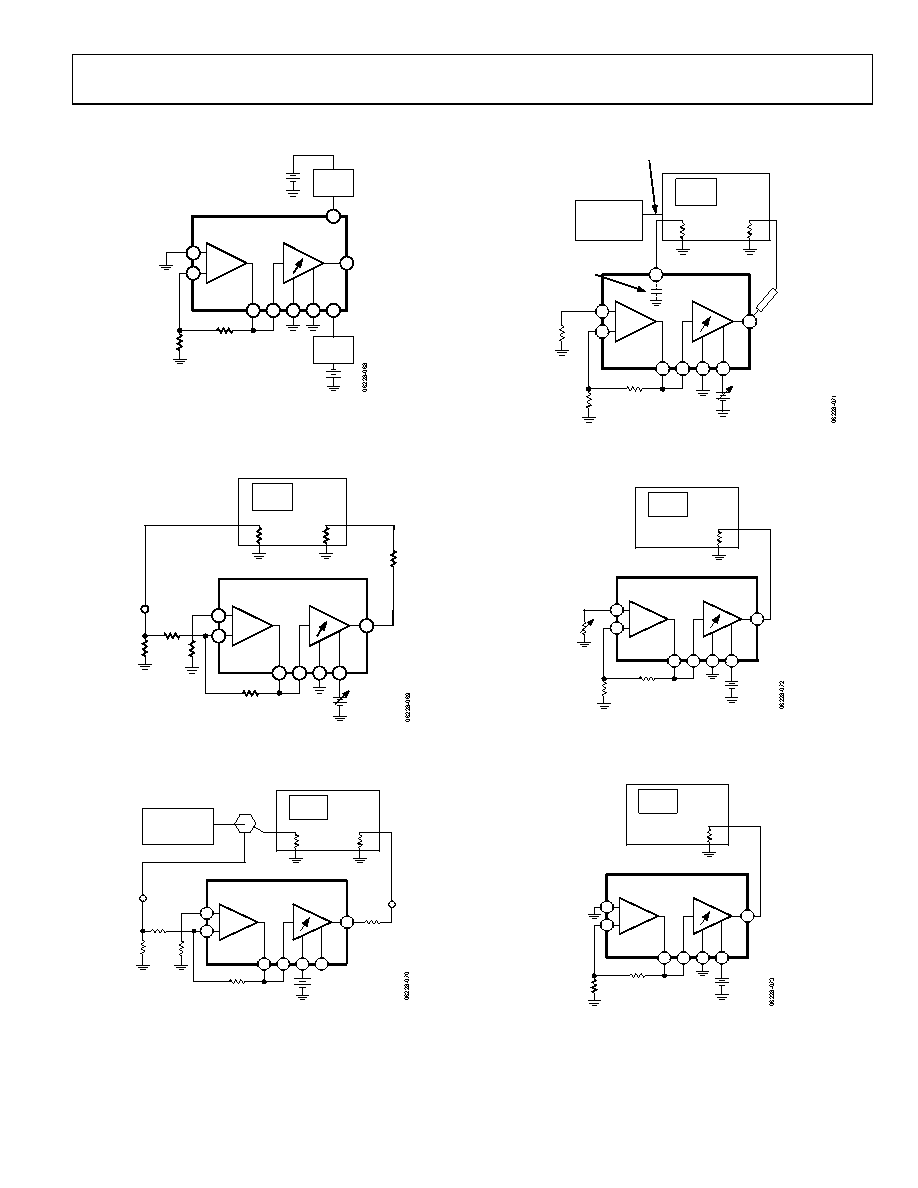

Figure 68. Supply Current
NETWORK ANALYZER
100Ω
301Ω
100Ω
50Ω
IN
OUT
453Ω
50Ω
VGAIN
AD8336
4
11
8
1
12
PrA
+
–
9
5
49.9Ω
Figure 69. Frequency Response, Inverting Gain
OSCILLOSCOPE
100Ω
301Ω
CH2
50Ω
OUT
50Ω
CH1
PULSE
GENERATOR
100Ω
453Ω
0.7V
POWER
SPLITTER
AD8336
4
5
11
8
1
12
PrA
+
–
9
49.9Ω
Figure 70. Pulse Response, Inverting Gain
VGAIN
NETWORK ANALYZER
100Ω
301Ω
49.9Ω
50Ω
IN
OUT
BYPASS
CAPACITORS
REMOVED FOR
MEASUREMENT
50Ω
DIFFERENTIAL
FET PROBE
BENCH
POWER SUPPLY
VPOS OR VNEG
POWER SUPPLIES
CONNECTED TO
NETWORK ANALYZER
BIAS PORT
AD8336
4
5
11
8
1
12
PrA
+
–
9
Figure 71. Power Supply Rejection Ratio
SPECTRUM ANALYZER
100Ω
301Ω
0.7V
IN
50Ω
AD8336
4
5
11
8
1
12
PrA
+
–
9
Figure 72. Input Referred Noise vs. Source Resistance
SPECTRUM ANALYZER
100Ω
301Ω
0.7V
IN
50Ω
AD8336
4
5
11
8
1
12
PrA
+
–
9
Figure 73. Short-Circuit Input Noise vs. Frequency
