Production Data
WM8152
w
PD Rev 4.2 April 2007
3

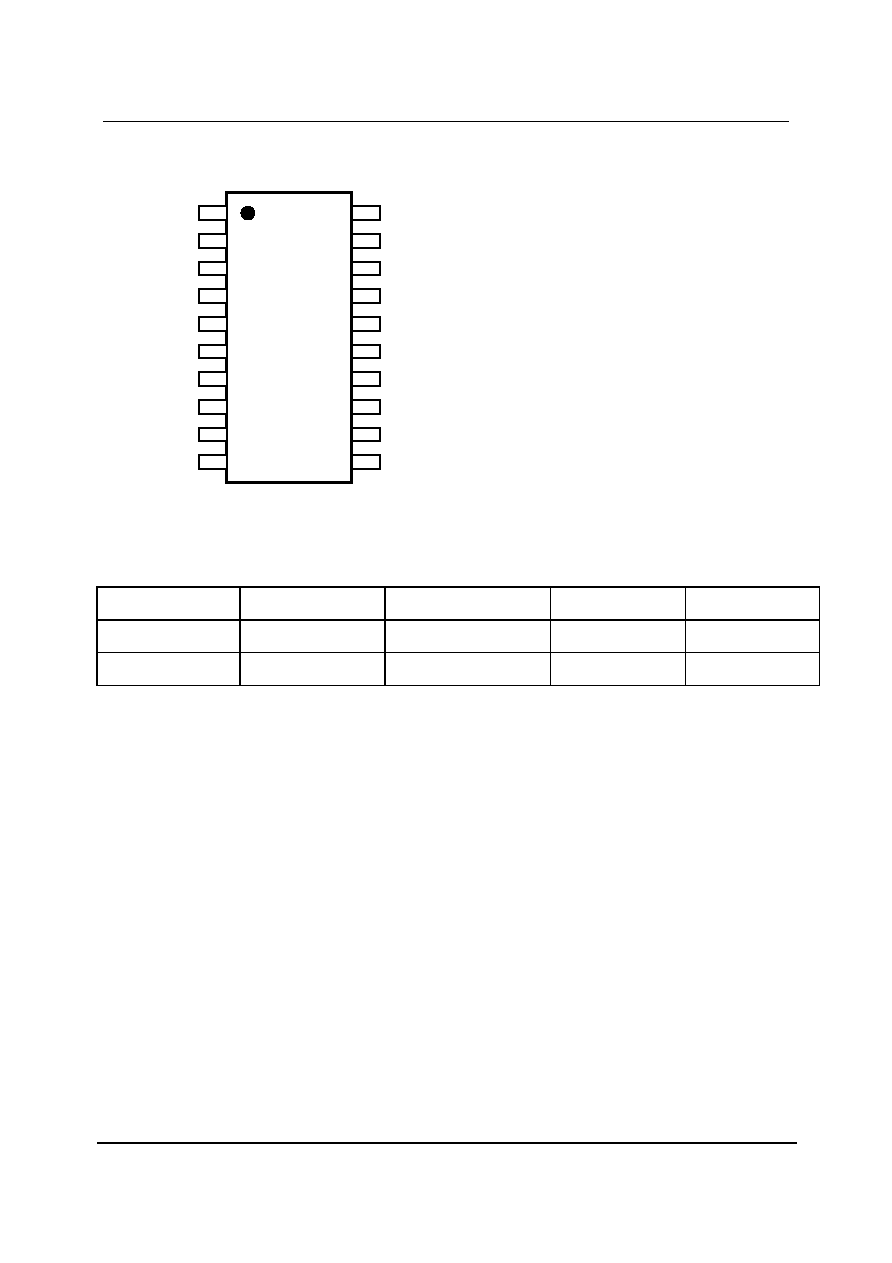

PIN CONFIGURATION
WM8152
1VINP
2
3
4
5
6
7
8
10
9
20
19
18
17
16
15
14
13
11
12
DVDD1
VSMP
MCLK
DGND
SEN
DVDD2
SDI
SCK
OP[0]
AGND2
VRLC/VBIAS
VRX
VRT
VRB
AGND1
AVDD
OP[3]/SDO
OP[1]
OP[2]
ORDERING INFORMATION
DEVICE
TEMPERATURE
RANGE
PACKAGE
MOISTURE
SENSITIVITY LEVEL
PEAK SOLDERING
TEMPERATURE
WM8152SCDS
0 to 70
oC
20-lead SSOP
(Pb free)
MSL1
260
oC
WM8152SCDS/R
0 to 70
oC
20-lead SSOP
(Pb free, tape and reel)
MSL1
260
oC
Note:
Reel quantity = 2,000
