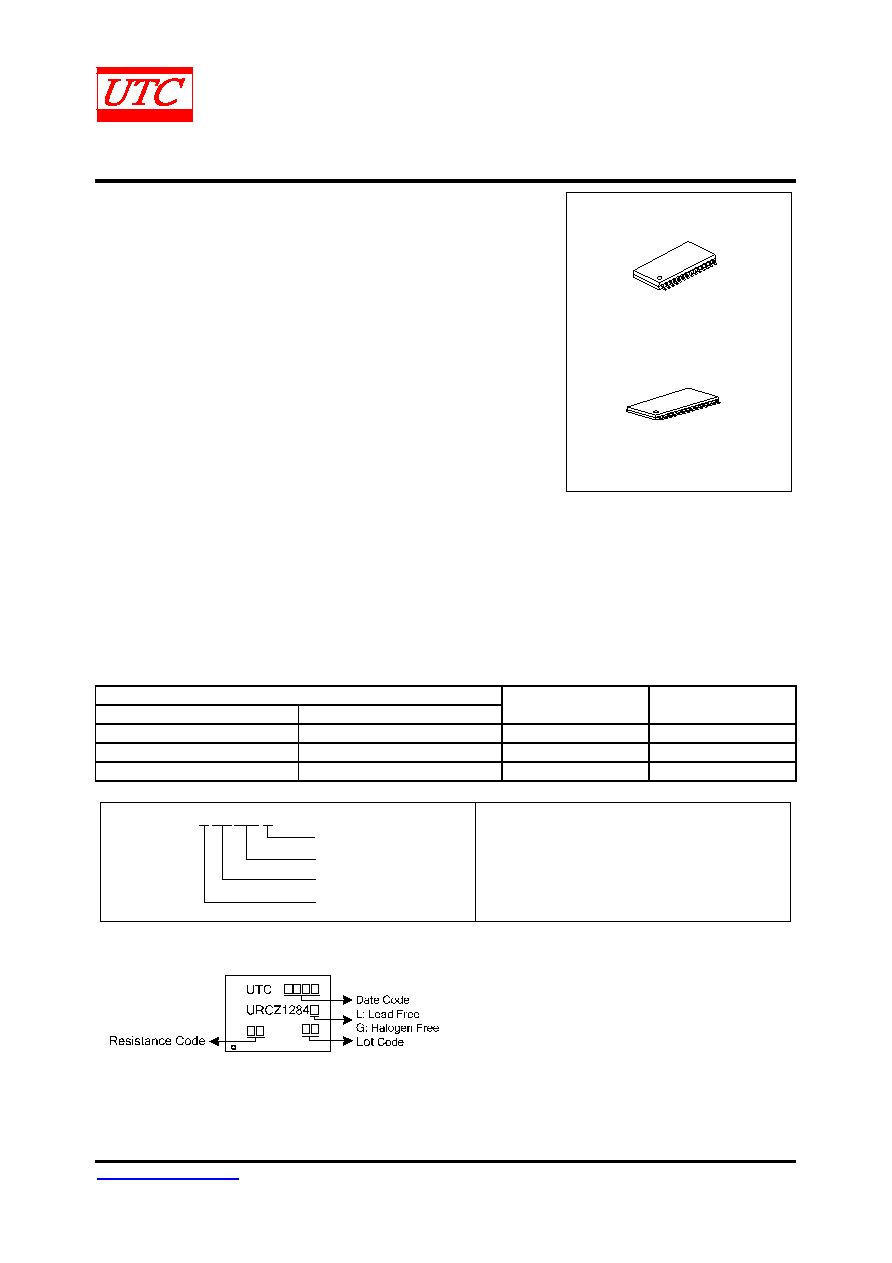

UNISONIC TECHNOLOGIES CO., LTD

URCZ1284-XX

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 6

Copyright © 2021 Unisonic Technologies Co., Ltd

QW-R127-001.E

PARALLEL PORT SINGLE

TERMINATION NETWORK

WITH ±15KV ESD

PROTECTION



DESCRIPTION

The UTC URCZ1284-XX is a high-speed parallel port single

termination .Here is two basic cells in the integrated termination,

Cell 1 and Cell 2(See Fig1 &Fig 2). The UTC URCZ1284-XX

contains the proper termination for 8 data lines, 1 strobe line, 4

control lines and 4 statut lines; The UTC URCZ1284-XX has an

extra protection against ESD.

The UTC URCZ1284-XX is ideally suitable for Notebooks, PC

Peripherals, Servers and Desktops, etc.



FEATURES

* Highly integrated termination

* EMI noise filtering

* RFI noise filtering

* Withstand ±8 kV contact-discharge

SSOP-28

QSOP-28



ORDERING INFORMATION

Ordering Number

Package

Packing

Lead Free

Halogen Free

URCZ1284L-XX- R28-R

URCZ1284G-XX-R28-R

SSOP-28

Tape Reel

URCZ1284L-XX-SQ8-T

URCZ1284G-XX-SQ8-T

QSOP-28

Tube

URCZ1284L-XX- SQ8-R

URCZ1284G-XX-SQ8-R

QSOP-28

Tape & Reel

URCZ1284G-XX-R28-R

(1) Packing Type

(2) Package Type

(3) Resistance Code

(4) Green Package

(1) R: Tape Reel, T: Tube

(2) R28: SSOP-28, SQ8: QSOP-28

(3) Code: 01, 02, 03

(4) G: Halogen Free and Lead Free, L: Lead Free



MARKING
