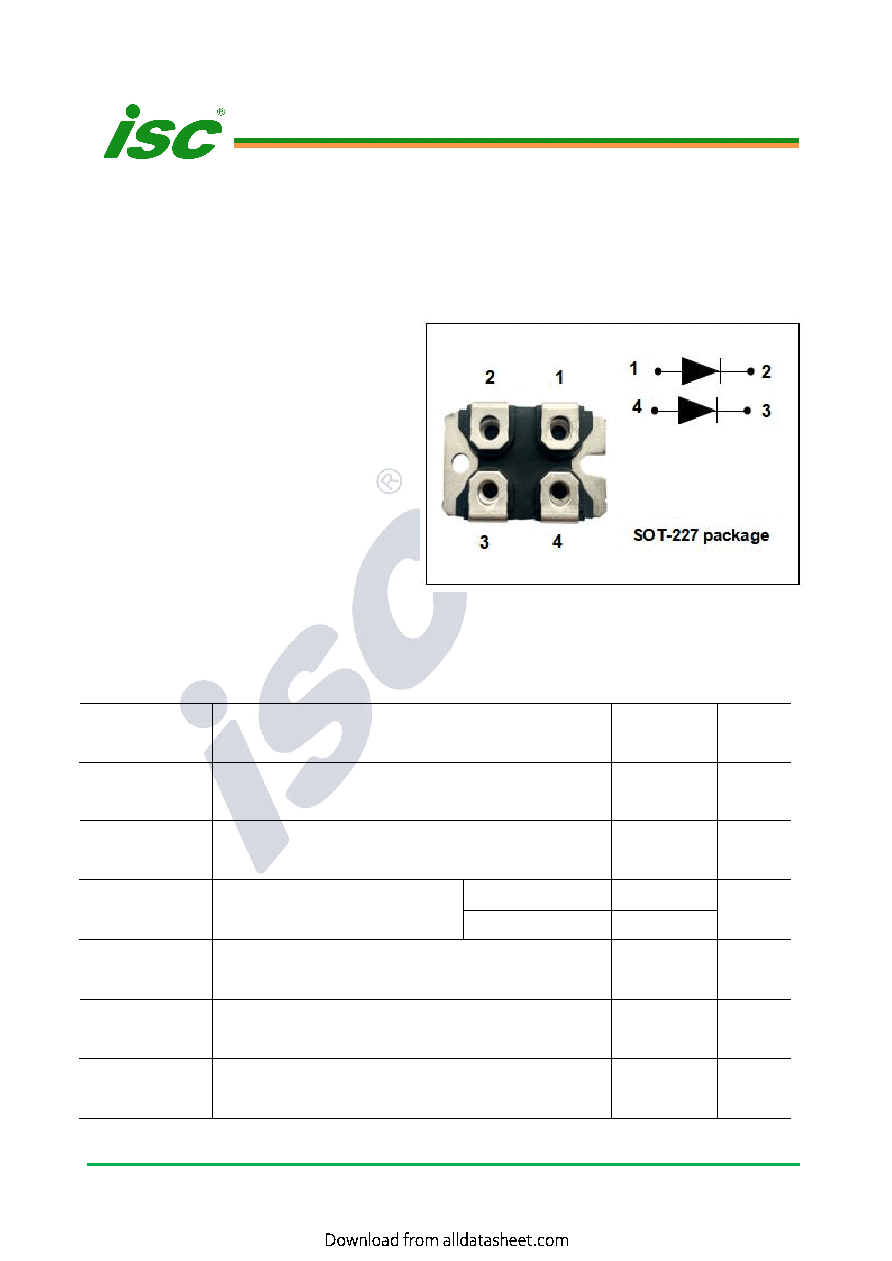

ISUM6041
eq STTH20003
Ultrafast Recovery Diode
www.iscsemi.com
1
FEATURES
·
Ultrafast, soft and noise-free recovery
·
Combines highest recovery and reverse
voltage performance
·
low inductance and low capacitance allow
simpler layout
APPLICATIONS
·
Freewheeling,Snubber,Clamp
·
Inversion Welder
·
PFC
·
Plating Power Supply
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VRRM
VRWM
VR
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
300
V
IF(RMS)
RMS forward current
180
A
IF(AV)
Average Rectified Forward Current，
δ
= 0.5
TC= 110℃
100
A
TC= 90℃
200
IFSM
Non-Repetitive Surge Forward Current
t=10ms,
sinusoidal
1000
A
TJ
Junction Temperature
-40~150
℃
Tstg
Storage Temperature Range
-40~150
℃
