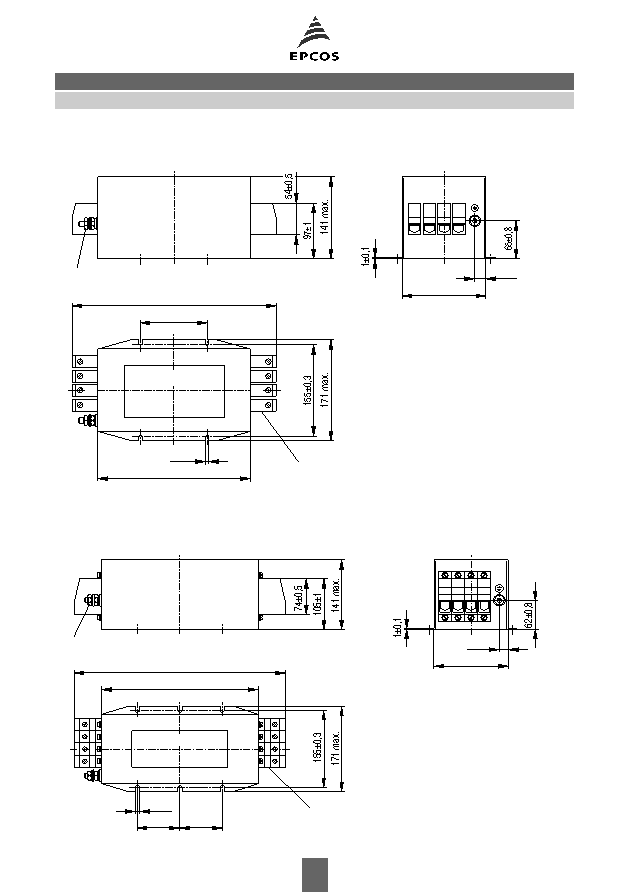

266 03/01
3-Line Filters
B84143-A*-R21
for Converters and Power Electronics
B84143-A120-R21, B84143-A150-R21
B84143-A180-R21
SSB1192-3
6,6±0,2
115±0,2
LINE
LOAD
261 max.
348 max.
PE M10 x 35
18±0,5
2
50 mm
Anschlussklemmen
141 max.
Marking
L2
PE
L3
L1
L2
L3
PE
L1
50 mm2
Terminal blocks
PE M10 x 35
16±0,5
LINE
LOAD
6,6±2,2
82,5±0,2
404 max.
301 max.
82,5±0,2
SSB1193-B
2
95 mm
Anschlussklemmen
141 max.
Marking
L2
PE
L3
L1
L2
L3
PE
L1
Terminal blocks
95 mm2
