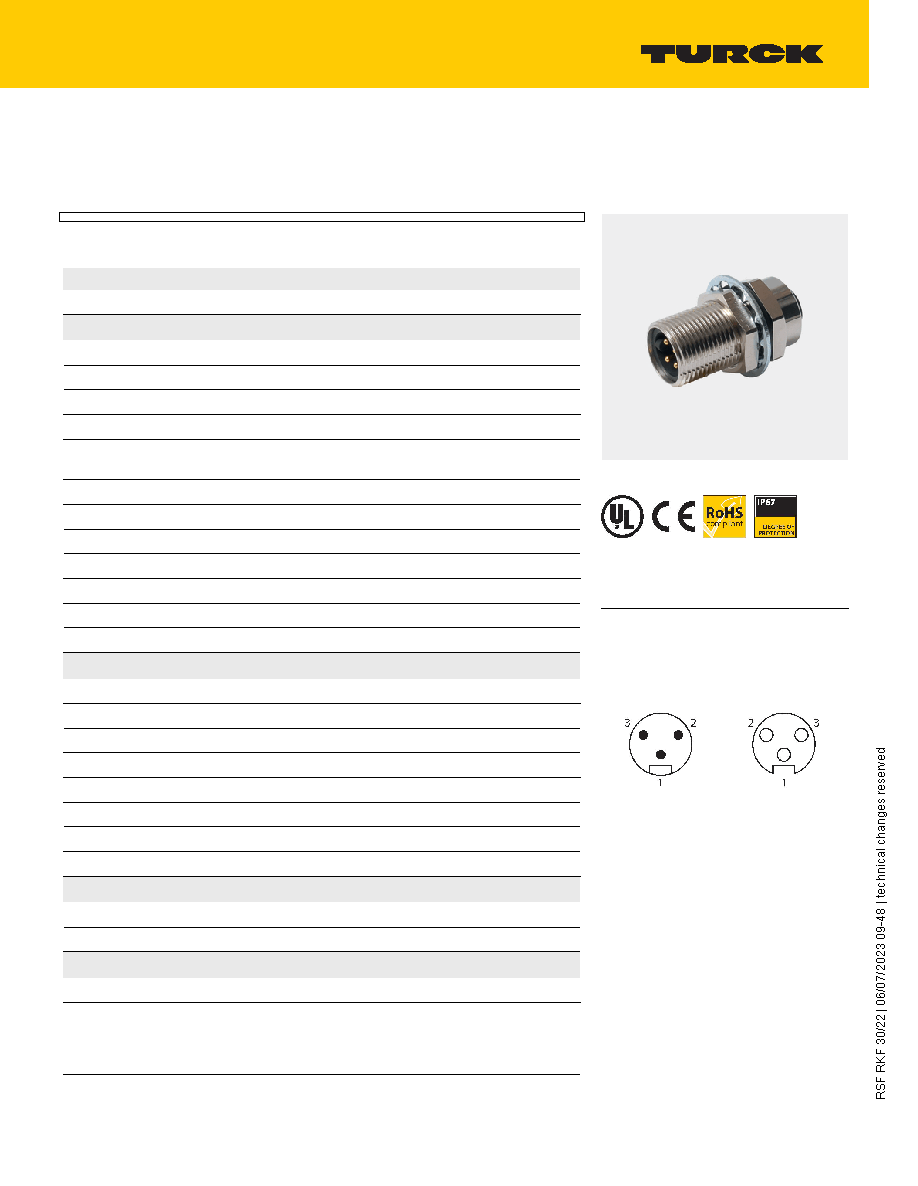

RSF RKF 30/22

Actuator and Sensor Receptacle – Panel Feed-through

Technical data

Type

RSF RKF 30/22

ID

U2309-46

Connector A

Male, 7/8''-16 UN

Number of contacts

3

Contacts

Brass, CuZn, Gold-plated

Contact carriers

Plastic, TPU, Black

Housing material/finish

Brass, CuZn, Nickel-plated

Tightening torque (range)

0.8 … 2 Nm

(note max. torque of mating connector!)

Mounting orientation

Front mount

Panel seal

Gasket, plastic, NBR

Mounting thread

7/8''-16 UN

Locknut

Brass, Nickel-plated

Pollution degree

3

Protection class (When coupled)

IP67

NEMA: 1, 3, 4

Connector B

Female, 7/8''-16 UN

Number of contacts

3

Contacts

Brass, CuZn, Gold-plated

Contact carriers

Plastic, TPU, Black

Mounting type

Rear mount

Panel seal

Gasket

Mounting Thread B

7/8''-16 UN

Protection class (When coupled)

IP67

NEMA: 1, 3, 4

Electrical properties at +20 °C



Rated voltage

600 VAC

Current

10 A

Mechanical and chemical properties

Ambient temperature range (static)

-40 °C…+105 °C

Approvals

UL 2238

CSA C22.2 No. 182.3

CE

RoHS

Features

■Male 7/8'' minifast Receptacle, 3 pin

■Mounting thread: 7/8-16UN

■Female 7/8'' minifast Receptacle, 3 pin

Contact assignment

Connector A

Connector B
