Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

Designer’s Data Sheet

SDR9

__ __ __

__ = Not Screened

TX = TX Level

TXV = TXV

S = S Level

│

│

│

│

│

│

SMS = Surface Mount Square Tab

ASMS = SMS with .145/.155” End Tab Size

│

│

│

│

│

│

│

│

│

│

└

Voltage/Family

JF = 600V

KF = 800V

MF = 1000V

SDR9JF thru SDR9MF

and

SDRJFSMS thru SDRMFSMS

Series

9.0 AMPS

600 ─ 1000 VOLTS

250 ns typical FAST RECOVERY

RECTIFIER

FEATURES:

•

•

PIV to 1000 Volts

•

Hermetically Sealed

•

Low Reverse Leakage Current

•

Single Chip Construction

•

Replaces Larger DO-4 Rectifiers

•

Low Thermal Resistance

•

Available in Axial & Square Tab Versions

•

TX, TXV, and S-Level Screening Available

2/

Available- Contact Factory

RATING

SYMBOL

VALUE

UNIT

Peak Repetitive Reverse

Voltage

And

DC Blocking Voltage

SDR9JF & SDR9JFSMS

SDR9KF & SDR9KFSMS

SDR9MF & SDR9MFSMS

600

800

1000

Volts

9.0

Amps

Peak Surge Current

(8.3 ms pulse, half sine wave, superimposed on Io, allow

150

Amps

Operating & Storage Temperature

-65 to +175

°

C

Thermal Resistance

Junction to Lead for Axial, L =.125"

Junction to End Tab for Surface Mount

8

4

°

C/W

NOTES:

1/ For Ordering Information, Price, Operating Curves, and Availability- Contact Factory.

2/ Screened to MIL-PRF-19500.

3/ Unless Otherwise Specified, All Electrical Characteristics @25ºC.

4/

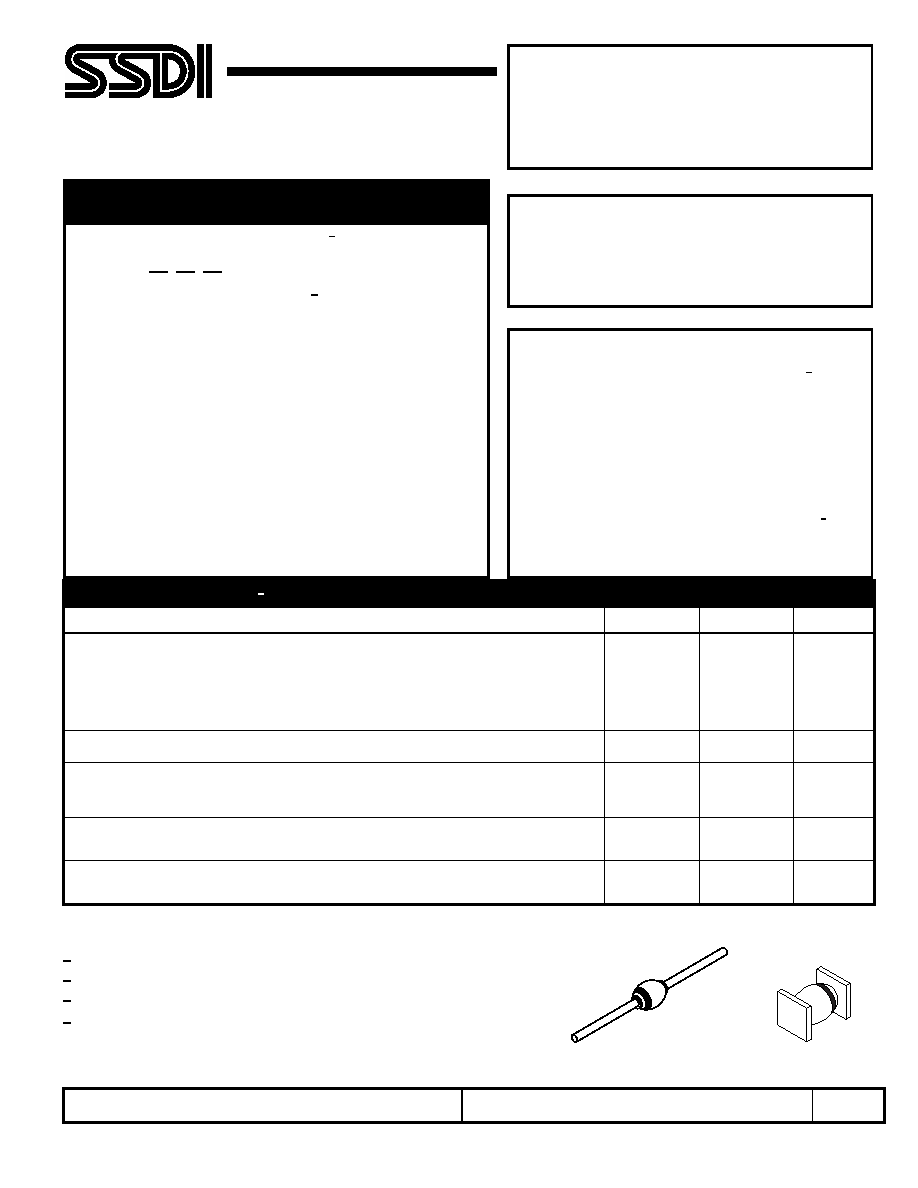

Axial Leaded

SMS

NOTE: All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RC0056C
