MAX2753 Evaluation Kit

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are

implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

2 _____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 2001 Maxim Integrated Products

Printed USA

is a registered trademark of Maxim Integrated Products.

BYP

OUTN

8

OUTN

SMA

OUTP

SMA

GND

7

6

5

1

2

3

4

OUTP

GND

C1

0.1

µF

C4

220pF

C5

0.1

µF

C2

220pF

R2

1k

Ω

R1

1k

Ω

TUNE

1

2

3

JU1

C3

220pF

GND

MAX2753

U1

SHDN

SHDN

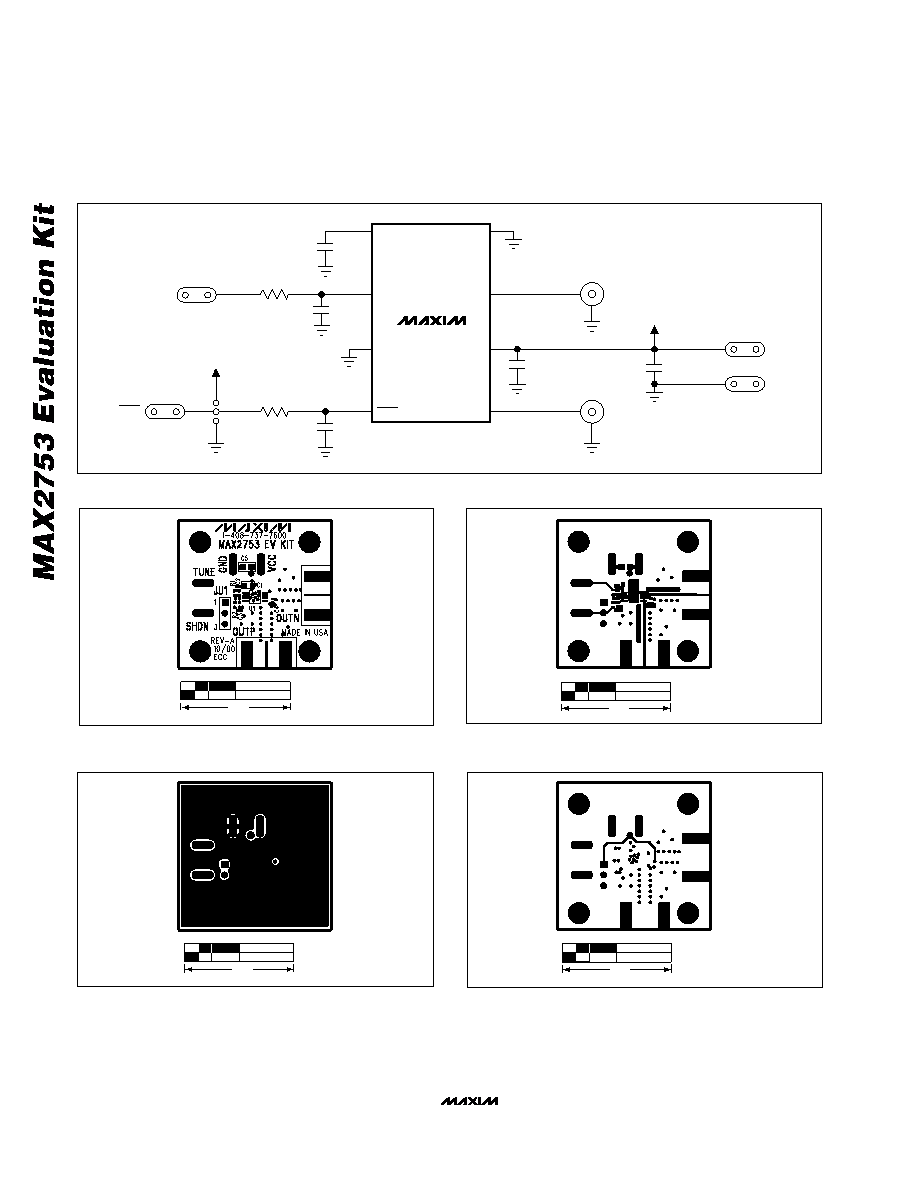

Figure 1. MAX2753 EV Kit Schematic

Figure 2. MAX2753 EV Kit Component Placement Guide—

Component Side

1.0"

Figure 3. MAX2753 EV Kit PC Board Layout—Component Side

1.0"

Figure 4. MAX2753 EV Kit PC Board Layout—Ground Plane

1.0"

Figure 5. MAX2753 EV Kit PC Board Layout—Solder Side

1.0"
