TSB712 Datasheet(PDF) 2 Page - STMicroelectronics |
|
|
|||||||||||||||||||||||||||||
TSB712 Datasheet(HTML) 2 Page - STMicroelectronics |
|
|

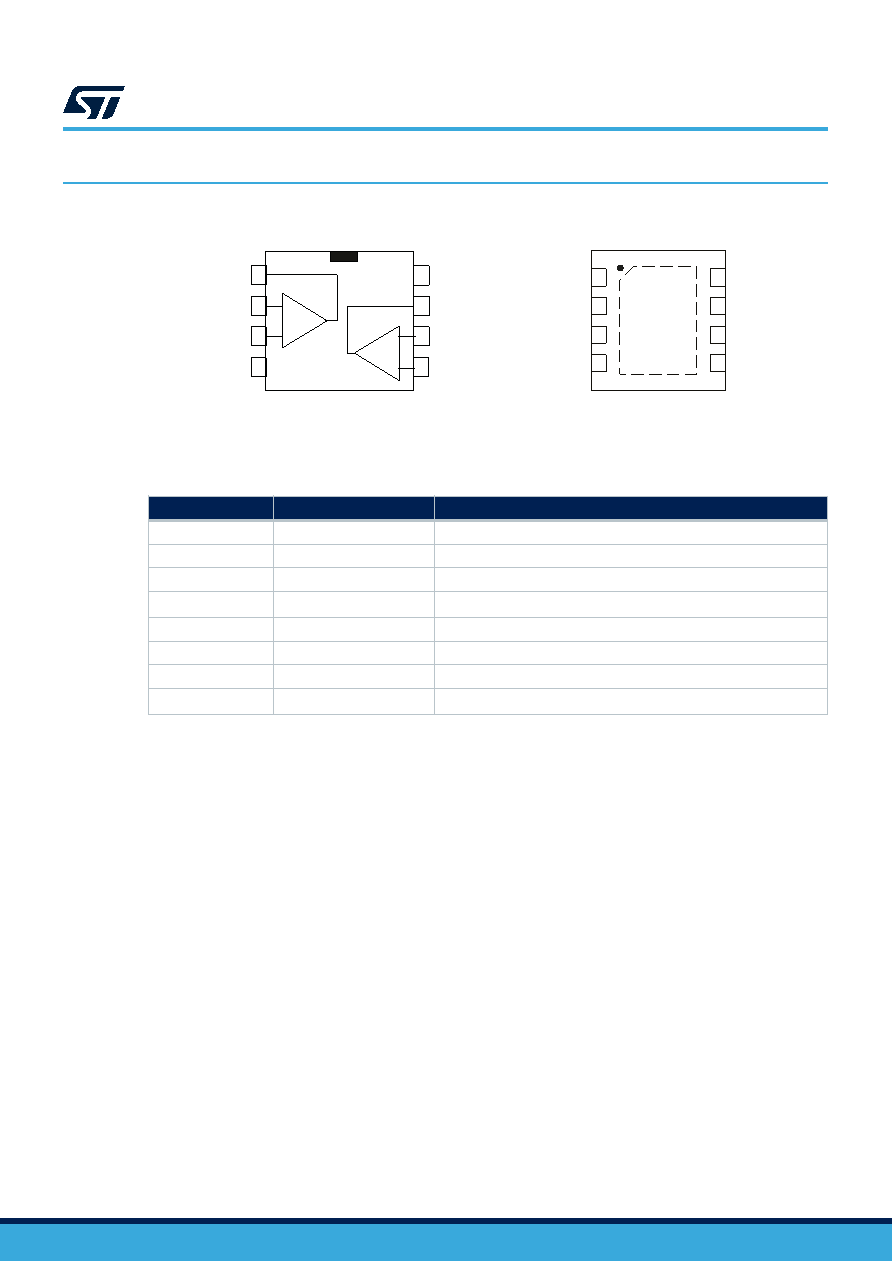

2 / 36 page  1 Pin configuration Figure 1. Pin connections (top view) Out1 In1- In1+ VCC- VCC+ Out2 In2- In2+ DFN8 (3 x 3) 1 2 3 4 8 7 6 5 Out1 IN1- IN1+ VCC- VCC+ Out2 IN2- IN2+ 1 2 3 4 8 7 6 5 - + - + SO8 (1) Table 1. Pin description Pin Pin name Description 1 OUT1 Output 2 IN1- Negative input voltage 3 IN1+ Positive input voltage 4 VCC- Negative supply voltage 5 IN2+ Positive input voltage 6 IN2- Negative input voltage 7 OUT2 Output 8 VCC+ Positive supply voltage TSB952 Pin configuration DS14576 - Rev 1 page 2/36 |
|
