Digital Controller

E5CK

I-69

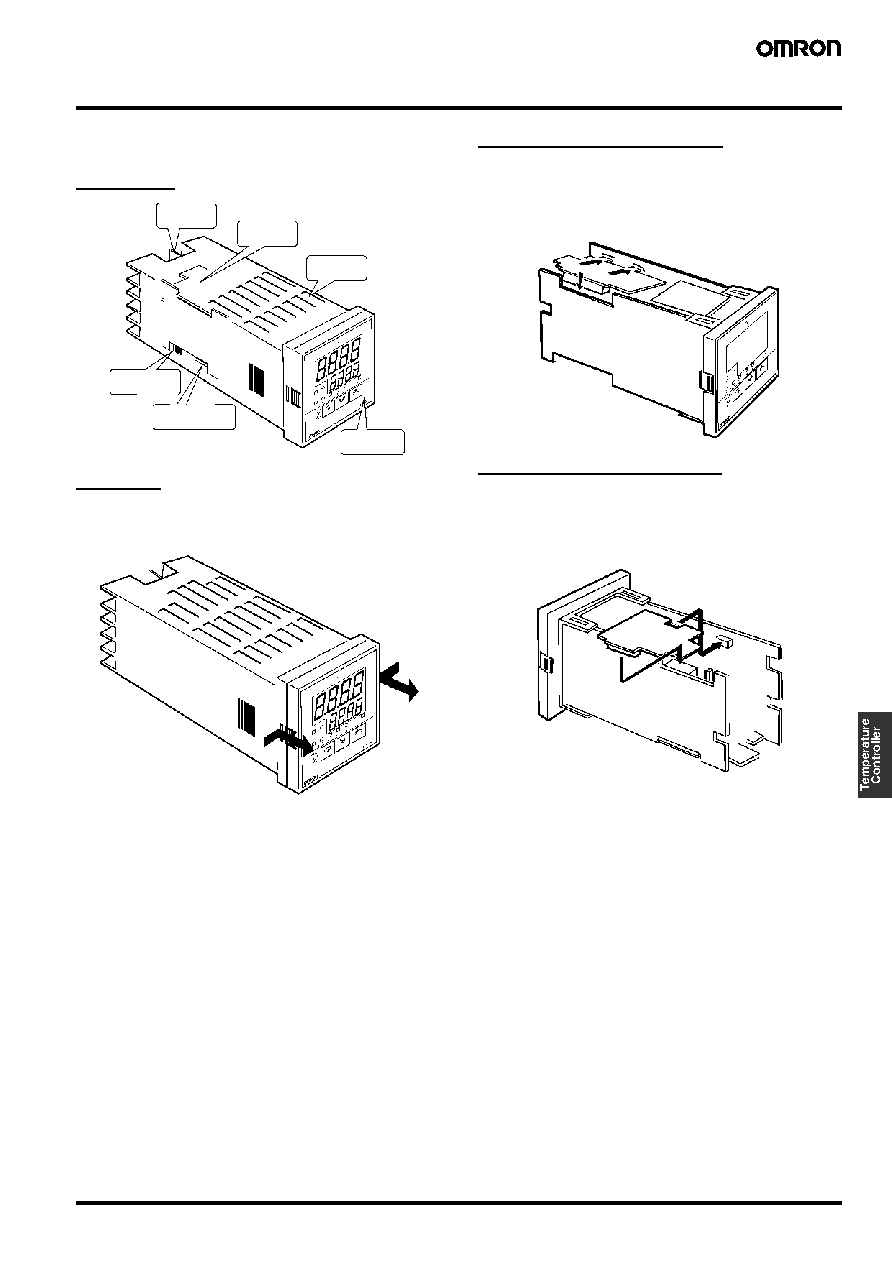

Installation

I Installation

Main Parts

Draw-out

First, draw out the internal mechanism from the housing.

Pull out the internal mechanism while pressing the hooks on the left

and right sides of the front panel.

Setting Up the Output Unit

1. Two rectangular holes are provided on the power board (right side

of Controller). Fit the two protrusions of the Output Unit into these

two holes.

2. With the Output Unit fitted into the power board, fit the Output Unit

into the connector on the control board (left side of Controller).

Setting Up the Option Unit

1. Place the Controller with its bottom facing up, and fit the board

horizontally into the Connector on the power board (right side of

controller).

2. With the power board connected, fit the board vertically into the

Connector on the control board (left side of controller).

Terminals

Output Unit

Rear case

Front panel

Option Unit

Input type jump-

er connector
