TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 12 of 20

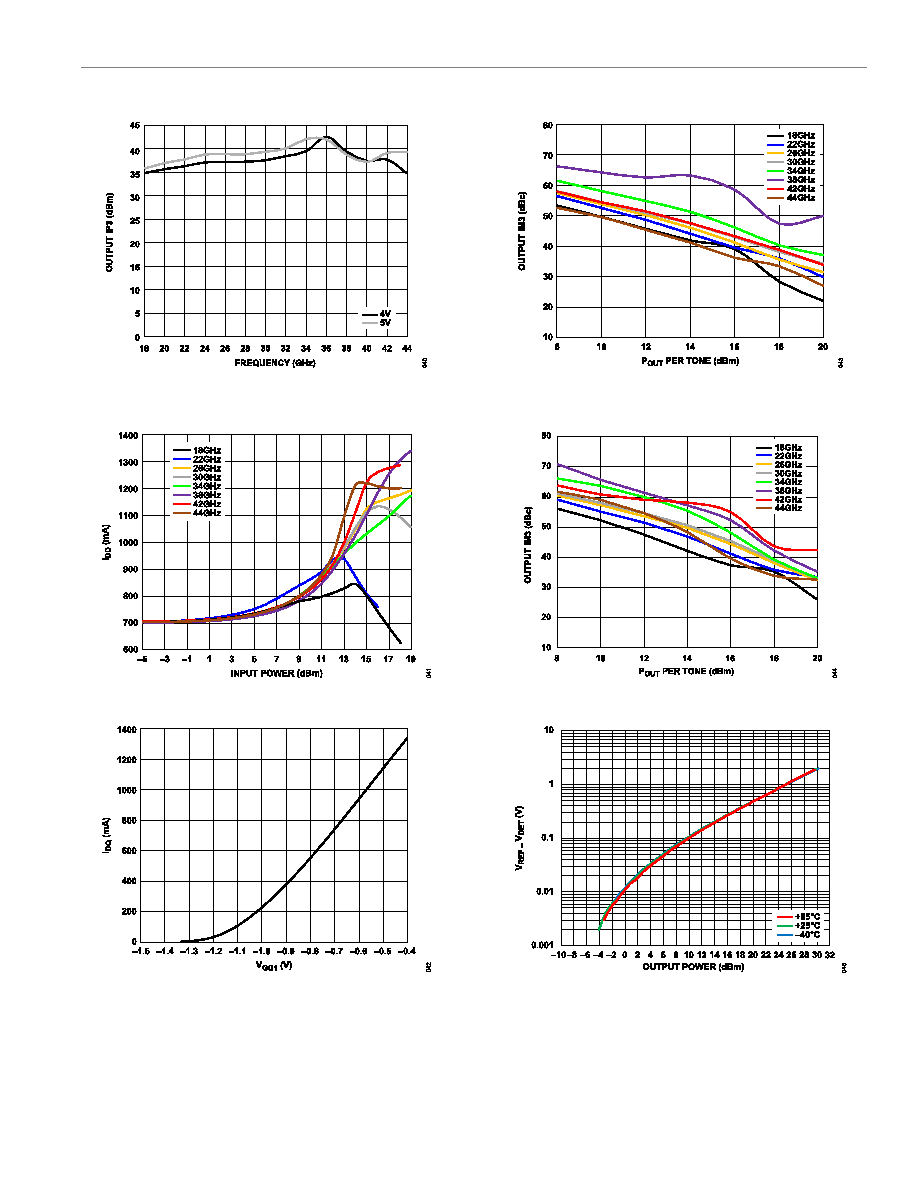

Figure 40. Output IP3 vs. Frequency for Various Drain Voltages, POUT per

Tone = 12 dBm

Figure 41. IDD vs. Input Power over Various Frequencies

Figure 42. IDQ vs. VGG1

Figure 43. Output Third-Order Intermodulation (IM3) vs. POUT per Tone for

Various Frequencies at VDD = 4 V

Figure 44. Output IM3 vs. POUT per Tone for Various Frequencies at VDD = 5 V

Figure 45. VREF − VDET vs. Output Power at Various Temperatures, Frequency

= 32 GHz
