SAP-03-R2 Datasheet(PDF) 2 Page - Eravant

Part # SAP-03-R2
Description  WR-03 Probe Antenna
PDF  3 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  ERAVANT [Eravant]
Direct Link  https://www.eravant.com/
Logo ERAVANT - Eravant

SAP-03-R2 Datasheet(HTML) 2 Page - Eravant

  SAP-03-R2 Datasheet HTML 1Page - Eravant SAP-03-R2 Datasheet HTML 2Page - Eravant SAP-03-R2 Datasheet HTML 3Page - Eravant
Zoom Inzoom in Zoom Outzoom out
 2 / 3 page
background image
SAP-03-R2
Rev. 1.2
www.eravant.com | 501 Amapola Avenue, Torrance, CA 90501
Phone: 424-757-0168 | Fax: 424-757-0188 | Email: support@eravant.com
Page | 2
WR-03 Probe Antenna
Copyright © 2022 by Eravant
-40
-35
-30
-25
-20
-15
-10
-5
0
5
10
-180
-150
-120
-90
-60
-30
0
30
60
90
120
150
180
Boresight Angle (Degrees)

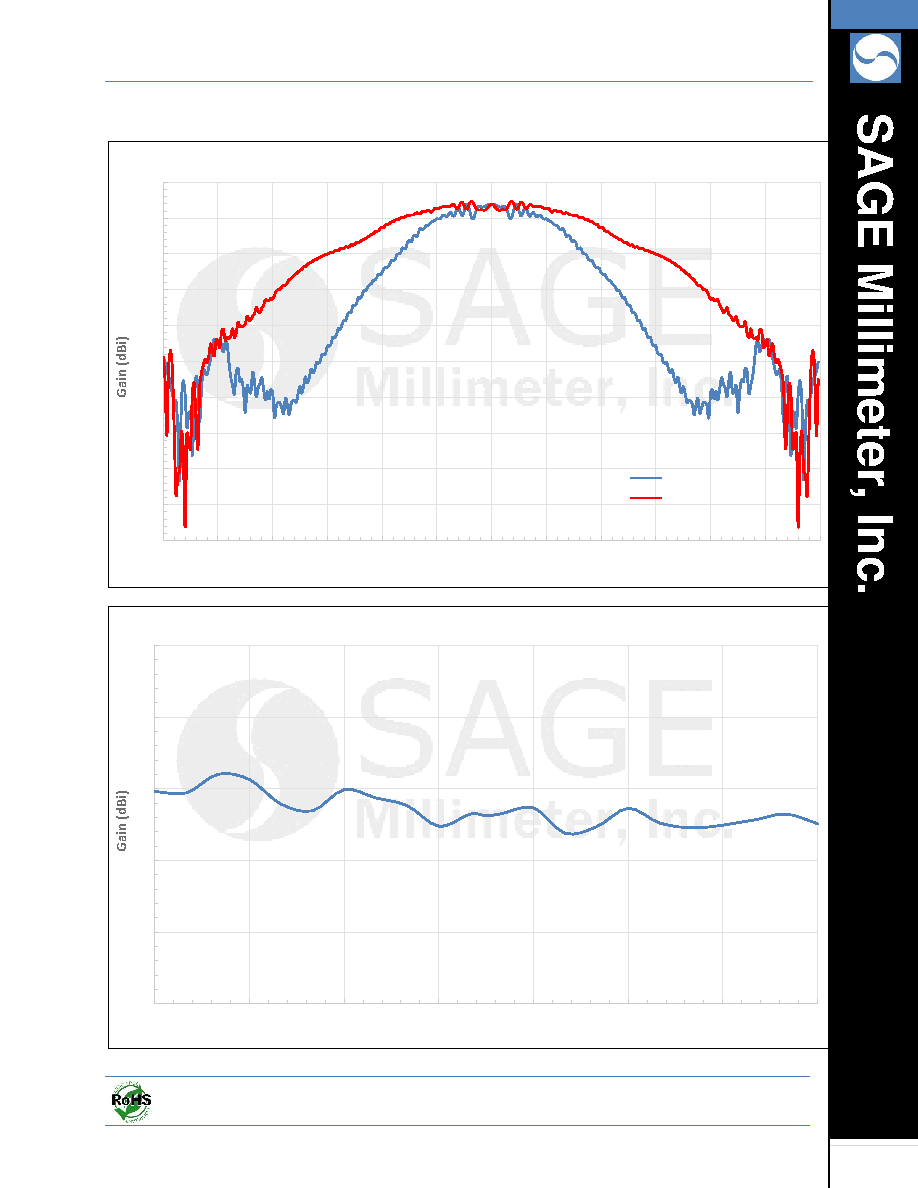

Simulated Antenna Patterns @ 272.5 GHz
H-Plane
E-Plane
5
6
7
8
9
10
220
235
250
265
280
295
310
325
Frequency (GHz)
Simulated Gain vs. Frequency
