SAP-06-R2
Rev. 1.3
www.eravant.com | 501 Amapola Avenue, Torrance, CA 90501
Phone: 424-757-0168 | Fax: 424-757-0188 | Email: support@eravant.com
Page | 2
WR-06 Probe Antenna
Copyright © 2022 by Eravant
-20
-15
-10
-5
0
5
10
-180
-120
-60
0
60
120
180
Boresight Angle (Degree)

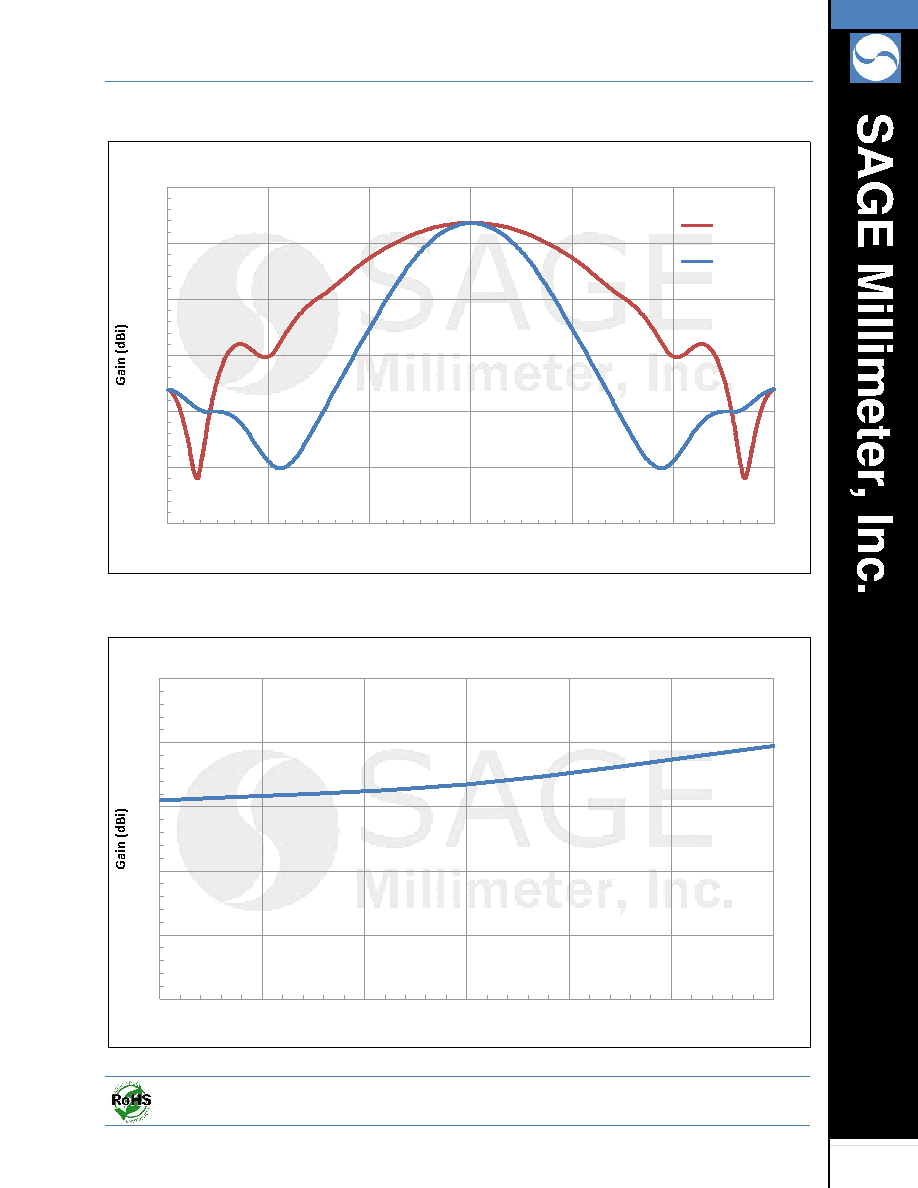

Typical Antenna Pattern @ 140 GHz
E-Plane
H-Plane
0
2
4
6
8
10
110
120
130
140
150
160
170
Frequency (GHz)
Typical Gain vs. Frequency
