SAP-42-R2 Datasheet(PDF) 2 Page - Eravant

Part # SAP-42-R2
Description  WR-42 Probe Antenna
PDF  3 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  ERAVANT [Eravant]
Direct Link  https://www.eravant.com/
Logo ERAVANT - Eravant

SAP-42-R2 Datasheet(HTML) 2 Page - Eravant

  SAP-42-R2 Datasheet HTML 1Page - Eravant SAP-42-R2 Datasheet HTML 2Page - Eravant SAP-42-R2 Datasheet HTML 3Page - Eravant
Zoom Inzoom in Zoom Outzoom out
 2 / 3 page
background image
SAP-42-R2
Rev. 1.3
www.eravant.com | 501 Amapola Avenue, Torrance, CA 90501
Phone: 424-757-0168 | Fax: 424-757-0188 | Email: support@eravant.com
Page | 2
WR-42 Probe Antenna
Copyright © 2023 by Eravant
-20
-15
-10
-5
0
5
10
-180
-120
-60
0
60
120
180
Boresight Angle (Degree)

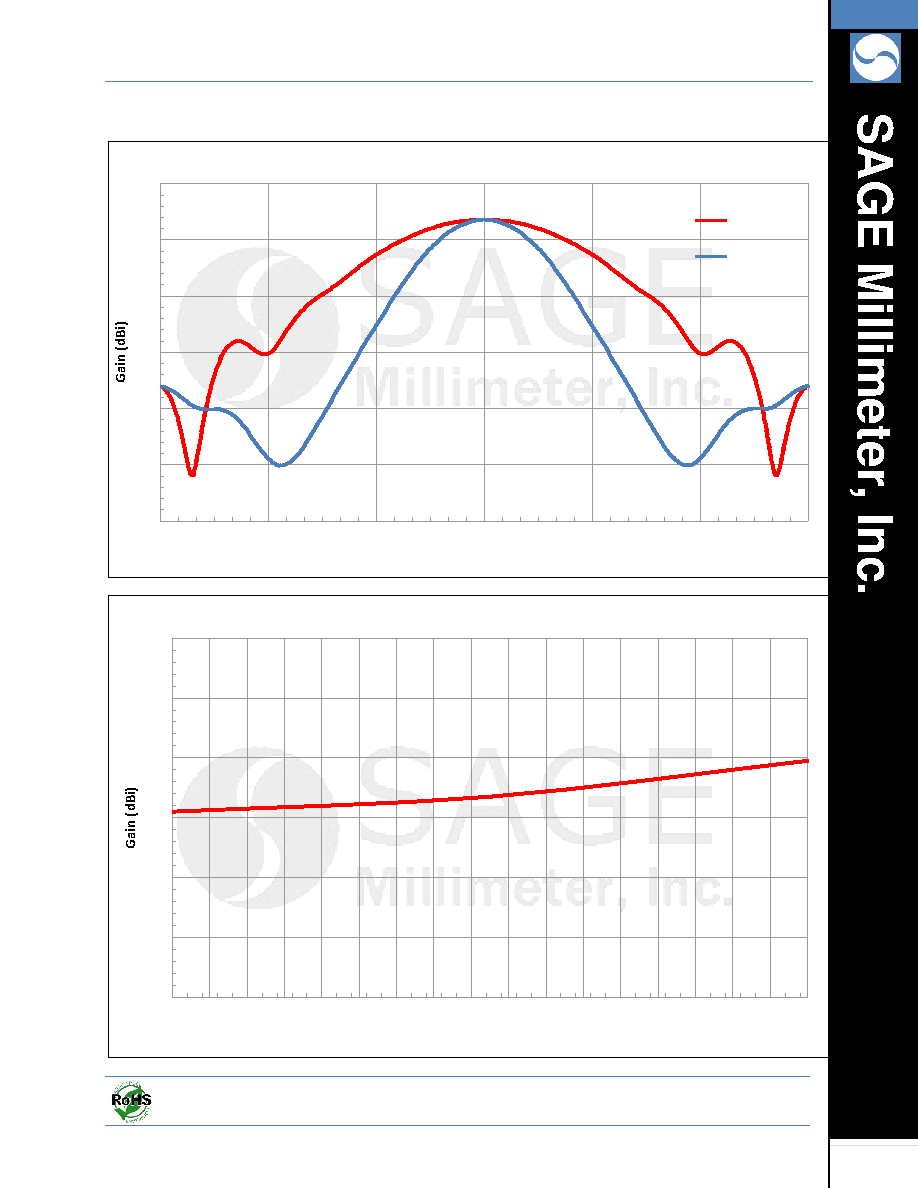

Typical Antenna Pattern @ 22.25 GHz
E-Plane
H-Plane
0
2
4
6
8
10
12
18
18.5
19
19.5
20
20.5
21
21.5
22
22.5
23
23.5
24
24.5
25
25.5
26
26.5
Frequency (GHz)
Typical Gain vs. Frequency
