ADL5506ACBZ-R7 Datasheet(PDF) 9 Page - Analog Devices

Part # ADL5506ACBZ-R7
Description  30 MHz to 4.5 GHz, 45 dB RF Detector
PDF  22 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADL5506ACBZ-R7 Datasheet(HTML) 9 Page - Analog Devices

Back Button ADL5506ACBZ-R7 Datasheet HTML 5Page - Analog Devices ADL5506ACBZ-R7 Datasheet HTML 6Page - Analog Devices ADL5506ACBZ-R7 Datasheet HTML 7Page - Analog Devices ADL5506ACBZ-R7 Datasheet HTML 8Page - Analog Devices ADL5506ACBZ-R7 Datasheet HTML 9Page - Analog Devices ADL5506ACBZ-R7 Datasheet HTML 10Page - Analog Devices ADL5506ACBZ-R7 Datasheet HTML 11Page - Analog Devices ADL5506ACBZ-R7 Datasheet HTML 12Page - Analog Devices ADL5506ACBZ-R7 Datasheet HTML 13Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 9 / 22 page
background image
Data Sheet
ADL5506
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. C | 9 of 22

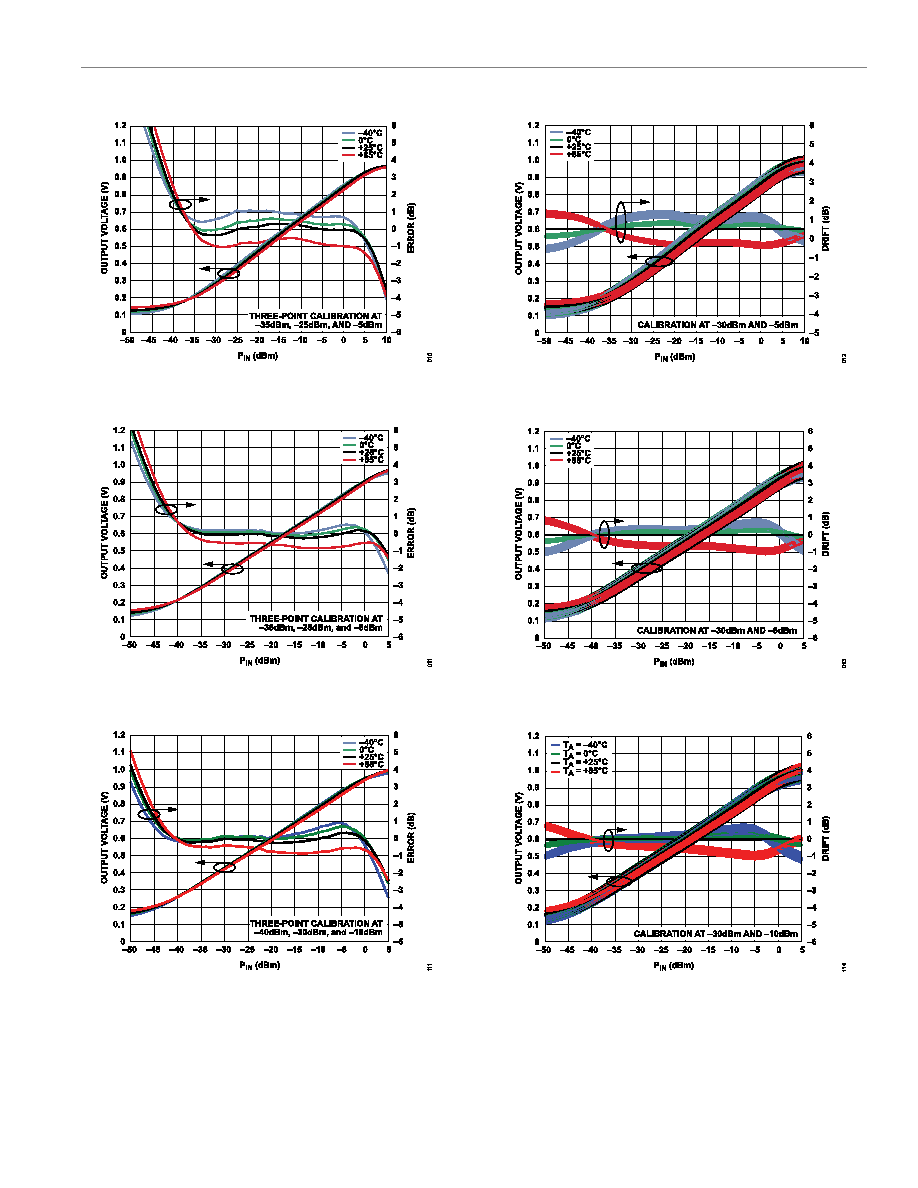

Figure 9. VLOG and Log Conformance Error vs. PIN over Temperature at 30
MHz
Figure 10. VLOG and Log Conformance Error vs. PIN over Temperature at 50
MHz
Figure 11. VLOG and Log Conformance Error vs. PIN over Temperature at 100
MHz
Figure 12. Distribution of Log Conformance Error with Respect to VLOG at
25°C vs. PIN and Temperature at 30 MHz
Figure 13. Distribution of Log Conformance Error with Respect to VLOG at
25°C vs. PIN and Temperature at 50 MHz
Figure 14. Distribution of Log Conformance Error with Respect to VLOG at
25°C vs. PIN and Temperature at 100 MHz
