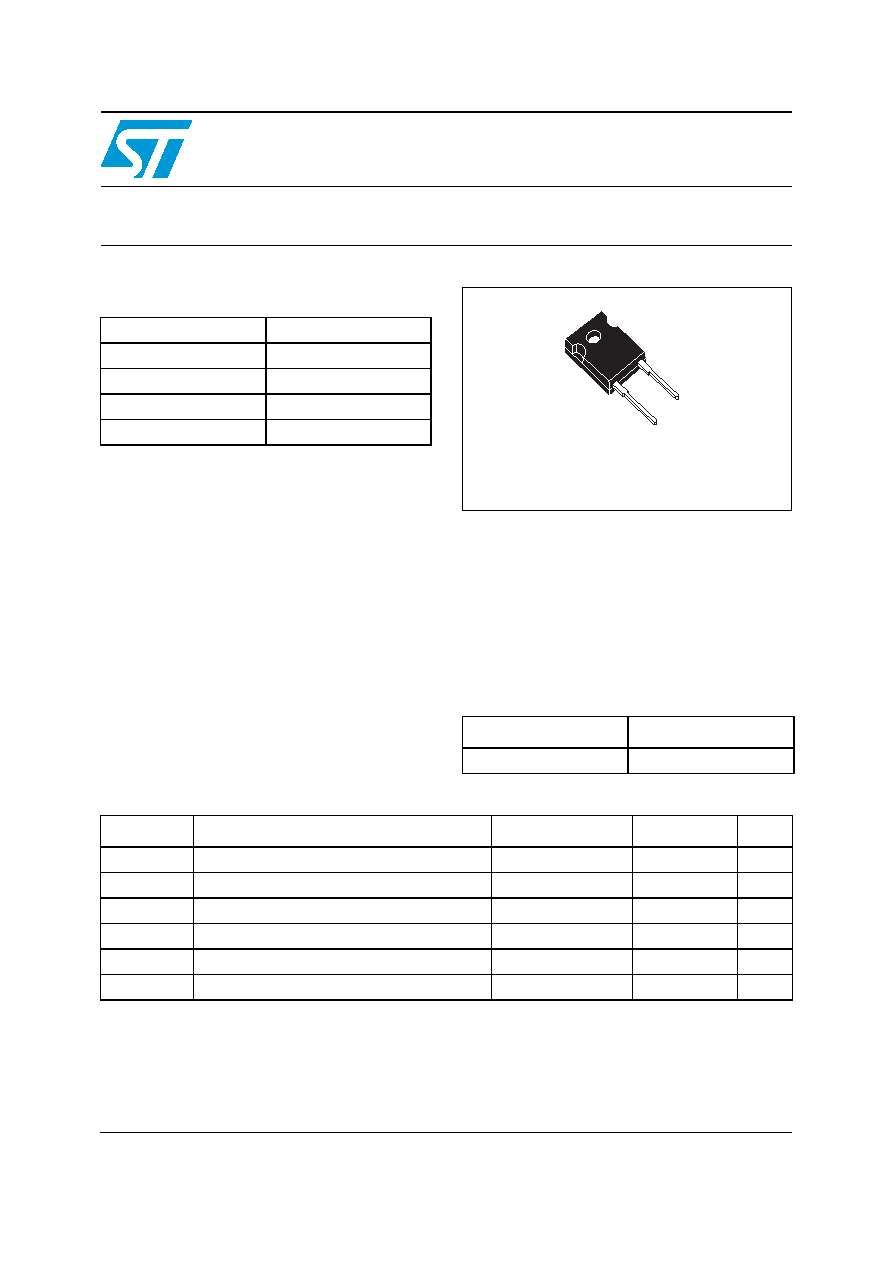

background image
December 2006
Rev 1
1/6
6
STTH8006
Turbo 2 ultrafast high voltage rectifier
Main product characteristics
Features and benefits
■ Ultrafast switching
■ Low reverse current
■ Low thermal resistance
■ Reduces switching and conduction losses
Description
The STTH8006, which is using ST Turbo 2 600V
technology, is specially suited for use in switching
power supplies, and industrial applications, as
rectification and discontinuous mode PFC boost
diode. Thanks to its low VF characteristics, this
device exhibits high performances in free-
wheeling applications.
Order Code
IF(AV)
80 A
VRRM
600 V
Tj
175 °C
VF (typ)
1.02 V
trr (max)
70 ns
Part number
Marking
STTH8006W
STTH8006W
K
A
DO-247
STTH8006W
Table 1.
Absolute ratings (limiting values, at Tamb = 25 °C, unless otherwise specified)
Symbol
Parameter
Value
Unit
VRRM
Repetitive peak reverse voltage
600
V
IF(RMS)
RMS forward voltage
113
A
IF(AV)
Average forward current
Tc = 75 °C δ = 0.5
80
A
IFSM
Surge non repetitive forward current
tp = 10 ms sinusoidal
500
A
Tstg
Storage temperature range
-65 to + 175
°C
Tj
Maximum operating junction temperature
175
°C
www.st.com
