Unlimited Designs

license allows using IP

Core in unlimited number of FPGA bitstreams

and ASIC implementations.

In all cases number of IP Core instantiations

within a design, and number of manufactured

chips are unlimited. There is no time of use

limitations.

●

○

Single Design license for

VHDL, Verilog source code called HDL

Source

Encrypted, or plain text EDIF called Netlist

○

●

○

○

●

○

○

Unlimited Designs license for

HDL Source

Netlist

Upgrade from

Netlist to HDL Source

Single Design to Unlimited Designs

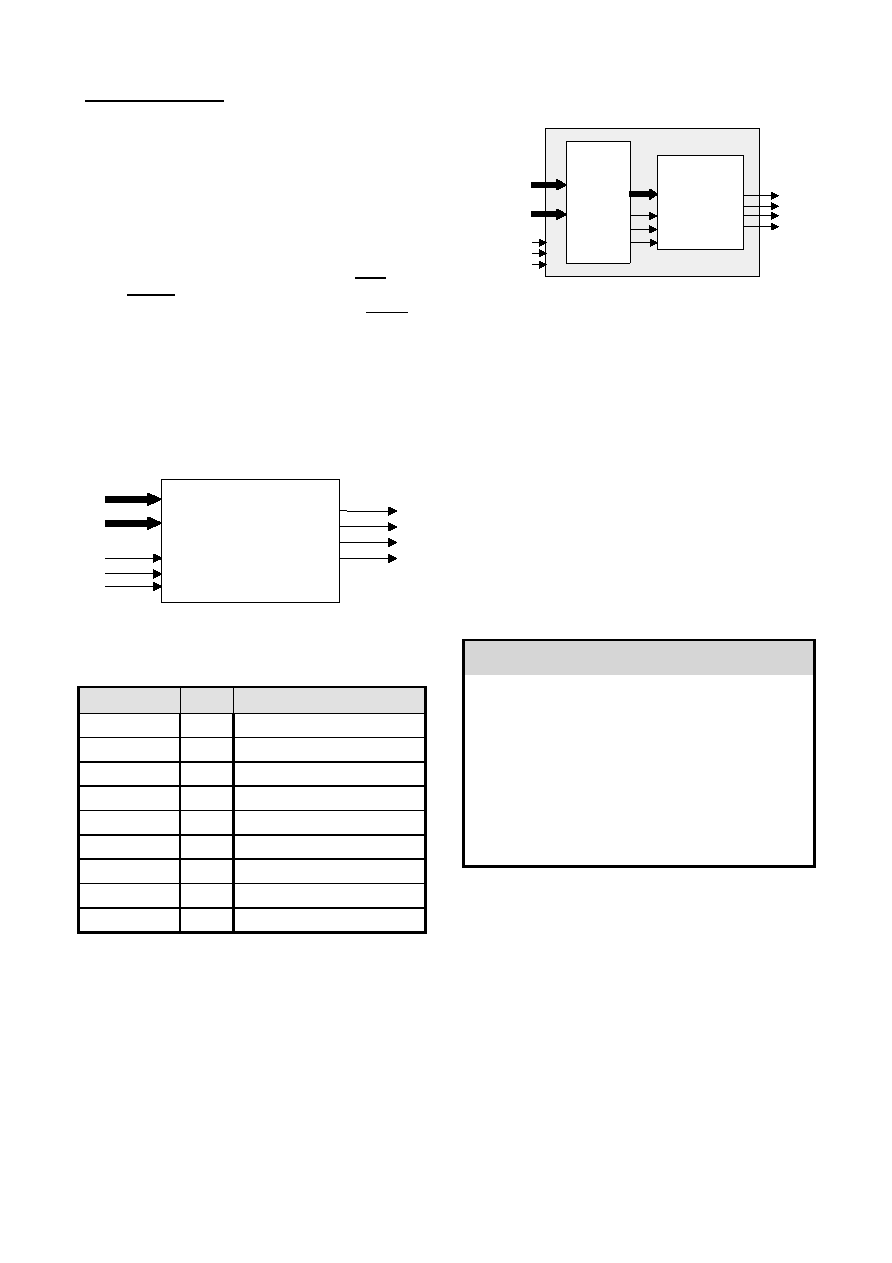

SYMBOL

adatai(31:0)

bdatai(31:0)

en

rst

clk

gto

eqo

lto

ifo

PINS DESCRIPTI O N

PIN

TYPE

DESCRIPTION

clk

Input Global system clock

rst

Input Global system reset

en

Input Enable computing

adatai[31:0]

Input A data bus input

bdatai[31:0]

Input B data bus input

gto

output A>B output

eqo

output A=B output

lto

output A<B output

ifo

output Invalid result flag

BLOCK DIAGRAM

adatai(31:0)

en

rst

clk

gto

eqo

lto

ifo

Arguments

Checker

Main FP

Pipelined Unit

bdatai(31:0)

Arguments Checker

- performs input data

analyze against IEEE-754 number standard

compliance. The appropriate numbers and

information about the input data classes are

given as the results to Main FP Pipelined

Unit.

Main FP Pipelined Unit

- performs floating

point compare function. Gives the complex

information about the results and makes final

flags settings.

PERFORMANCE

The following table gives a survey about the

Core area and performance in the ALTERA®

devices after Place & Route :

Device

Speed

grade

Logic Cells

FLEX10KE

-1

83

81 MHz

ACEX1K

-1

83

82 MHz

APEX20K

-1

79

60 MHz

APEX20KE

-1

79

76 MHz

APEX20KC

-7

79

98 MHz

APEX-II

-7

79

118 MHz

MERCURY

-5

85

178 MHz

STRATIX

-5

82

152 MHz

CYCLONE

-6

81

140 MHz

STRATIX-II

-3

66

225 MHz

CYCLONE -II

-6

81

141 MHz

Core performance in ALTERA® devices
