Basic Switches
BZ/BA Series
Standard
For application help: call 1-800-537-6945.
Honeywell Sensing and Control
59

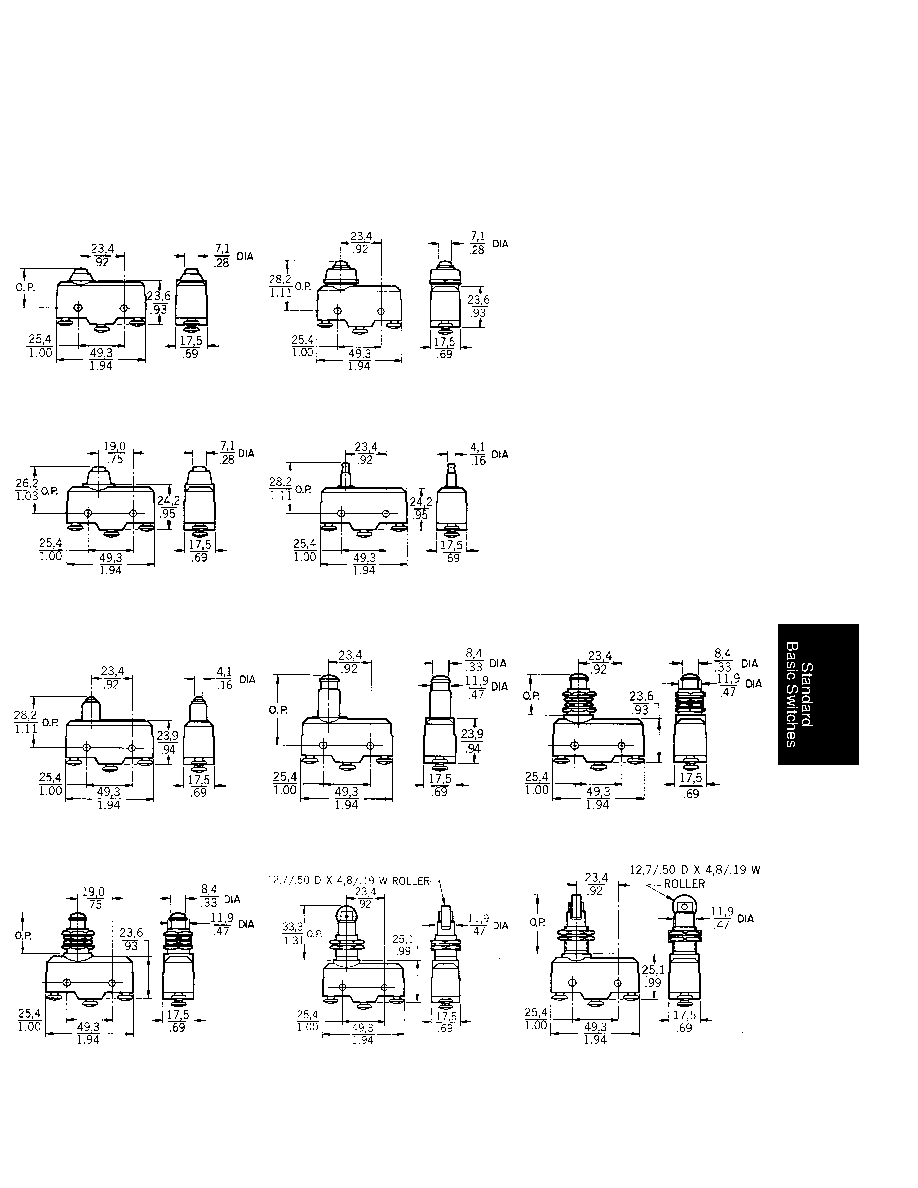

MOUNTING DIMENSIONS (For reference only)
OVERTRAVEL PLUNGERS
Fig. 11
Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 16
*Fig. 17
*Fig. 18
*Fig. 19
*Fig. 20
* Threaded bushings are 15/32-32ns.
