Package Dimensions (DIP-8)

Table 5.

DIP-8 mechanical data

Size

symbol

Min.(mm)

Max.(mm)

Size

symbol

Min.(mm)

Max.(mm)

A

3.60

4.00

c1

0.23

0.27

A1

0.51

——

D

9.05

9.45

A2

3.00

3.40

E1

6.15

6.55

A3

1.55

1.65

e

2.54BSC

b

0.44

0.53

e A

7.62BSC

b1

0.43

0.48

e B

7.62

9.30

B1

1.52BSC

e C

0.00

0.84

c

0.24

0.32

L

3.00

——

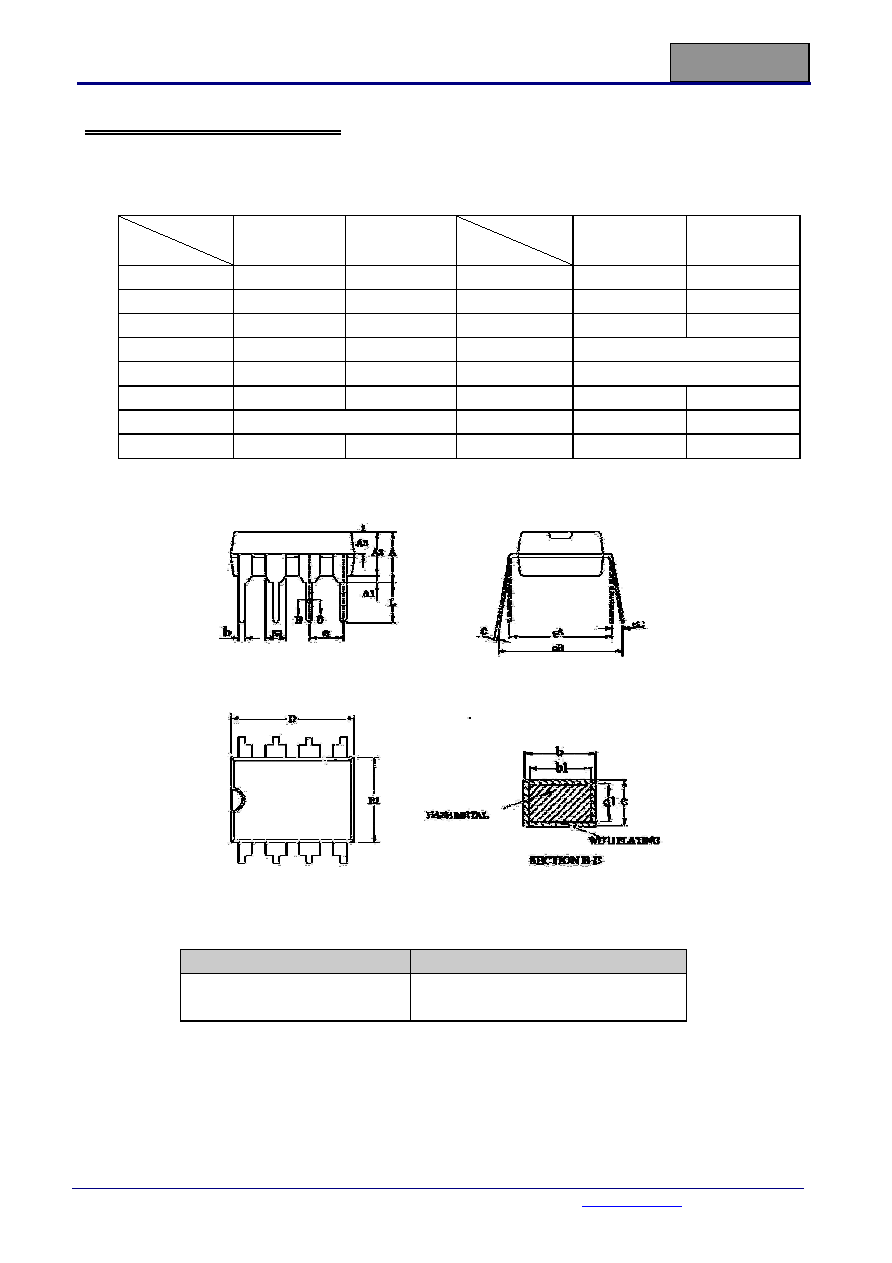

Figure 4. Package dimensions

TOP MARK

Package

AP8012H

YWWXXXXX

DIP-8

Note: Y: Year Code; WW: Week Code; XXXXX: Internal Code
