Thick Film Chip Resistors

Newark.com/multicomp-pro

Farnell.com/multicomp-pro

sg.element14.com/b/multicomp-pro

Performance specification

Characteristics

Limits

Test Methods

(AEC - Q200)

Operational Life

Resistance change rate is

±1%: ±(1.0%+0.1Ω)max

±5%: ±(3.0%+0.1Ω)Max.

125°C, at 35% of operating power, 1000H(1.5 hours “ON”, 0.5

hour “OFF”)

(MIL-STD-202 Method 108)

Temperature Coefficient

Resistance change rate is

10Ω< R ≤10Ω : ±200PPM/°C

10Ω< R ≤10MΩ : ±100PPM/°C

4.8 Natural resistance change per temp.

degree centigrade.

R2-R1

R1(t2-t1)

R1: Resistance value at room temperature (T1)

R2: Resistance value at room temp. plus 100°C (T2)

Test pattern: room temp. (T1), room temp. +100°C (T2)

Short Time Overload

Resistance change rate is

±1%: ±(1.0%+0.1Ω)Max

±5%: ±(2.0%+0.1Ω)Max

2.5x Rated voltage or Max. Overload Voltage whichever is

lower for 5 seconds, then check the resistance.

External Visual

No Mechanical Pamage

Electrical test not required.Inspect device construction,

marking and workmanship

(MIL-STD-883 Method 2009)

Physical Dimension

Reference 2.0 Dimension

Standards

Verify physical dimensions to the applicable device detail

specification.

Note: User(s) and Suppliers spec. Electrical test not required.

(JESD22 MH Method JB-100)

Resistance to Solvent

Marking Unsmeared

Note: Add Aqueous wash chemical – OKEM Clean or

equivalent.

Do not use banned solvents.

( MIL-STD-202 Method 215)

Terminal Strength

Not broken

Force of 1.8kg for 60 seconds.

(JIS-C-6429)

High Temperature Expo-

sure

(Storage)

Resistance change rate is

±(1.0%+0.1Ω)max

1000hrs. at T=155°C.Unpowered. Measurement at 24±2

hours after test conclusion.

(MIL-STD-202 Method 108)

Temperature cycling

Resistance change rate is

1%: ± (0.5%+0.1Ω) Max.

5%: ± (1.0%+0.1Ω) Max.

1000 Cycles (-55°C to +155°C). Measurement at 24±2 hours

after test conclusion.

(JESD22 Method JA-104)

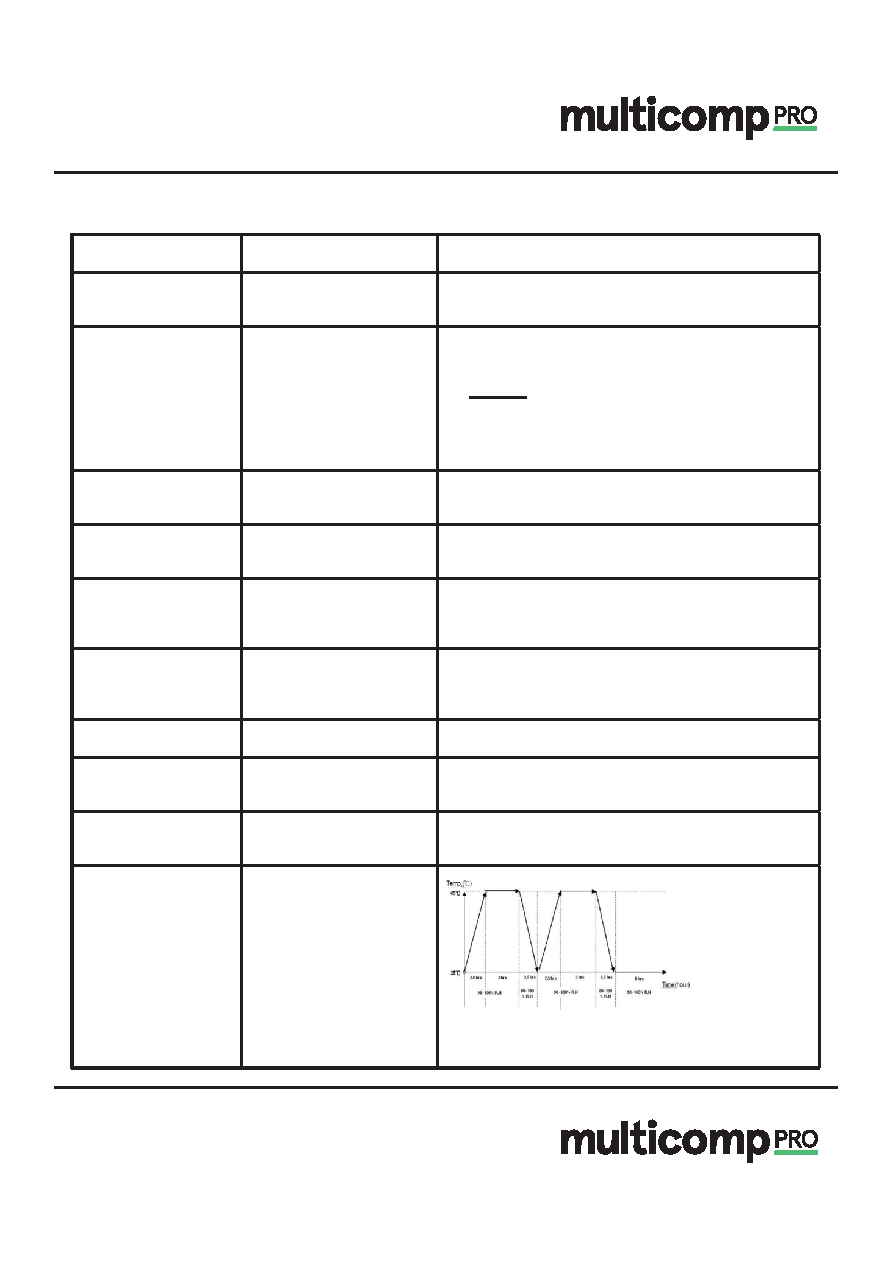

Moisture Resistance

Resistance change rate is

1%: ± (0.5%+0.1Ω) Max.

5%: ± (3.0%+0.1Ω) Max.

T=24 hours /cycle. Unpowered. Measurement at 24±2 hours

after test conclusion.

(MIL-STD-202 Method 106)
