• Natural nylon material for indoor use

• Weather resistant material has greater resistance to damage

caused by ultraviolet light – indoor or outdoor use

• Heat stabilized material for high temperature applications

up to 239°F (115°C) – indoor use

• A fast and economical method to secure and separate two bundles

• Reduces part number inventory – single part covers multiple

bundle sizes

• Installs easily by hand – second loop can be installed

with Panduit cable tie installation tools

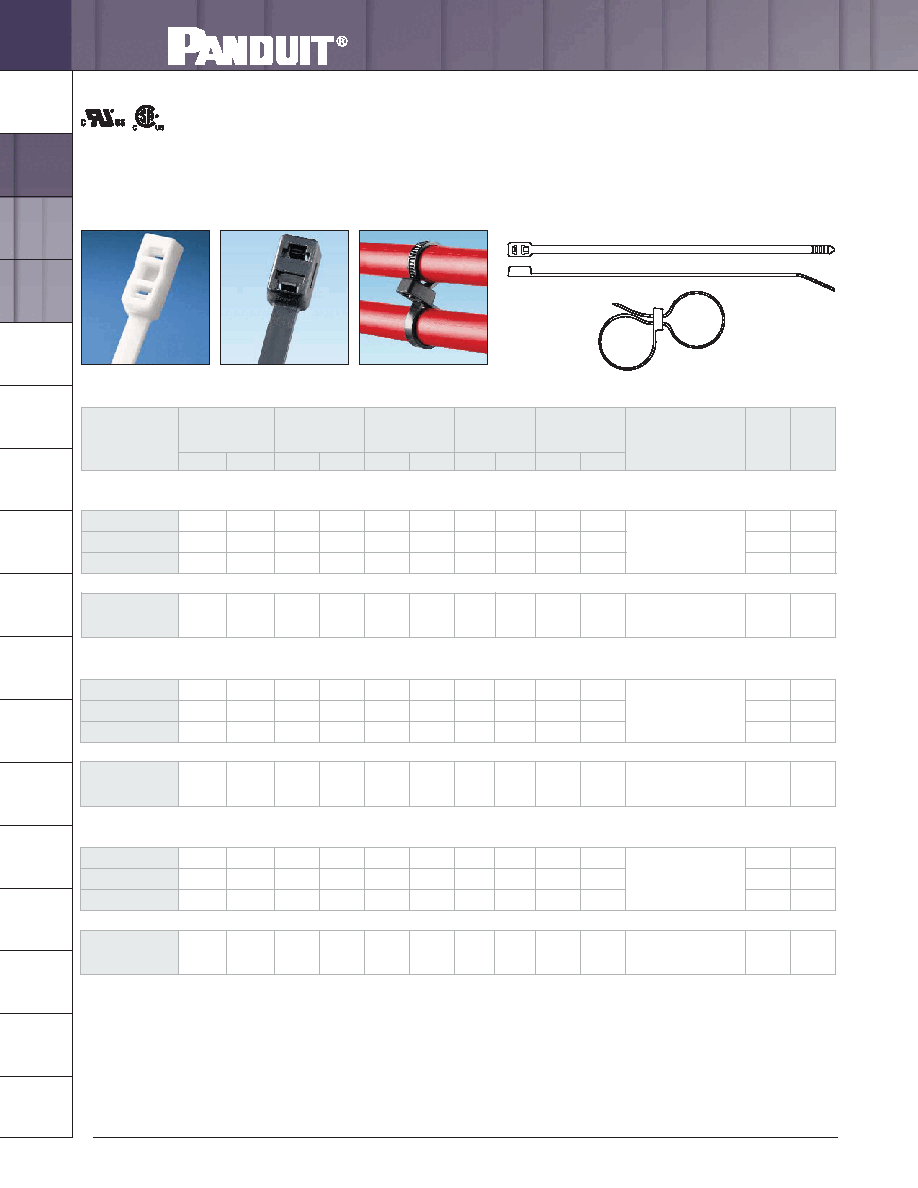

Pan-Ty ® Double Loop Cable Ties

Note: UL Recognized and CSA Certified except PLB4H-TL0.

PLB4H

Head Design

Part Number

Max. Combined

Bundle Dia.

D1 + D2

Length

Width

Thickness

Min.

Loop

Tensile Str.

Recommended

Installation

Tool

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

In.

mm

In.

mm

In.

mm

In.

mm

Lbs.

N

Nylon 6.6

Standard Cross Section

PLB2S-C

1.80

46

7.6

193

.190

4.8

.052

1.3

50

222

GTS, GTSL, GS2B,

GTH, GS4H, PTS,

PTH, PPTS,

STS2, STH2

100

1000

PLB3S-C

3.00

76

11.8

300

.190

4.8

.052

1.3

50

222

100

1000

PLB4S-C

4.10

104

14.8

376

.190

4.8

.052

1.3

50

222

100

1000

Light-Heavy Cross Section

PLB4H-TL

3.60

91

14.7

373

.300

7.6

.075

1.9

120

534

GTH, GS4H,

GS4EH, PTH,

STH2, ST3EH

250

2500

PLB2S/3S/4S

Head Design

Assembled View

D1

D2

Weather Resistant Nylon 6.6

Standard Cross Section

PLB2S-C0

1.80

46

7.6

193

.190

4.8

.052

1.3

50

222

GTS, GTSL, GS2B,

GTH, GS4H, PTS,

PTH, PPTS,

STS2, STH2

100

1000

PLB3S-C0

3.00

76

11.8

300

.190

4.8

.052

1.3

50

222

100

1000

PLB4S-M0

4.10

104

14.8

376

.190

4.8

.052

1.3

50

222

1000

5000

Light-Heavy Cross Section

PLB4H-TL0

3.60

91

14.7

373

.300

7.6

.075

1.9

120

534

GTH, GS4H,

GS4EH, PTH,

STH2, ST3EH

250

2500

Heat Stabilized Nylon 6.6

Standard Cross Section

PLB2S-M30

1.80

46

7.6

193

.190

4.8

.052

1.3

50

222

GTS, GTSL, GS2B,

GTH, GS4H, PTS,

PTH, PPTS,

STS2, STH2

1000

10000

PLB3S-M30

3.00

76

11.8

300

.190

4.8

.052

1.3

50

222

1000

10000

PLB4S-M30

4.10

104

14.8

376

.190

4.8

.052

1.3

50

222

1000

5000

Light-Heavy Cross Section

PLB4H-TL30

3.60

91

14.7

373

.300

7.6

.075

1.9

120

534

GTH, GS4H,

GS4EH, PTH,

STH2, ST3EH

250

2500
