PF 14

RATINGS:

• Volts:

• 1-600A models:

600VAC, 400VDC

• 15-600A models:

700VAC (self certified)

• Amps: 1 to 600A

• IR: 200kA I.R. AC, 100kA I.R. DC

(Self certified for 600VAC,

300kA I.R., & 700VAC, 100kA I.R.)

APPLICATIONS:

• Motor circuits

• Mains

• Feeders

• Branch circuits

• Lighting, heating & general loads

• Transformers

• Control panels

• Circuit breaker back-up

• Bus duct

• Load centers

APPROVALS:

AJT (1-600)[N]:

• UL listed to standard 248-8

File E2137

• DC listed to UL standard 248

• CSA certified to standard

C22.2 No. 248.8

• IEC 60269-2-1

AJT (70-600) EI:

• UL listed

• DC tested to UL standard 248

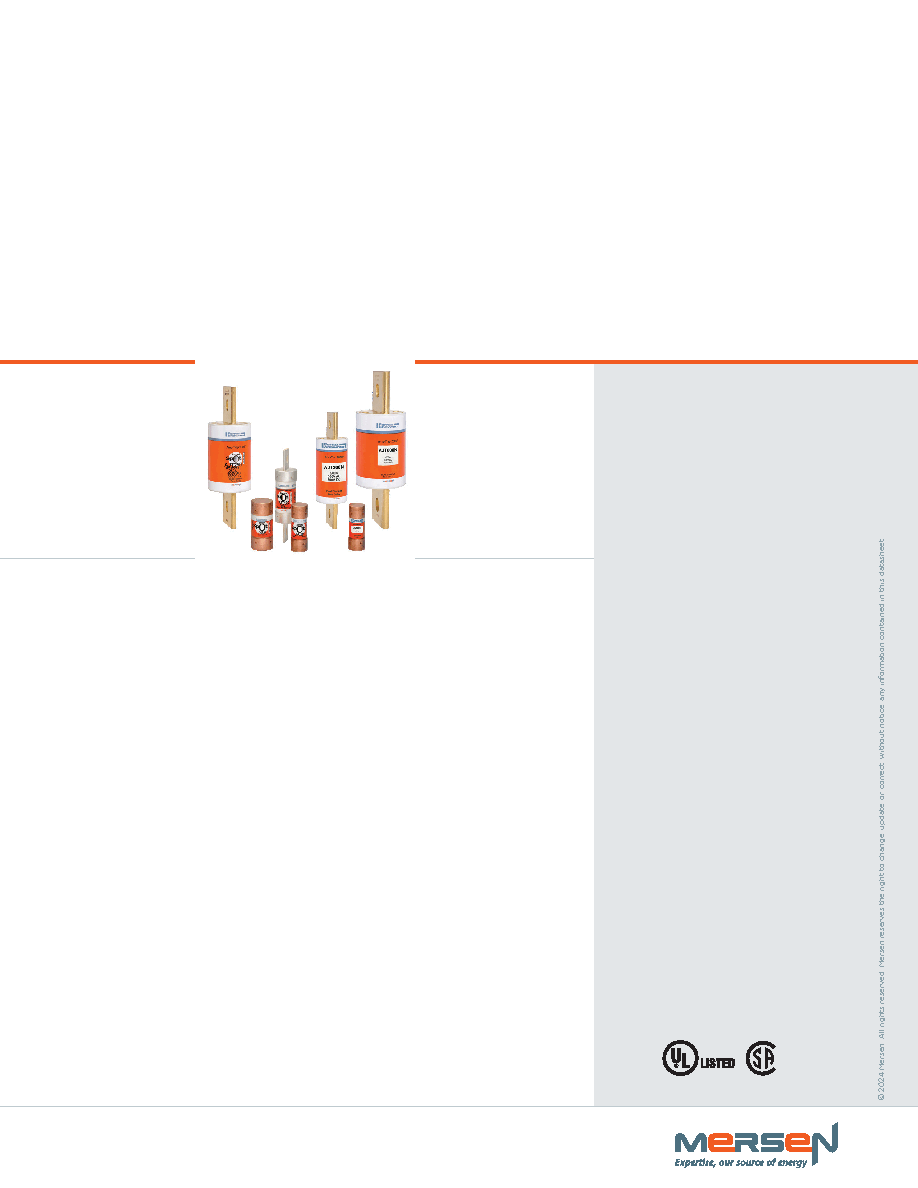

Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot®

visual open fuse indicator. With advanced material technology the AJT

fuse provides IEC Type 2 No Damage protection to main, feeder, and

branch circuits, for all types of loads — yet, they require only half the

mounting space needed for 600VAC Class RK fuses. AJT’s time-delay

characteristics are ideal for handling typical motor and transformer inrush

currents, while also providing superior current-limiting ability.

FEATURES/BENEFITS:

• Non-indicating or solid state SmartSpot visual open fuse indicator

• Time-delay for motor starting and transformer inrush

• 300kA interrupting rating - self-certified, UL witnessed tests

• Extremely current-limiting for low peak let-thru current

• Non-indicating fuses suitable for use in NEC Class I Division 2 hazardous

locations1

• Recommended for Arc Flash energy reduction

• Small footprint requires less mounting space and allows smaller,

more economical fuse blocks

• Easy 2-to-1 selectivity for prevention of nuisance shutdowns

• Unique Class J dimensions prevent replacement errors

• High-visibility orange label gives instant brand recognition

• Metal-embossed date and catalog number for traceability and

lasting identification

• Fiberglass body provides dimensional stability in harsh environments

• High-grade silica filler ensures fast arc quenching

• Optional EI open fuse indicator/switch mount for AJT70 to 600

1.

Mersen highly recommends installation in Class I Division 2 certified sealed enclosure.
