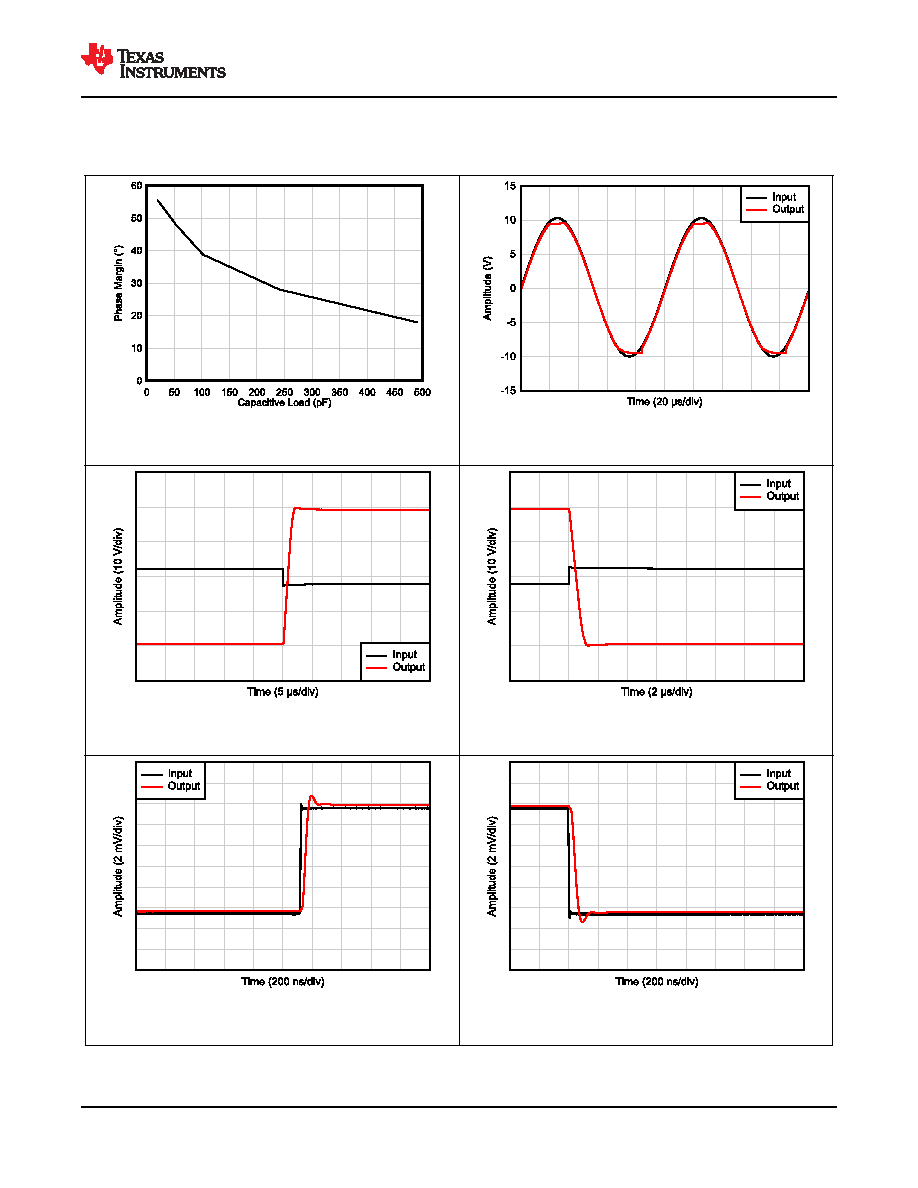

5.10 Typical Characteristics: TL08xH (continued)

at TA = 25°C, VS = 40V ( ±20V), VCM = VS / 2, RLOAD = 10kΩ connected to VS / 2, and CL = 20pF (unless otherwise noted)

Figure 5-25. Phase Margin vs Capacitive Load

VS = ±10V, VIN = VOUT

Figure 5-26. No Phase Reversal

G = –10

Figure 5-27. Positive Overload Recovery

G = –10

Figure 5-28. Negative Overload Recovery

CL = 20pF, G = 1, 10mV step response

Figure 5-29. Small-Signal Step Response, Rising

CL = 20pF, G = 1, 10mV step response

Figure 5-30. Small-Signal Step Response, Falling

www.ti.com

TL081, TL081A, TL081B, TL081H

TL082, TL082A, TL082B, TL082H

TL084, TL084A, TL084B, TL084H

SLOS081O – FEBRUARY 1977 – REVISED SEPTEMBER 2025

Submit Document Feedback

Product Folder Links: TL081 TL081A TL081B TL081H TL082 TL082A TL082B TL082H TL084 TL084A TL084B TL084H
