Document Number: 001-84932 Rev. *N

Page 130 of 139

PSoC® 5LP: CY8C58LP Family

Datasheet

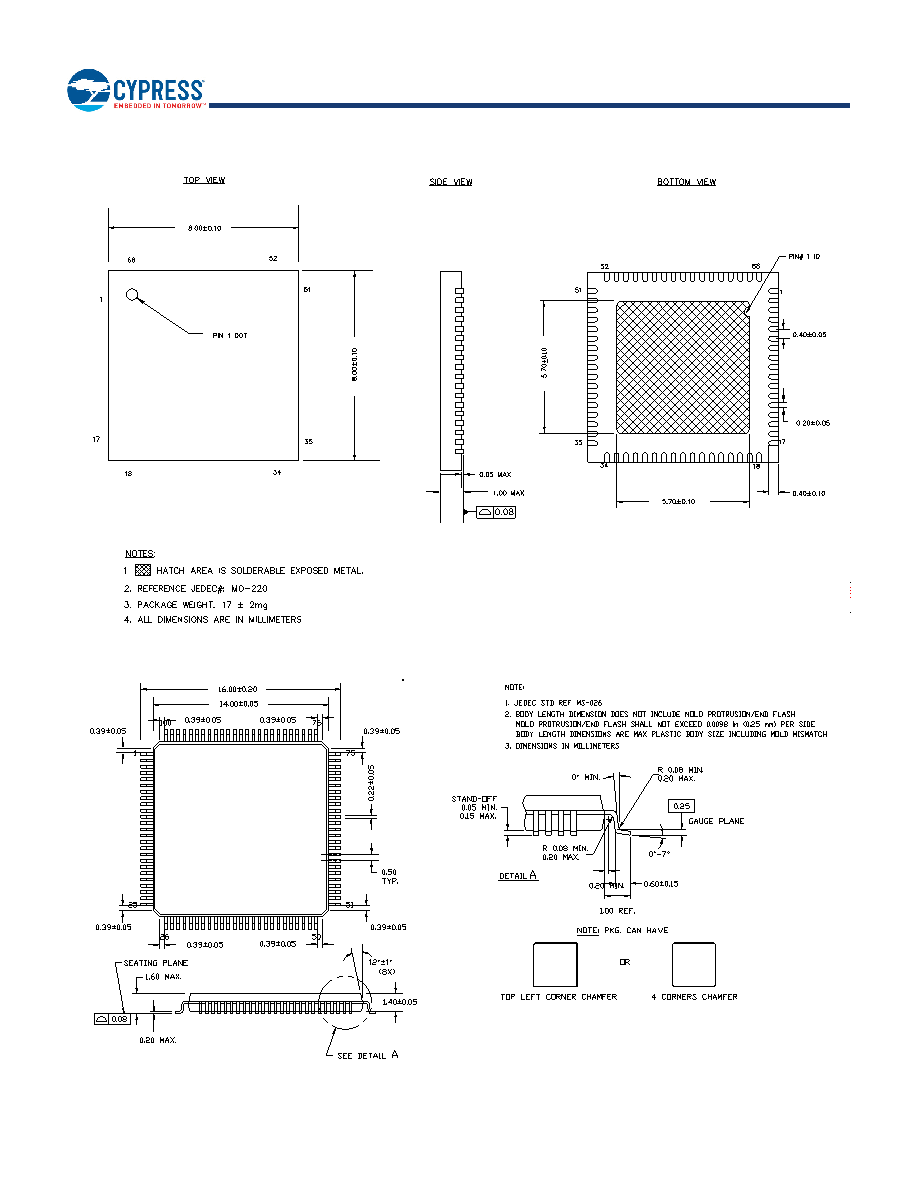

Figure 13-1. 68-pin QFN 8x8 with 0.4 mm Pitch Package Outline (Sawn Version)

Figure 13-2. 100-pin TQFP (14 x 14 x 1.4 mm) Package Outline

001-09618 *E

51-85048 *K
