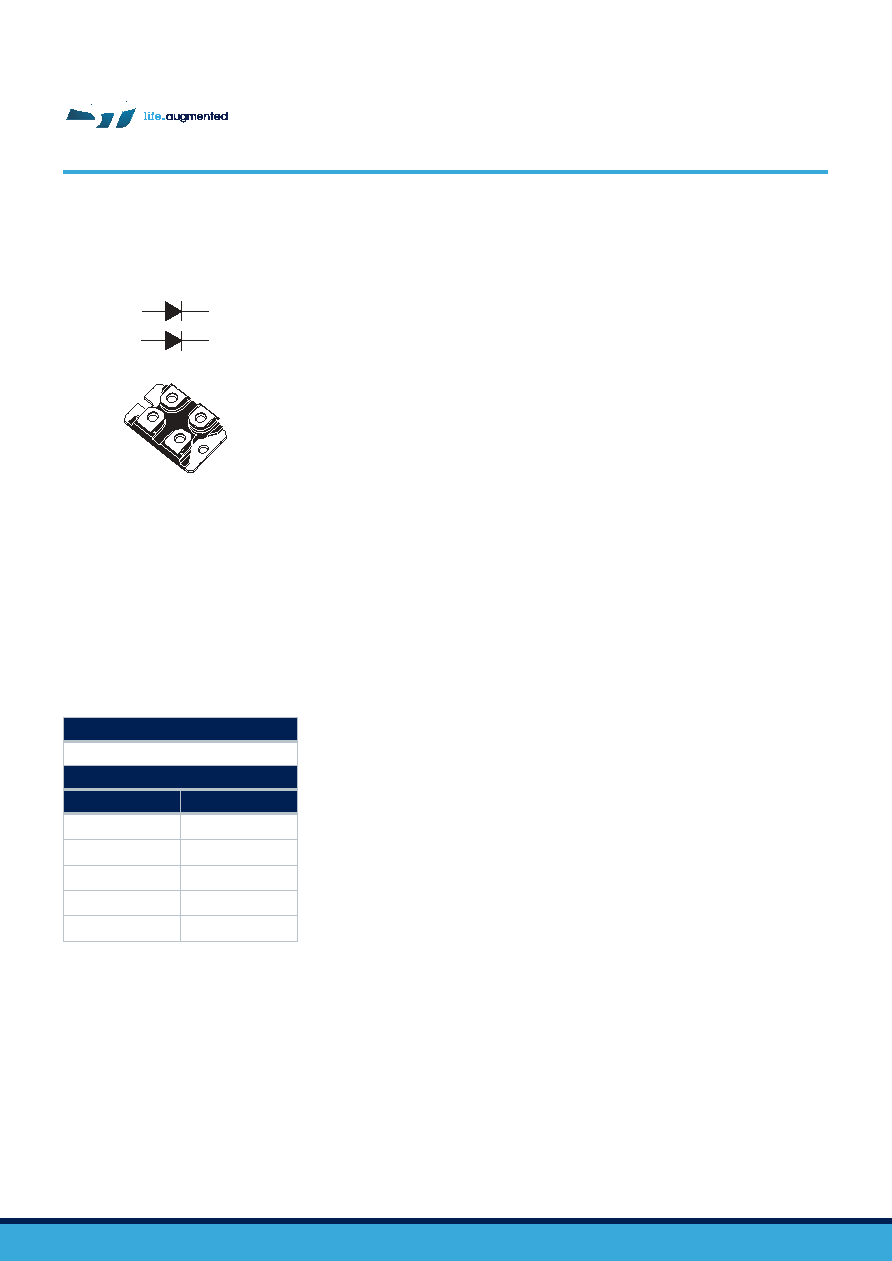

A1

K1

A2

K2

ISOTOP

A1

K1

A2

K2

Features

•

Combines recovery and reverse voltage performance

•

Ultrafast, soft and noise-free recovery

•

Low inductance and low capacitance allow simpler layout

•

Insulated package ISOTOP:

–

Insulated voltage: 2500 VRMS sine

•

ECOPACK®2 compliant

Applications

•

Switching diode

•

Welding equipments

•

Telecom power

Description

Dual rectifiers suited for Switch Mode Power Supply and high frequency DC to DC

converters.

Packaged in ISOTOP, the STTH20003 is intended for use in low voltage, high

frequency inverters, free wheeling operation, welding equipment and Telecom power

supplies.

Product status link

STTH20003

Product summary

Symbol

Value

IF(AV)

2 x 100 A

VRRM

300 V

Tj (max.)

150 °C

VF (typ.)

0.80 V

trr (max.)

90 ns

300 V ultrafast high voltage rectifier

STTH20003

Datasheet

DS1796 - Rev 3 - June 2018
