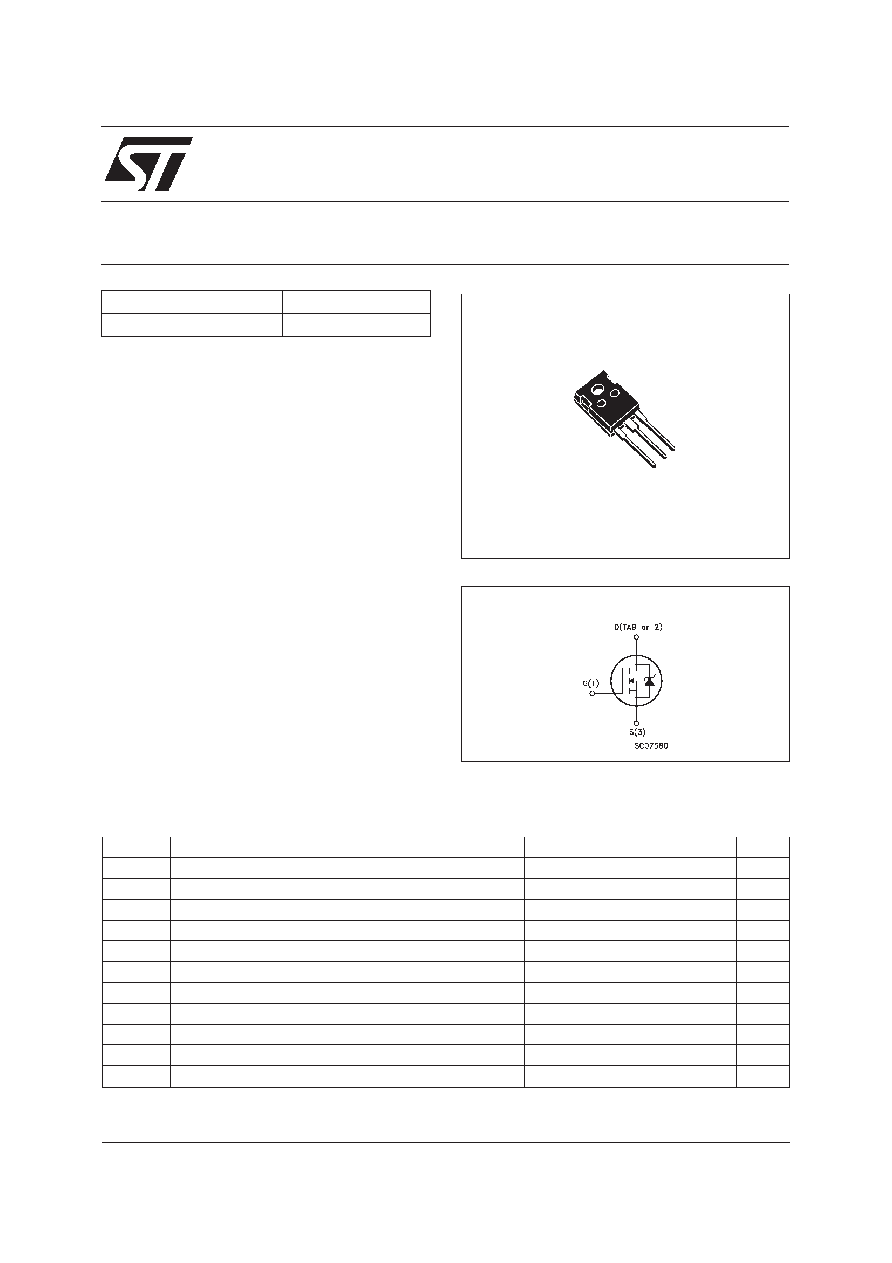

IRFP450

N - CHANNEL 500V - 0.33

Ω - 14A - TO-247

PowerMESH

™ MOSFET

s

TYPICAL RDS(on) = 0.33

Ω

s

EXTREMELY HIGH dv/dt CAPABILITY

s

100% AVALANCHE TESTED

s

VERY LOW INTRINSIC CAPACITANCES

s

GATE CHARGE MINIMIZED

DESCRIPTION

This power MOSFET is designed using the

company’s consolidated strip layout-based MESH

OVERLAY

™ process. This technology matches

and improves the performances compared with

standard parts from various sources.

APPLICATIONS

s

HIGH CURRENT SWITCHING

s

UNINTERRUPTIBLE POWER SUPPLY (UPS)

s

DC/DC COVERTERS FOR TELECOM,

INDUSTRIAL, AND LIGHTING EQUIPMENT.

®

INTERNAL SCHEMATIC DIAGRAM

August 1998

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Value

Uni t

VDS

Drain-source Volt age (VGS =0)

500

V

VDGR

Drain- gate Voltage (RGS =20 k

Ω)

500

V

VGS

Gat e-source Voltage

± 20

V

ID

Drain Current (continuous) at Tc =25

o C14

A

ID

Drain Current (continuous) at Tc =100

oC8.7

A

IDM(

•)

Drain Current (pulsed)

56

A

Ptot

Tot al Dissipation at Tc =25

oC190

W

Derating F act or

1.5

W/

oC

dv/dt(1)

Peak Diode Recovery voltage slope

3.5

V/ ns

Tstg

Storage T emperat ure

-65 to 150

oC

Tj

Max. O perating Junction Temperature

150

oC

(

•) Pulse width limited by safe operating area

(1)ISD

≤14 A, di/dt ≤ 130 A/µs, VDD ≤ V(BR)DSS,Tj ≤ TJMAX

TYPE

VDSS

RDS(on)

ID

I RFP450

500 V

< 0.4

Ω

14 A

1

2

3

TO-247

1/8
