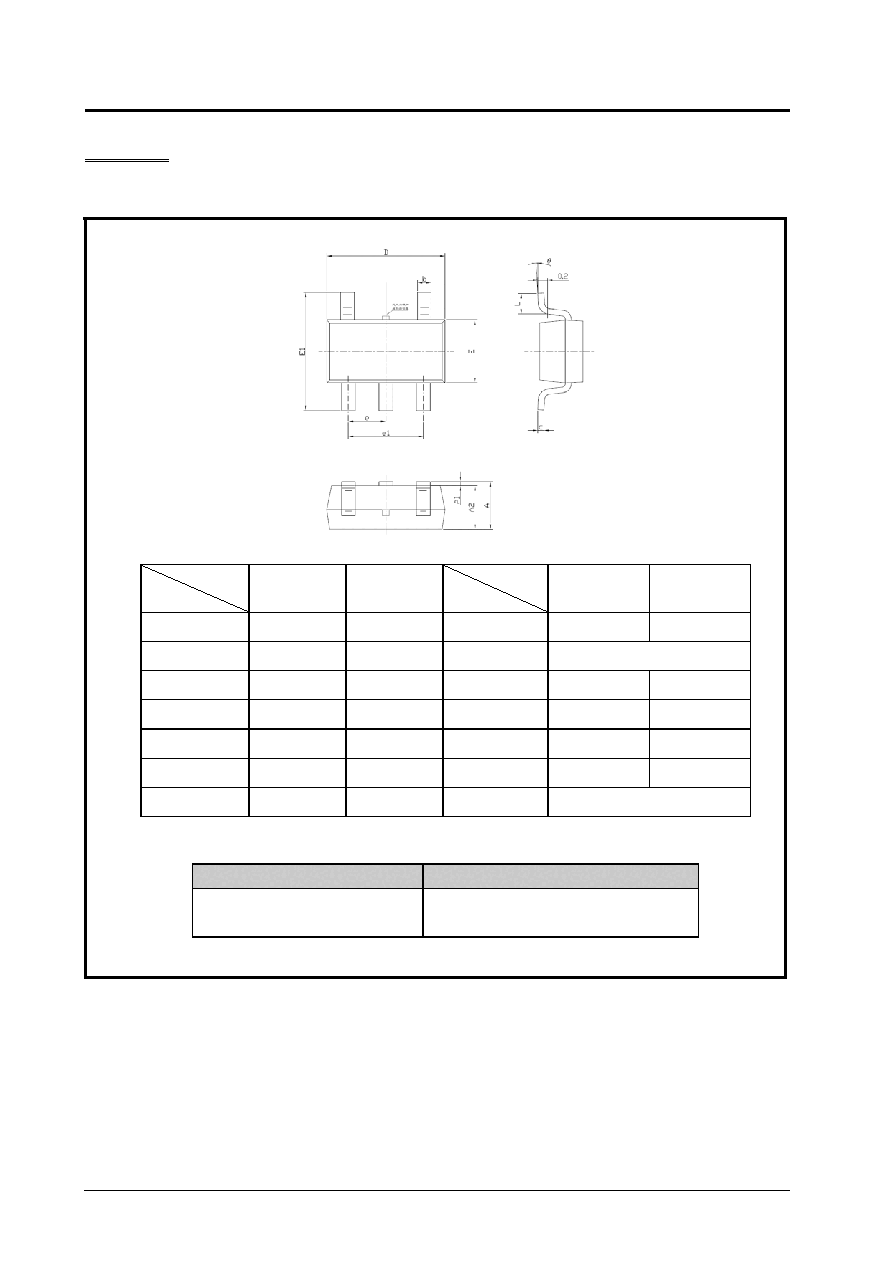

background image
AP8003
Chipown
www.chipown.com
© 2018 无锡芯朋微电子股份有限公司
Rev.1805
2018 年 5 月
7 / 10
封装信息
SOT23-5L 封装外形及尺寸
尺寸
符号
最小(mm)
最大(mm)
尺寸
符号
最小(mm)
最大(mm)
A
1.050
1.250
E1
2.650
2.950
A1
0.000
0.100
e
0.950(BSC)
A2
1.050
1.150
e1
1.800
2.000
b
0.300
0.500
L
0.300
0.600
c
0.100
0.200
Θ
0º
8º
D
2.850
3.050
E
1.500
1.700
备注：
XXX 为内部代码
备注
:
1. 此制图可以不经通知进行调整;
2. 器件本体尺寸不含模具飞边；
表层丝印
封装
8AXXX
SOT23-5L
