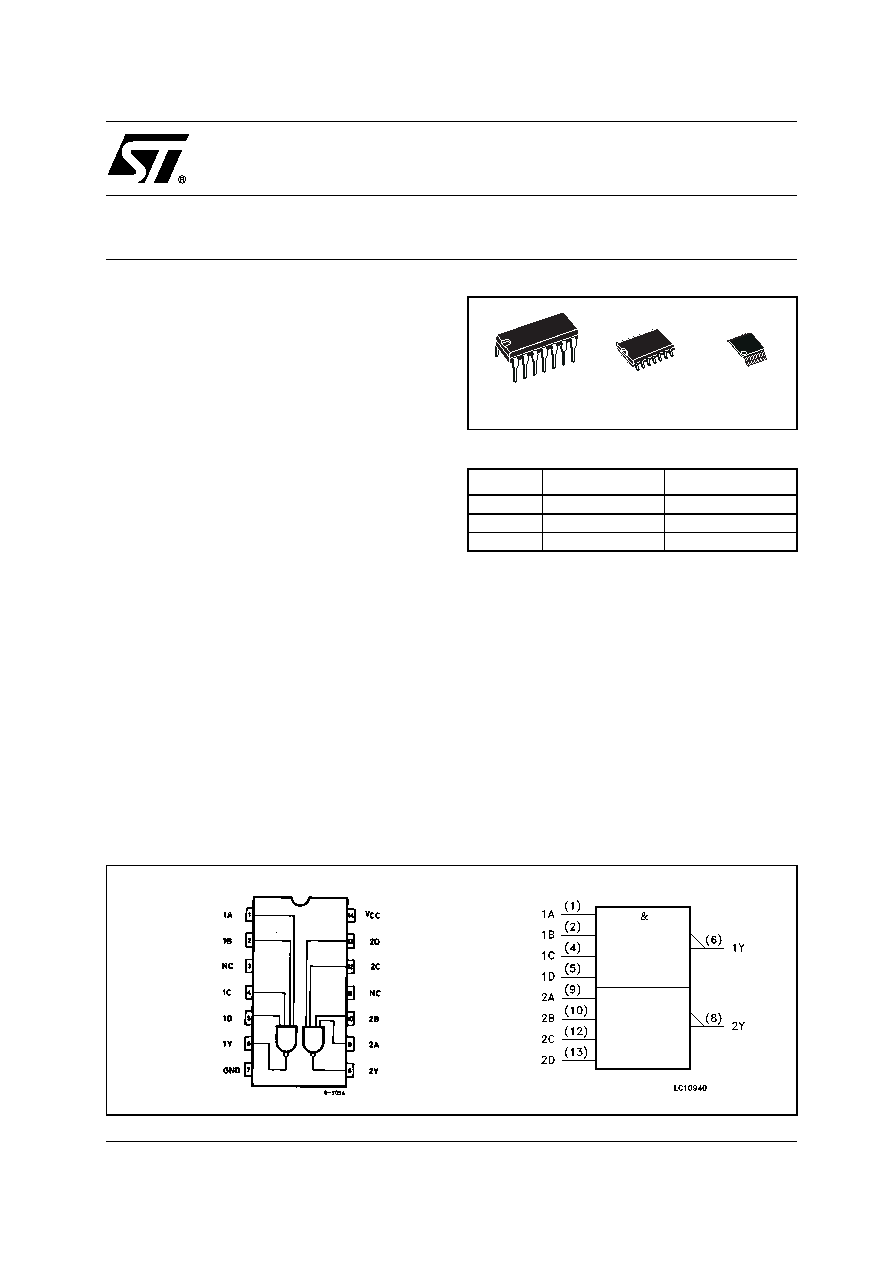

1 / 8 page  1/8 July 2001 s HIGH SPEED: tPD = 9ns (TYP.) at VCC = 6V s LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C s HIGH NOISE IMMUNITY: VNIH = VNIL = 28 % VCC (MIN.) s SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 4mA (MIN) at VCC = 4.5V s BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL s WIDE OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 6V s PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 20 DESCRIPTION The M74HC20 is an high speed CMOS DUAL 4-INPUT NAND GATE fabricated with silicon gate C2MOS technology. The internal circuit is composed of 3-stage including buffered output, which gives high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge and transient excess voltage. M74HC20 DUAL 4-INPUT NAND GATE PIN CONNECTION AND IEC LOGIC SYMBOLS ORDER CODES PACKAGE TUBE T & R DIP M74HC20B1R SOP M74HC20M1R M74HC20RM13TR TSSOP M74HC20TTR TSSOP DIP SOP |
