AS7262 − Soldering & Storage Information

Soldering Information

The module has been tested and has demonstrated an ability

to be reflow soldered to a PCB substrate. The solder reflow

profile describes the expected maximum heat exposure of

components during the solder reflow process of product on a

PCB. Temperature is measured on top of component. The

components should be limited to a maximum of three passes

through this solder reflow profile.

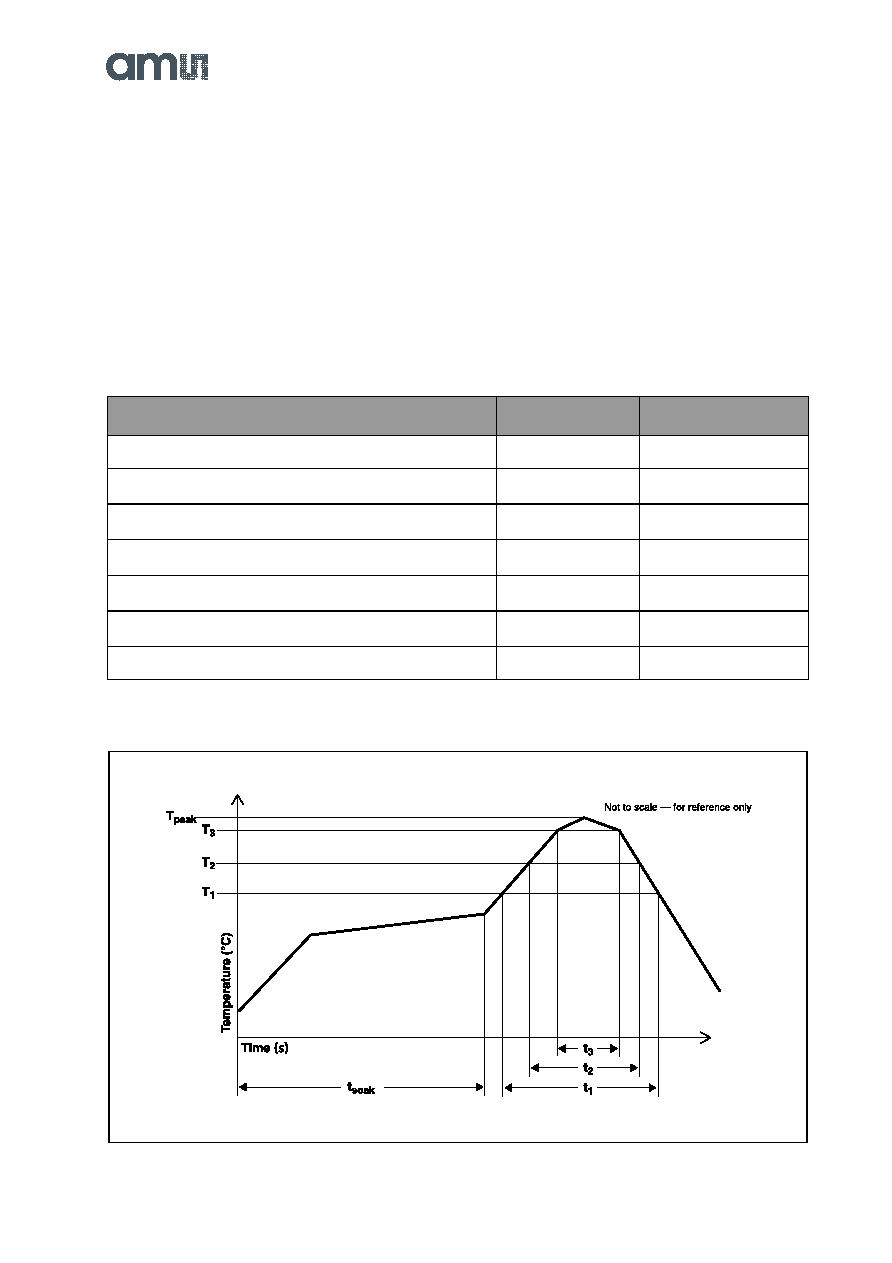

Figure 37:

Solder Reflow Profile

Figure 38:

Solder Reflow Profile Graph

Parameter

Reference

Device

Average temperature gradient in preheating

2.5

°C/s

Soak time

tSOAK

2 to 3 minutes

Time above 217

°C(T

1)t1

Max 60s

Time above 230

°C(T

2)t2

Max 50s

Time above Tpeak - 10°C(T3)t3

Max 10s

Peak temperature in reflow

Tpeak

260

°C

Temperature gradient in cooling

Max -5

°C/s

Soldering & Storage

Information
