The ACTF552B/446.0/QCC8C is a low-loss, compact, and economical surface-acoustic-wave

(SAW) filter in a surface-mount ceramic QCC8C case for FRS & PMR mobile radio applications with

centre frequency 446.000 MHz.

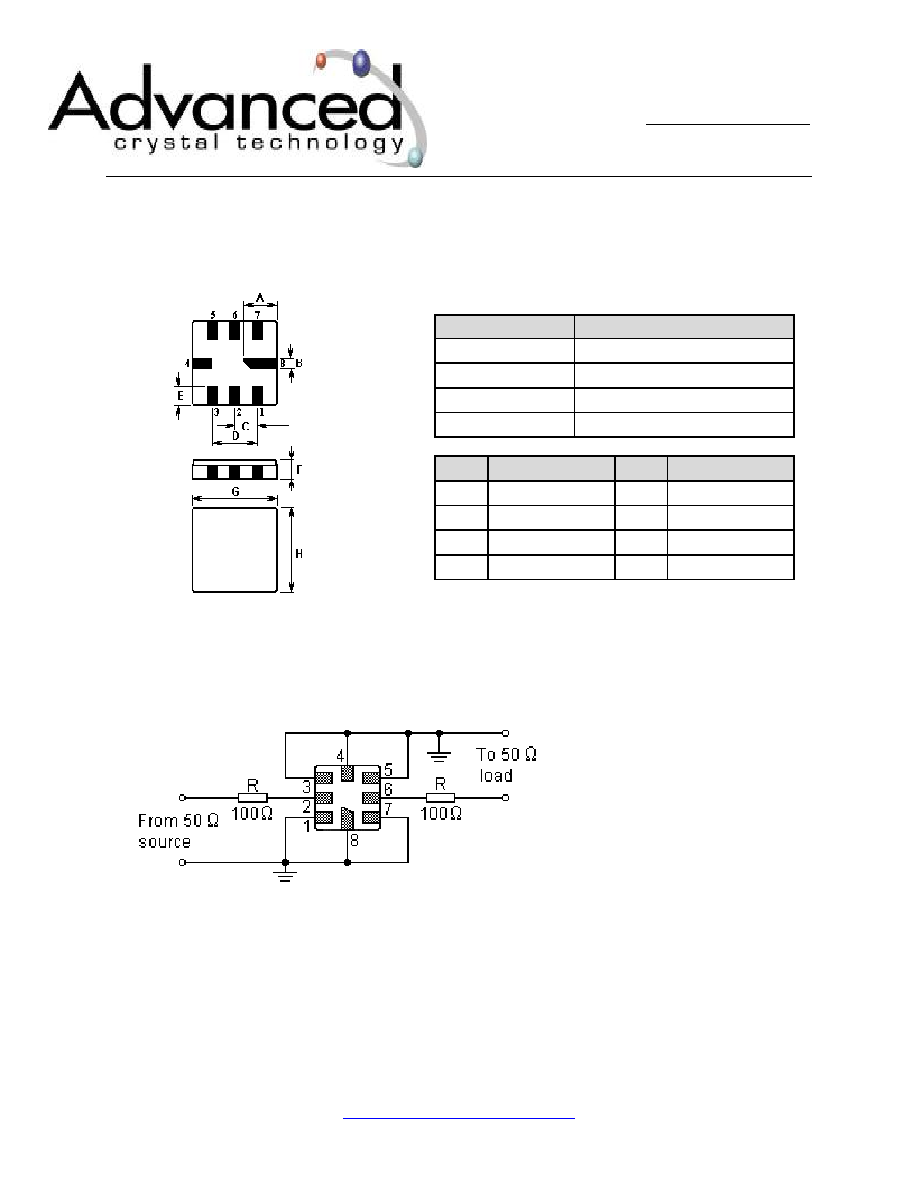

1. Package Dimension (QCC8C)

3. Test Circuit

Pin

Configuration

2

Input / Output

6

Output / Input

1,3,5,7

To be Grounded

4,8

Case Ground

Sign

Data (unit: mm)

Sign

Data (unit: mm)

A

2.08

E

1.20

B

0.60

F

1.35

C

1.27

G

5.00

D

2.54

H

5.00
