RL78/D1A
3. ELECTRICAL SPECIFICATIONS (J GRADE PRODUCT)
R01DS0463EJ0120 Rev. 1.20
Page 82 of 135
Mar 31, 2026

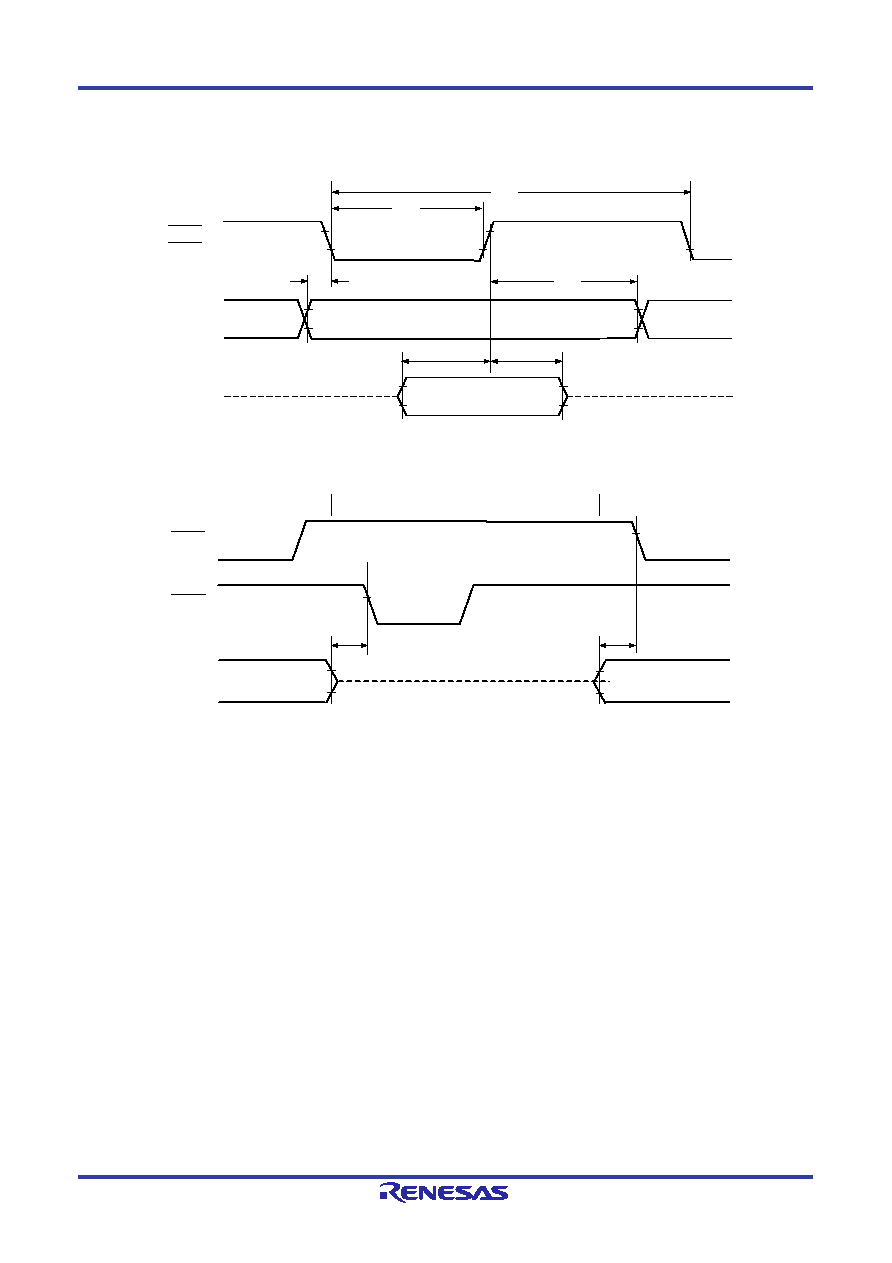

Figure 3-14. LCD Bus Interface AC timing (2/2)
(c) LCDB mod80 mode timing
Data
Hi-Z
Hi-Z
Data
tDOH
tDOS
tDIH
tDIS
DBWR
DBRD
DBD[7:0]
(Write)
DBD[7:0]
(Read)
tCL
tCYC
(d) Mode80 turnaround timing
Data
Data
tOD
tDOS
Hi-Z
Write
Read
Write
DBWR
DBRD
DBD[7:0]
