E3ZM

4

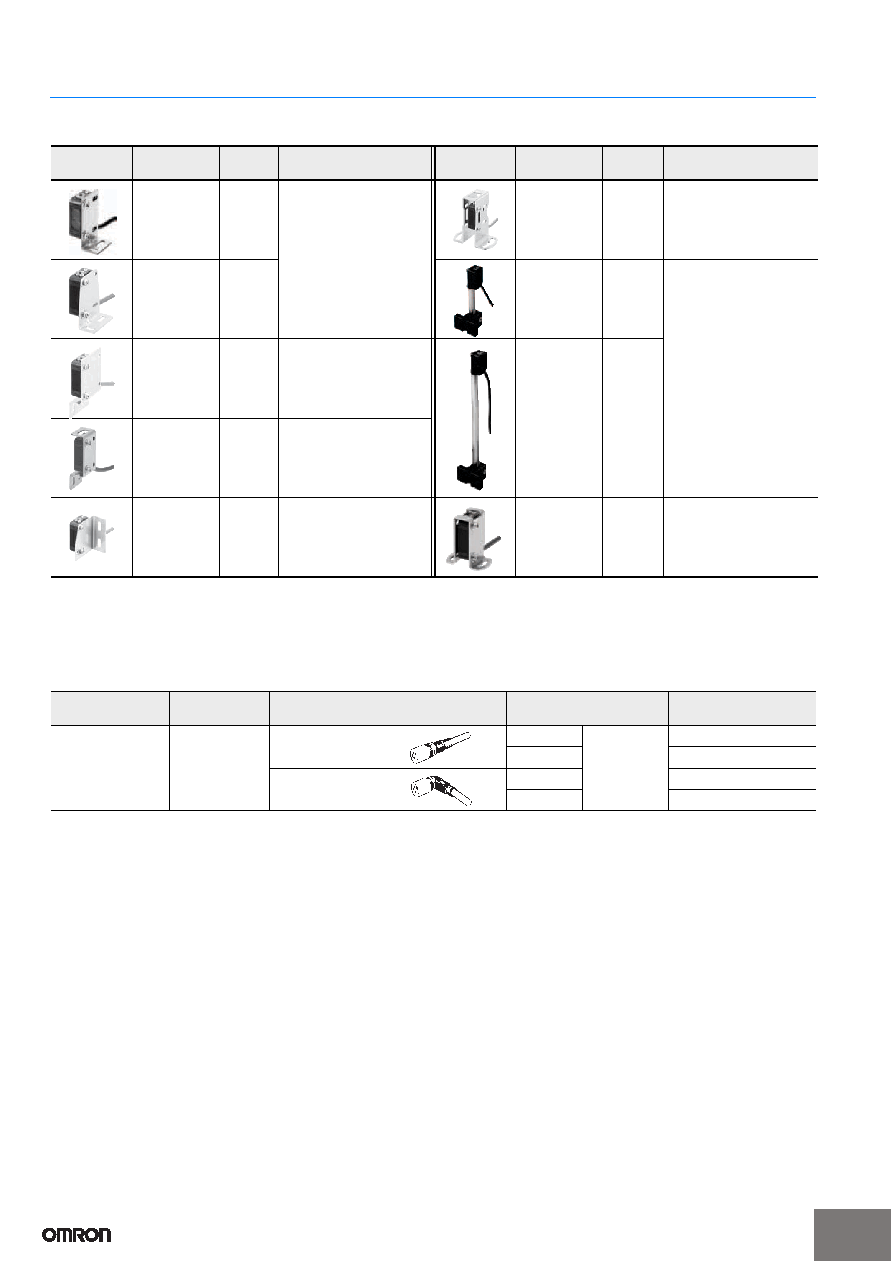

Mounting Brackets A Mounting Bracket is not enclosed with the Sensor. Order a Mounting Bracket separately if required.

(Refer to Dimensions on E39-L/F39-L/E39-S/E39-R.)

Note: When using a Through-beam Sensor, order one Mounting Bracket for the Receiver and one for the Emitter.

*1. Cannot be used for Standard Connector models with mounting surface on the bottom. In that case, use Pre-wired Connector models.

*2. Cannot be used for Standard Connector models.

Sensor I/O Connectors (Sockets on One Cable End)

(Models for Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)

(Refer to Dimensions on XS3.)

Note: When using a Through-beam Sensor, order one Mounting Bracket for the Receiver and one for the Emitter.

*1. Cable specifications: Outer coating material: PVC, Nut material: Stainless steel, Degree of protection: IP67 (IEC 60529)

*2. The connector will not rotate after connecting.

*3. The cable is fixed at an angle of 180° from the sensor emitter/receiver surface.

Appearance

Model

(Material)

Quantity

Remarks

Appearance

Model

(Material)

Quantity

Remarks

E39-L153

(SUS304)

*1

1

Mounting Brackets

E39-L98

(SUS304)

*2

1

Metal Protective Cover

Bracket

E39-L104

(SUS304)

*1

1

E39-L150

(SUS304)

1 set

(Sensor adjuster)

Easily mounted to the

aluminum frame rails of

conveyors and easily

adjusted.

For left to right adjustment

E39-L43

(SUS304)

*2

1

Horizontal Mounting

Bracket

E39-L151

(SUS304)

1 set

E39-L142

(SUS304)

*2

1

Horizontal Protective Cover

Bracket

E39-L44

(SUS304)

1

Rear Mounting Bracket

E39-L144

(SUS304)

*2

1

Compact Protective Cover

Bracket

Size

Cable

Appearance

Cable type

Model

M8 (4 pins) *1

Standard

2 m

4-wire

XS3F-E421-402-A

5 m

XS3F-E421-405-A

2 m

XS3F-E422-402-A

5 m

XS3F-E422-405-A

Straight *2

L-shaped *2 *3
