 4 / 9 page
background image

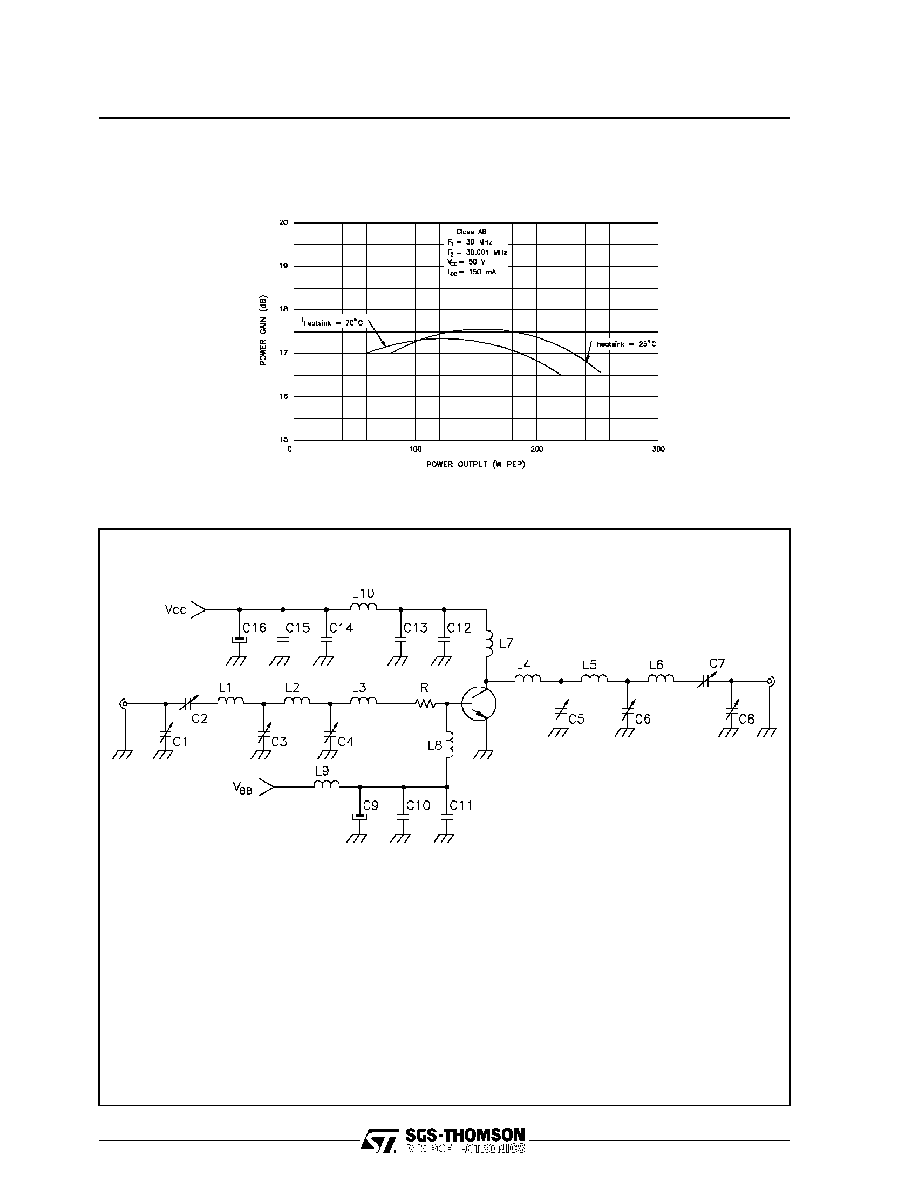

POWER GAIN vs POWER OUTPUT PEP
TYPICAL PERFORMANCE (cont’d)
TEST CIRCUIT SSB - CLASS AB - 30 MHz
C1
: Arco 429
C2
: Arco 4615
C3, C6
: Arco 4213
C4, C5,
C7
: Arco 4611
C8
: Arco 427
C9
: 470
µF, 40V
C10, C14 : 100nF, 63V
C11, C13,
C15
: 1nF
C12
: 10nF
C16
: 220
µF, 63V
L1
: 5 Turns, Diameter 10mm, 1.3mm Wire, Length 15mm
L2
: 2 Turns, Diameter 12mm, 2mm Wire, Length 8mm
L3
: 1 Turn, Diameter 12mm, 2mm Wire, Length 5mm
L4
: Hair Pin Copper Foil 20 x 5mm
L5
: 1 Turn, Diameter 12mm, 2mm Wire, Length 8mm
L6
: 5 Turns, Diameter 8mm, 1.3mm Wire, Length 18mm
L7
: 3 Turns, Diameter 8mm, 1.3mm Wire, Length 15mm
R
: 0.25
Ω*
* 4 Resistors 1
Ω 0.5W in parallel
SD1728 (TH430)
4/9
