ST13007 Datasheet(PDF) 1 Page - STMicroelectronics |
|
|
|||||||||||||||||||||||||||||
ST13007 Datasheet(HTML) 1 Page - STMicroelectronics |
|
|

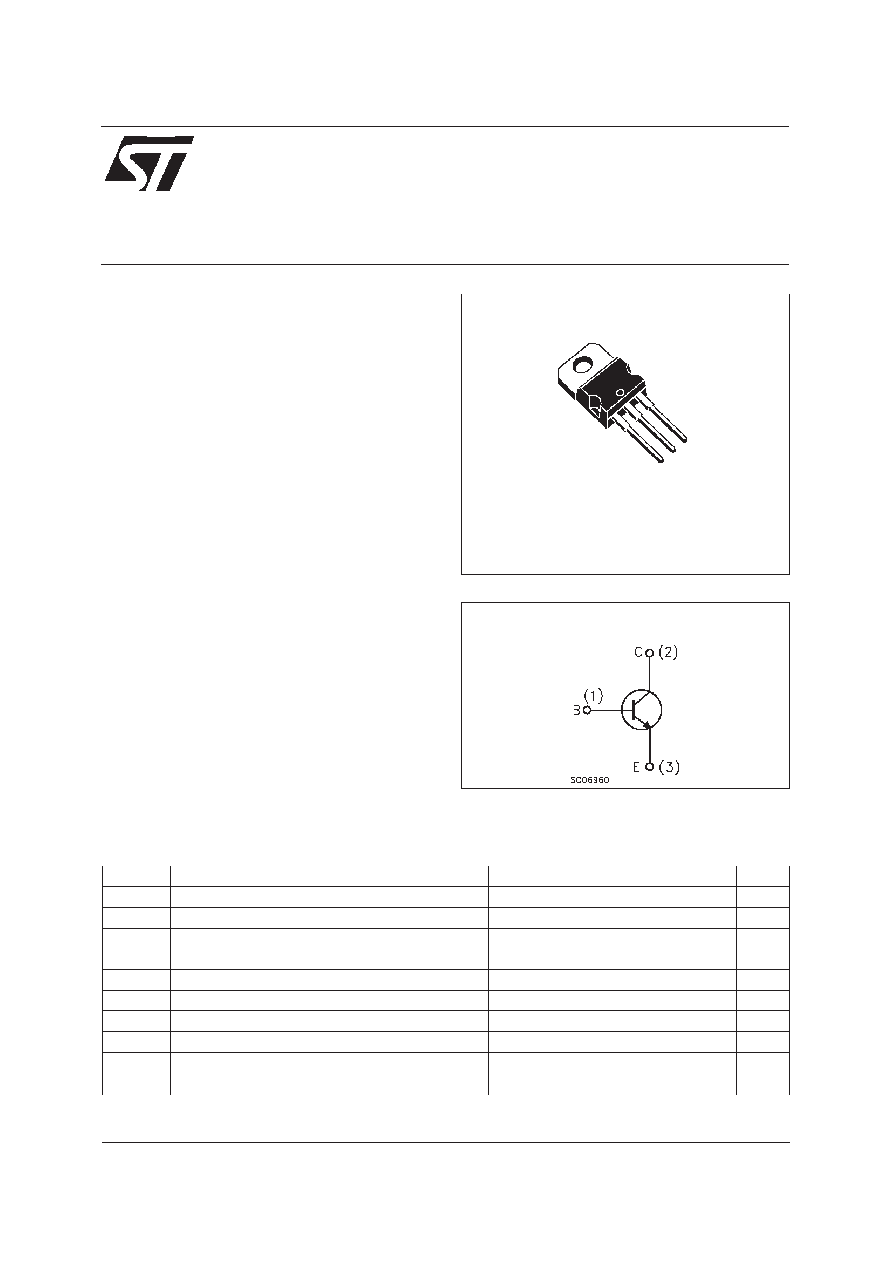

1 / 6 page  ST13007 HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR s IMPROVED SPECIFICATION: - LOWER LEAKAGE CURRENT - TIGHTER GAIN RANGE - DC CURRENT GAIN PRESELECTION - TIGHTER STORAGE TIME RANGE s HIGH VOLTAGE CAPABILITY s NPN TRANSISTOR s LOW SPREAD OF DYNAMIC PARAMETERS s MINIMUM LOT-TO-LOT SPREAD FOR RELIABLE OPERATION s VERY HIGH SWITCHING SPEED s FULLY CHARACTERIZED AT 125 oC s LARGE RBSOA APPLICATIONS s ELECTRONIC BALLASTS FOR FLUORESCENT LIGHTING s SWITCH MODE POWER SUPPLIES DESCRIPTION The device is manufactured using high voltage Multi Epitaxial Planar technology for high switching speeds and high voltage capability. They use a Cellular Emitter structure to enhance switching speeds. INTERNAL SCHEMATIC DIAGRAM July 1998 ABSOLUTE MAXIMUM RATINGS Symbol Parameter Val ue Uni t VCEV Collector-Emit ter Voltage (VBE = -1.5V) 700 V VCEO Collector-Emit ter Voltage (IB = 0) 400 V VEBO Emitter-Base Voltage (IC =0) 9 V IC Collector Current 8 A ICM Collector Peak Current 16 A IB Base Current 4 A IBM Base Peak Current 8 A Ptot Tot al Dissipation at Tc ≤ 25 oC 80 W Tstg Storage Temperature -65 to 150 oC Tj Max. O perat ing Junction Temperature 150 oC 1 2 3 TO-220 ® 1/6 |
