EGF3JB Datasheet(PDF) 1 Page - TAITRON Components Incorporated

Part # EGF3JB
Description  3.0A Sintered Glass Passivated Super Fast Rectifier
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  TAITRON [TAITRON Components Incorporated]
Direct Link  http://www.taitroncomponents.com
Logo TAITRON - TAITRON Components Incorporated

EGF3JB Datasheet(HTML) 1 Page - TAITRON Components Incorporated

  EGF3JB Datasheet HTML 1Page - TAITRON Components Incorporated EGF3JB Datasheet HTML 2Page - TAITRON Components Incorporated EGF3JB Datasheet HTML 3Page - TAITRON Components Incorporated EGF3JB Datasheet HTML 4Page - TAITRON Components Incorporated EGF3JB Datasheet HTML 5Page - TAITRON Components Incorporated
Zoom Inzoom in Zoom Outzoom out

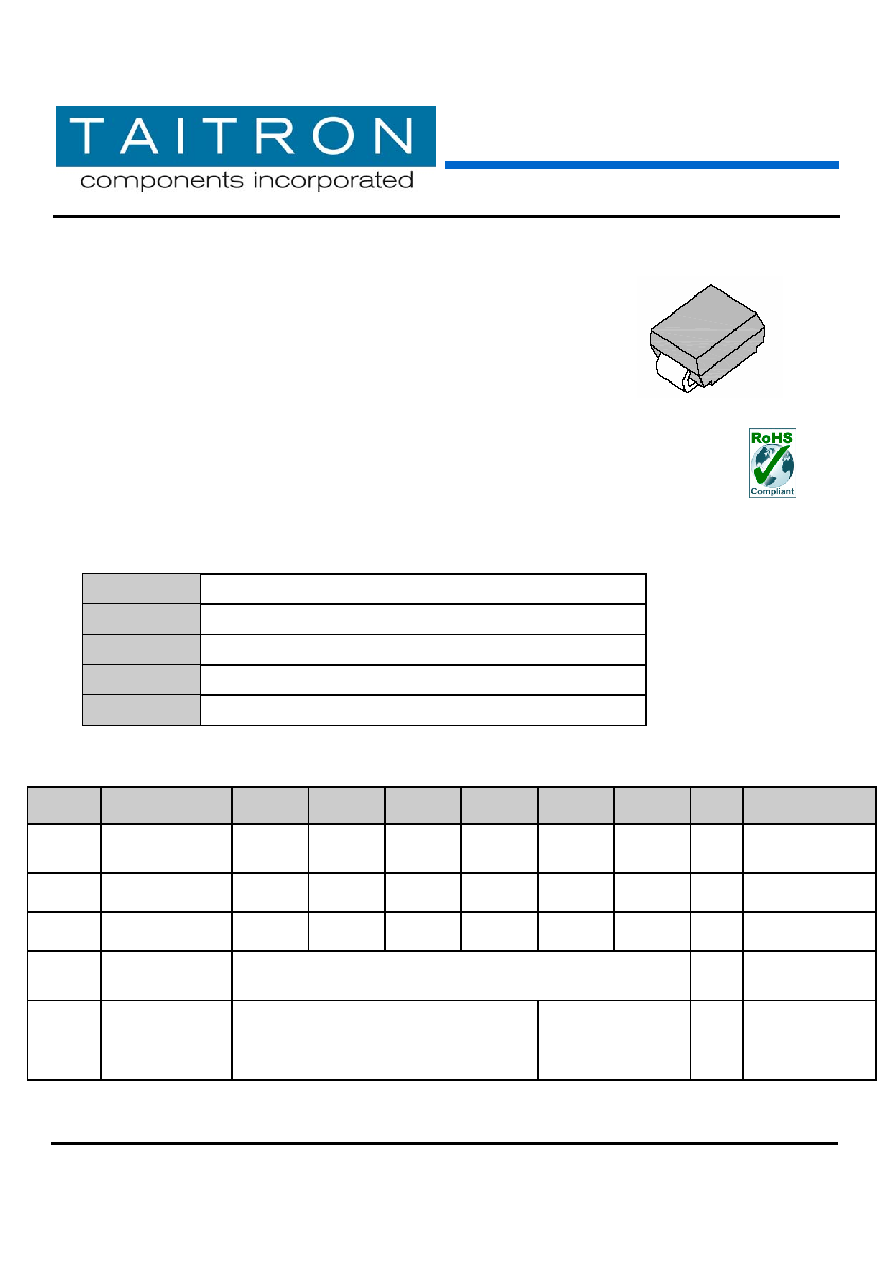

 1 / 5 page
background image
Rev. A/AH 2008-06-03
EGF3AB – EGF3KB
TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com
Page 1 of 5
Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060
Fax: (800)-TAITFAX
(800)-824-8329 (661)-257-6415
3.0A Sintered Glass Passivated
Super Fast Rectifier
3.0A Sintered Glass Passivated Super Fast Rectifier
Features
• Sintered glass passivated (SGP) rectifier chip
• Glass passivated cavity-free junction
• Ideal for surface mount automotive applications
• Built-in strain relief
• Easy pick and place
• High temperature soldering guaranteed:250°C/10 seconds,
at terminals
• RoHS Compliance
Mechanical Data
Case:
JEDEC DO-214AA(SMB) molded plastic over passivated chip
Epoxy:
Plastic package has UL flammability classification 94V-0
Terminals:
Solder plated, solderable per MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Weight:
0.003 ounce, 0.093 gram
Maximum Ratings and Electrical Characteristics (T A=25ºC unless noted otherwise)
Symbol
Description
EGF3AB
EGF3BB
EGF3DB
EGF3GB
EGF3JB
EGF3KB
Unit
Conditions
VRRM
Maximum
Repetitive Peak
Reverse Voltage
50
100
200
400
600
800
V
VRMS
Maximum RMS
Voltage
35
70
140
280
420
560
V
VDC
Maximum DC
Blocking Voltage
50
100
200
400
600
800
V
IF(AV)
Maximum Average
Forward Rectified
Current
3.0
A
TL=110° C
IFSM
Peak Forward
Surge Current
115
105
A
8.3ms single half
sine-wave
superimposed on
rated load (JEDEC
Method)
SMB


Similar Part No. - EGF3JB
