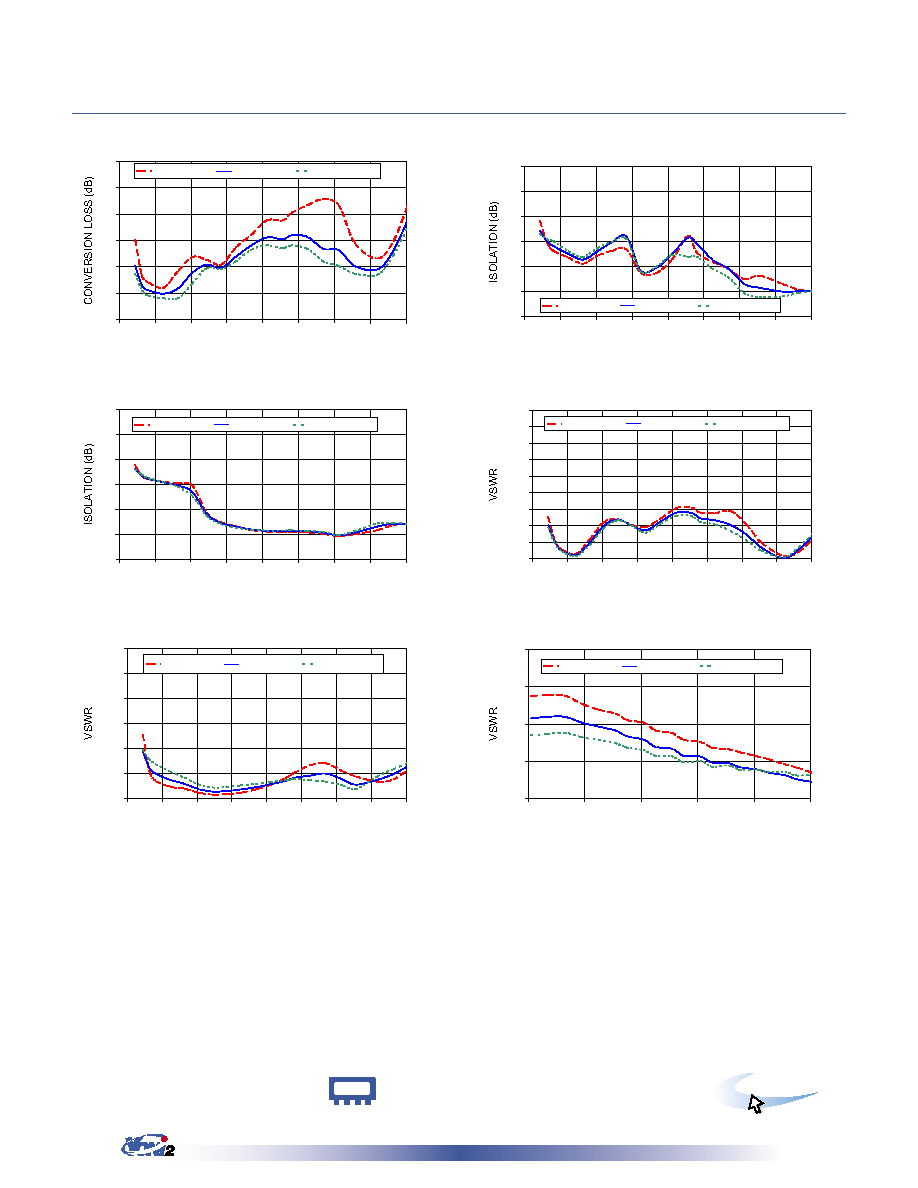

Performance Charts

Page 2 of 2

ADE-R30W+

CONVERSION LOSS

4

5

6

7

8

9

10

0

500

1000 1500 2000 2500 3000 3500 4000

FREQUENCY (MHz)

LO=+4 dBm

LO=+7 dBm

LO=+10 dBm

at IF Freq of 30 MHz

ADE-R30W+

L-R ISOLATION

20

30

40

50

60

70

80

0

500

1000 1500 2000 2500 3000 3500 4000

FREQUENCY (MHz)

LO=+4 dBm

LO=+7 dBm

LO=+10 dBm

ADE-R30W+

RF VSWR

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

9.0

10.0

0

500

1000 1500 2000 2500 3000 3500 4000

FREQUENCY (MHz)

LO=+4 dBm

LO=+7 dBm

LO=+10 dBm

ADE-R30W+

L-I ISOLATION

0

10

20

30

40

50

60

0

500

1000 1500 2000 2500 3000 3500 4000

FREQUENCY (MHz)

LO=+4 dBm

LO=+7 dBm

LO=+10 dBm

ADE-R30W+

LO VSWR

1.0

4.0

7.0

10.0

13.0

16.0

19.0

0

500

1000 1500 2000 2500 3000 3500 4000

FREQUENCY (MHz)

LO=+4 dBm

LO=+7 dBm

LO=+10 dBm

ADE-R30W+

IF VSWR

1.0

1.5

2.0

2.5

3.0

0

200

400

600

800

1000

FREQUENCY (MHz)

LO=+4 dBm

LO=+7 dBm

LO=+10 dBm

ADE-R30W+
