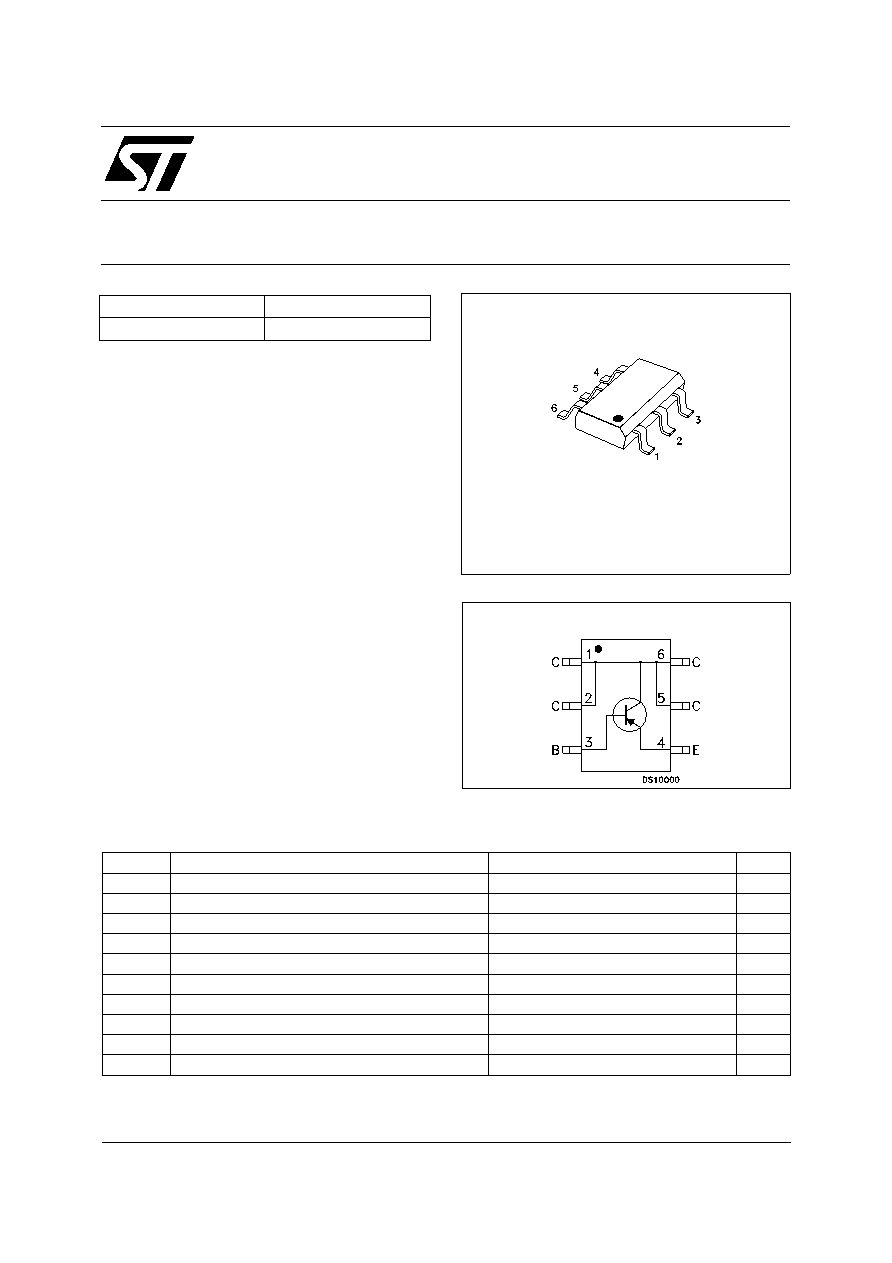

background image
STT818B
HIGH GAIN LOW VOLTAGE
PNP POWER TRANSISTOR
s
VERY LOW COLLECTOR TO EMITTER
SATURATION VOLTAGE
s
DC CURRENT GAIN > 100 (hFE)
s
3 A CONTINUOUS COLLECTOR CURRENT
(IC)
s
SURFACE-MOUNTING SOT23-6L PACKAGE
IN TAPE & REEL
APPLICATIONS
s
POWER MANAGEMENT IN PORTABLE
EQUIPMENTS
s
SWITCHING REGULATOR IN BATTERY
CHARGER APPLICATIONS
DESCRIPTION
The device is manufactured in low voltage PNP
Planar Technology by using a "Base Island"
layout.
The resulting Transistor shows exceptional high
gain
performance
coupled
with
very
low
saturation voltage.
®
INTERNAL SCHEMATIC DIAGRAM
July 2002
SOT23-6L
(TSOP6)
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Value
Unit
VCBO
Collector-Base Voltage (IE = 0)
-30
V
VCEO
Collector-Emitter Voltage (IB = 0)
-30
V
VEBO
Emitter-Base Voltage (IC = 0)
-5
V
IC
Collector Current
-3
A
ICM
Collector Peak Current
-6
A
IB
Base Current
-0.2
A
IBM
Base Peak Current
-0.5
A
Ptot
Total Dissipation at TC = 25
oC
1.2
W
Tstg
Storage Temperature
-65 to 150
oC
Tj
Max. Operating Junction Temperature
150
oC
Type
Marking
STT818B
818B
1/5
