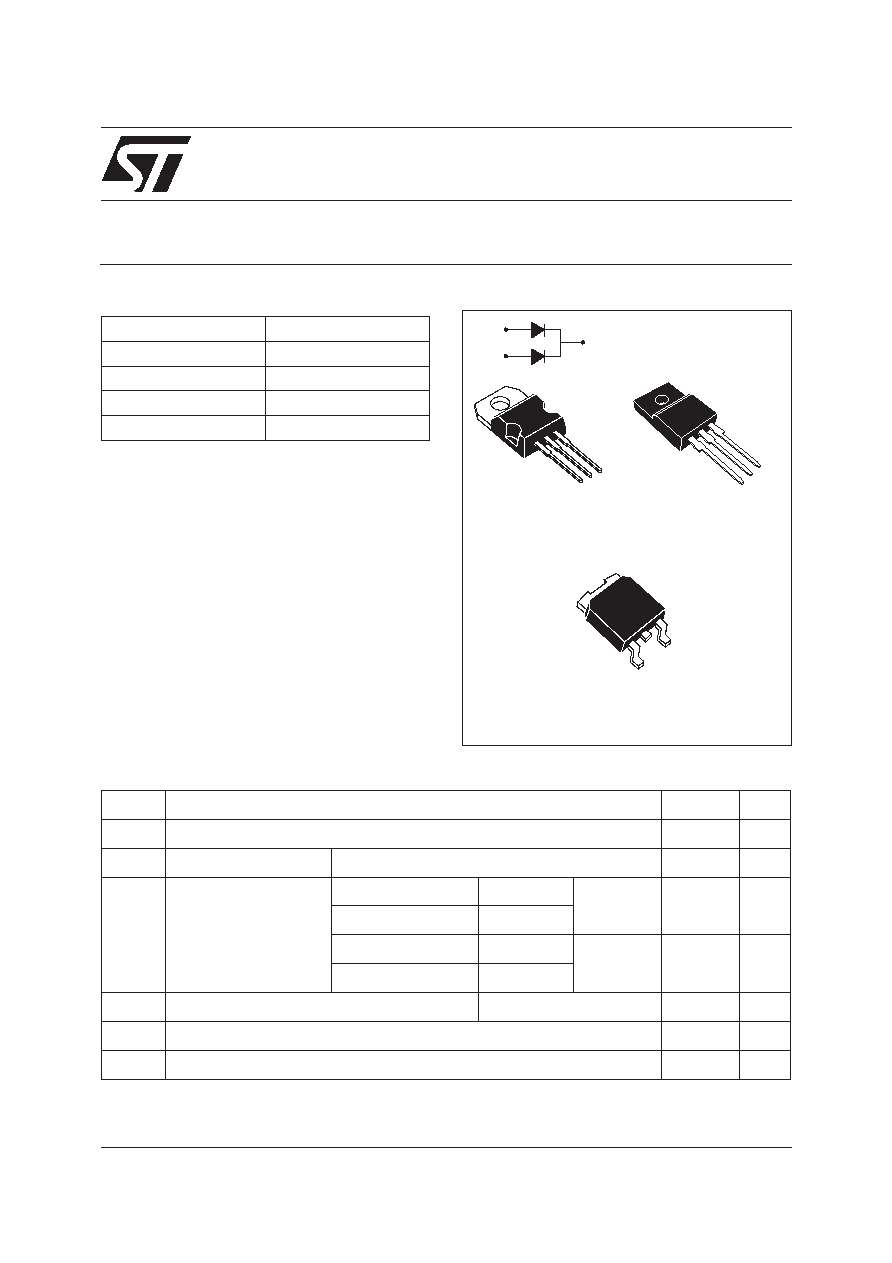

background image
1/8
STTH802CT/CB/CFP
April 2002 - Ed: 1A
HIGH EFFICIENCY ULTRAFAST DIODE
®
Dual center tap rectifier suited for Switch Mode
Power Supplies and High frequency DC to DC
converters.
Packaged in DPAK, TO-220AB or TO-220FPAB.
This device is intended for use in low voltage, high
frequency inverters, free wheeling and polarity
protection applications.
DESCRIPTION
s
Suited for SMPS
s
Low losses
s
Low forward and reverse recovery times
s
High surge current capability
s
High junction temperature
s
Insulated package: TO-220FPAB
FEATURES AND BENEFITS
Symbol
Parameter
Value
Unit
VRRM
Repetitive peak reverse voltage
200
V
IF(RMS)
RMS forward current
TO-220AB / TO-220FPAB / DPAK
10
A
IF(AV)
Average forward
current
δ =0.5
TO-220AB / DPAK
Tc = 155°C
Per diode
4
A
TO-220FPAB
Tc = 145°C
TO-220AB / DPAK
Tc = 150°C
Per device
8
A
TO-220FPAB
Tc = 130°C
IFSM
Surge non repetitive forward current
tp = 10 ms Sinusoidal
50
A
Tstg
Storage temperature range
- 65 + 175
°C
Tj
Maximum operating junction temperature
175
°C
ABSOLUTE RATINGS (limiting values)
IF(AV)
2x4A
VRRM
200 V
Tj (max)
175 °C
VF (max)
0.95 V
trr (max)
20 ns
MAIN PRODUCT CHARACTERISTICS
A1
K
A2
TO-220FPAB
STTH802CFP
TO-220AB
STTH802CT
A1
A2
K
K
K
A1
A2
DPAK
STTH802CB
A1
A2
K
